Temperature measurement and compensation. B57891S. Leaded NTC thermistors, lead spacing 2.5 mm. S891
Model Line for this Datasheet
- B57891S0102A001 B57891S0102A002 B57891S0103A002 B57891S0103A003 B57891S0103A006 B57891S0103A007 B57891S0103A009 B57891S0103A011 B57891S0103A013 B57891S0103A014 B57891S0103F008 B57891S0103G009 B57891S0103H008 B57891S0103H009 B57891S0103J008 B57891S0103J009 B57891S0103J853 B57891S0104A001 B57891S0104F008 B57891S0104G009 B57891S0104H008 B57891S0104H009 B57891S0104J008 B57891S0104J009 B57891S0122A001 B57891S0122A002 B57891S0133A001 B57891S0202A003 B57891S0203F008 B57891S0203G009 B57891S0203H008 B57891S0203H009 B57891S0203J008 B57891S0203J009 B57891S0212A007 B57891S0212A008 B57891S0212A010 B57891S0212A014 B57891S0212A016 B57891S0212A017 B57891S0212A018 B57891S0212A019 B57891S0222F008 B57891S0222G009 B57891S0222H008 B57891S0222J008 B57891S0222J009 B57891S0223J000 B57891S0252A002 B57891S0333A001 B57891S0502A001 B57891S0502F008 B57891S0502H008 B57891S0502J008 B57891S0682A001 B57891S0811A002 B57891S0871A001 B57891S0891A002 B57891S0891A003 B57891S0901A001 B57891S0901A002 B57891S103J9 B57891S1104A150 B57891S1202A001 B57891S1202A002 B57891S1212A003 B57891S1212A005 B57891S1212A007 B57891S1472A001 B57891S1472A002 B57891S1472A003
Text Version of Document

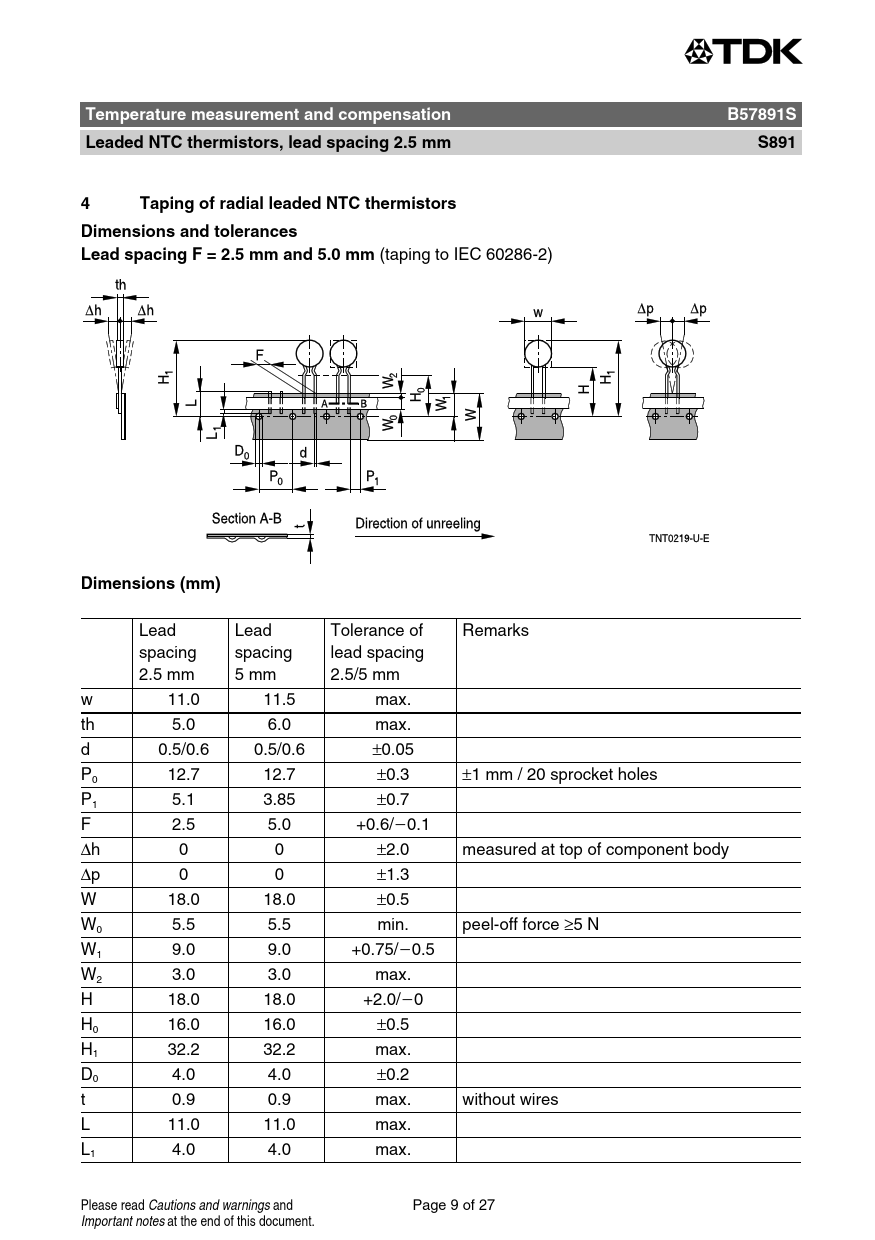

Temperature measurement and compensation B57891S Leaded NTC thermistors, lead spacing 2.5 mm S891 4 Taping of radial leaded NTC thermistors Dimensions and tolerances Lead spacing F = 2.5 mm and 5.0 mm
(taping to IEC 60286-2)
Dimensions (mm)
Lead Lead Tolerance of Remarks spacing spacing lead spacing 2.5 mm 5 mm 2.5/5 mm w 11.0 11.5 max. th 5.0 6.0 max. d 0.5/0.6 0.5/0.6 ±0.05 P0 12.7 12.7 ±0.3 ±1 mm / 20 sprocket holes P1 5.1 3.85 ±0.7 F 2.5 5.0 +0.6/0.1 ∆h 0 0 ±2.0 measured at top of component body ∆p 0 0 ±1.3 W 18.0 18.0 ±0.5 W0 5.5 5.5 min. peel-off force ≥5 N W1 9.0 9.0 +0.75/0.5 W2 3.0 3.0 max. H 18.0 18.0 +2.0/0 H0 16.0 16.0 ±0.5 H1 32.2 32.2 max. D0 4.0 4.0 ±0.2 t 0.9 0.9 max. without wires L 11.0 11.0 max. L1 4.0 4.0 max. Please read Cautions and warnings and Page 9 of 27 Important notes at the end of this document. Document Outline Cover
