Datasheet LTC7893 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 100V Low IQ, Synchronous Boost Controller for GaN FETs in 28-Lead QFN (4mm x 5mm, Plastic Side Wettable) package |
| Pages / Page | 48 / 4 — Data Sheet. LTC7893. SPECIFICATIONS Table 1. Electrical Characteristics. … |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |

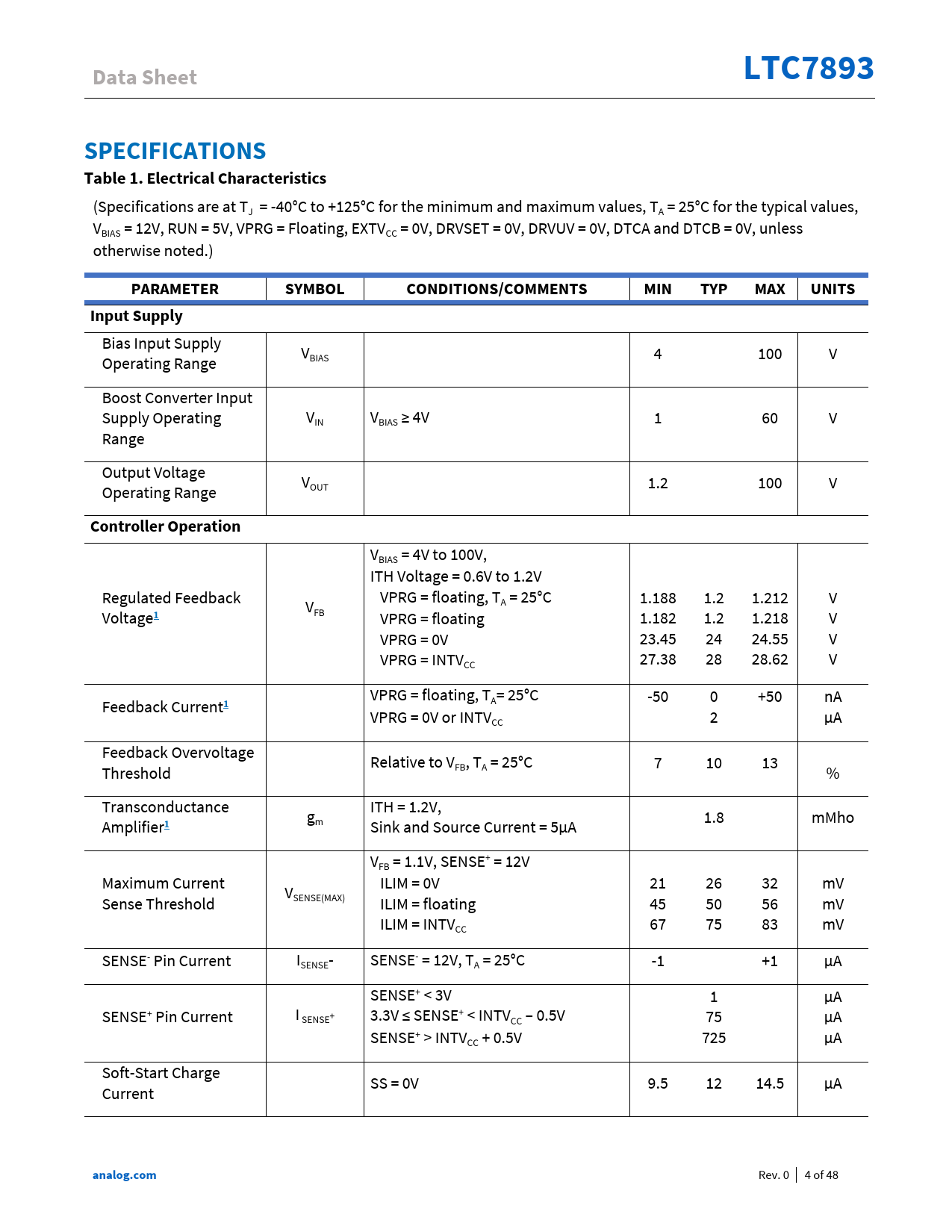

Data Sheet. LTC7893. SPECIFICATIONS Table 1. Electrical Characteristics. PARAMETER. SYMBOL. CONDITIONS/COMMENTS. MIN. TYP. MAX. UNITS
Model Line for this Datasheet
Text Version of Document
link to page 7 link to page 7 link to page 7
Data Sheet LTC7893 SPECIFICATIONS Table 1. Electrical Characteristics
(Specifications are at TJ = -40°C to +125°C for the minimum and maximum values, TA = 25°C for the typical values, VBIAS = 12V, RUN = 5V, VPRG = Floating, EXTVCC = 0V, DRVSET = 0V, DRVUV = 0V, DTCA and DTCB = 0V, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS/COMMENTS MIN TYP MAX UNITS Input Supply
Bias Input Supply V Operating Range BIAS 4 100 V Boost Converter Input Supply Operating VIN VBIAS ≥ 4V 1 60 V Range Output Voltage V Operating Range OUT 1.2 100 V
Controller Operation
VBIAS = 4V to 100V, ITH Voltage = 0.6V to 1.2V Regulated Feedback VPRG = floating, T V A = 25°C 1.188 1.2 1.212 V Voltage
1
FB VPRG = floating 1.182 1.2 1.218 V VPRG = 0V 23.45 24 24.55 V VPRG = INTVCC 27.38 28 28.62 V VPRG = floating, T -50 0 +50 nA Feedback Current
1
A= 25°C VPRG = 0V or INTVCC 2 µA Feedback Overvoltage Relative to V Threshold FB, TA = 25°C 7 10 13 % Transconductance g 1.8 mMho Amplifier
1
m ITH = 1.2V, Sink and Source Current = 5µA VFB = 1.1V, SENSE+ = 12V Maximum Current V ILIM = 0V 21 26 32 mV Sense Threshold SENSE(MAX) ILIM = floating 45 50 56 mV ILIM = INTVCC 67 75 83 mV SENSE- Pin Current ISENSE- SENSE- = 12V, TA = 25°C -1 +1 µA SENSE+ < 3V 1 µA SENSE+ Pin Current I SENSE+ 3.3V ≤ SENSE+ < INTVCC – 0.5V 75 µA SENSE+ > INTVCC + 0.5V 725 µA Soft-Start Charge SS = 0V 9.5 12 14.5 µA Current
