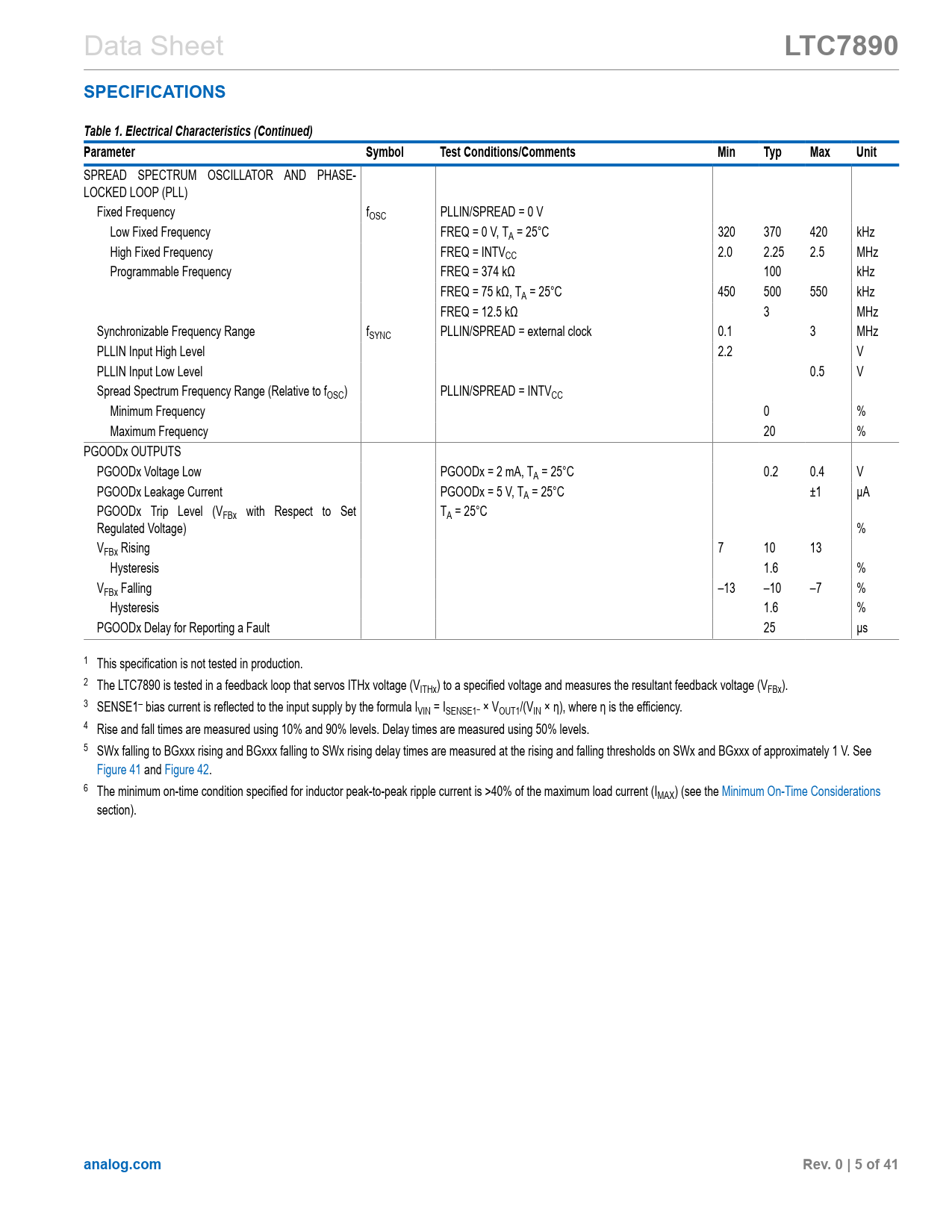

LTC7890 SPECIFICATIONS Table 1. Electrical Characteristics (Continued) Parameter Symbol Test Conditions/Comments Min Typ Max Unit
SPREAD SPECTRUM OSCILLATOR AND PHASE- LOCKED LOOP (PLL) Fixed Frequency fOSC PLLIN/SPREAD = 0 V Low Fixed Frequency FREQ = 0 V, TA = 25°C 320 370 420 kHz High Fixed Frequency FREQ = INTVCC 2.0 2.25 2.5 MHz Programmable Frequency FREQ = 374 kΩ 100 kHz FREQ = 75 kΩ, TA = 25°C 450 500 550 kHz FREQ = 12.5 kΩ 3 MHz Synchronizable Frequency Range fSYNC PLLIN/SPREAD = external clock 0.1 3 MHz PLLIN Input High Level 2.2 V PLLIN Input Low Level 0.5 V Spread Spectrum Frequency Range (Relative to fOSC) PLLIN/SPREAD = INTVCC Minimum Frequency 0 % Maximum Frequency 20 % PGOODx OUTPUTS PGOODx Voltage Low PGOODx = 2 mA, TA = 25°C 0.2 0.4 V PGOODx Leakage Current PGOODx = 5 V, TA = 25°C ±1 µA PGOODx Trip Level (VFBx with Respect to Set TA = 25°C Regulated Voltage) % VFBx Rising 7 10 13 Hysteresis 1.6 % VFBx Falling –13 –10 –7 % Hysteresis 1.6 % PGOODx Delay for Reporting a Fault 25 μs 1 This specification is not tested in production. 2 The LTC7890 is tested in a feedback loop that servos ITHx voltage (VITHx) to a specified voltage and measures the resultant feedback voltage (VFBx). 3 SENSE1– bias current is reflected to the input supply by the formula IVIN = ISENSE1– × VOUT1/(VIN × η), where η is the efficiency. 4 Rise and fall times are measured using 10% and 90% levels. Delay times are measured using 50% levels. 5 SWx falling to BGxxx rising and BGxxx falling to SWx rising delay times are measured at the rising and falling thresholds on SWx and BGxxx of approximately 1 V. See Figure 41 and Figure 42. 6 The minimum on-time condition specified for inductor peak-to-peak ripple current is >40% of the maximum load current (IMAX) (see the Minimum On-Time Considerations section).
