Datasheet NT9001 (Nisshinbo) - 3
| Manufacturer | Nisshinbo |
| Description | Diode for 1W Class Rectifier in DFN1212-4-HD package |
| Pages / Page | 15 / 3 — Datasheet. NT9001HDAE4S. ■ PIN DESCRIPTIONS. Diode1. Diode2. DFN1212-4-HD … |
| File Format / Size | PDF / 768 Kb |
| Document Language | English |

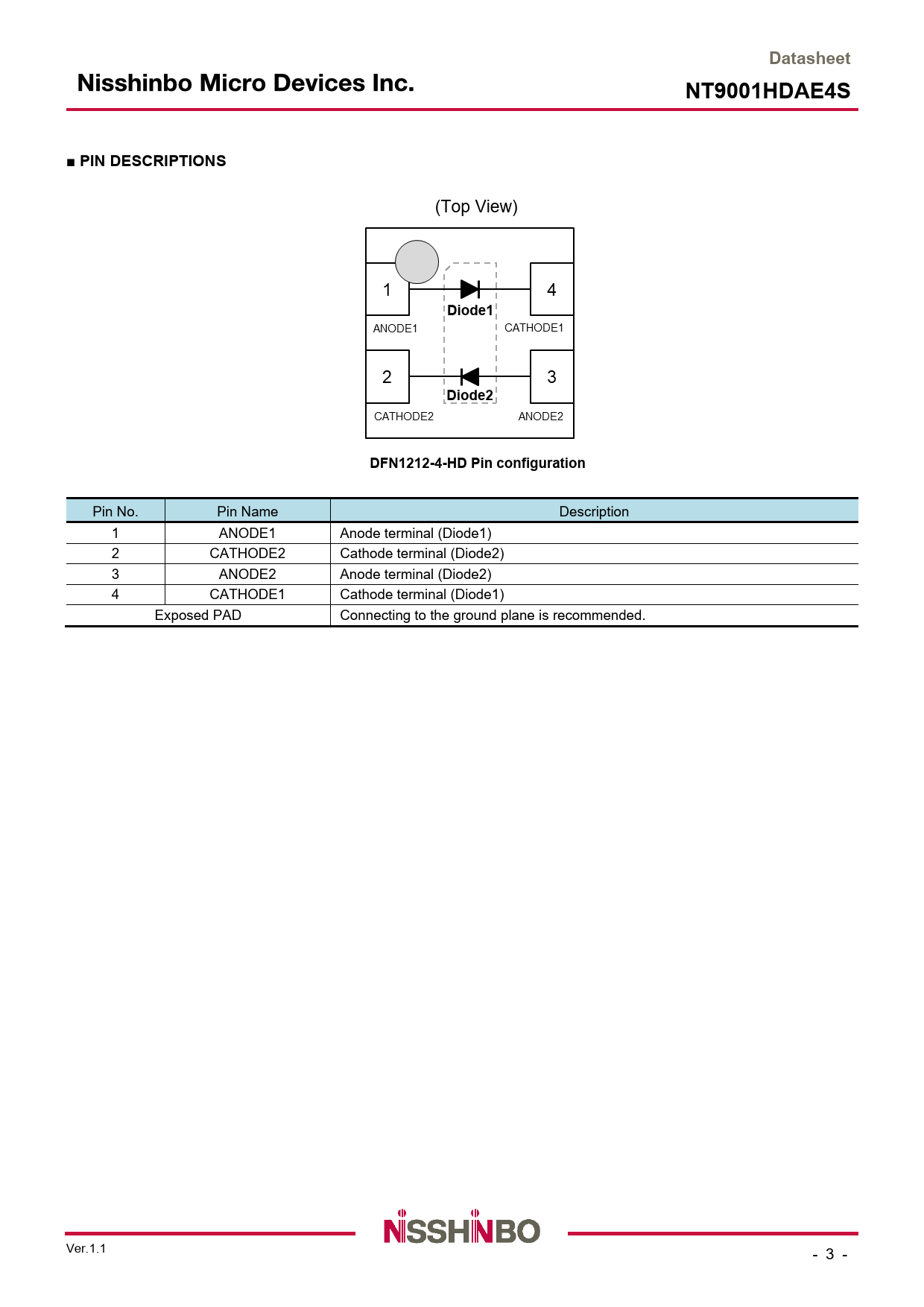

Datasheet. NT9001HDAE4S. ■ PIN DESCRIPTIONS. Diode1. Diode2. DFN1212-4-HD Pin configuration
Model Line for this Datasheet
Text Version of Document
Datasheet NT9001HDAE4S ■ PIN DESCRIPTIONS
(Top View)
Diode1 Diode2 DFN1212-4-HD Pin configuration
Pin No. Pin Name Description 1 ANODE1 Anode terminal (Diode1) 2 CATHODE2 Cathode terminal (Diode2) 3 ANODE2 Anode terminal (Diode2) 4 CATHODE1 Cathode terminal (Diode1) Exposed PAD Connecting to the ground plane is recommended. Ver.1.1 - 3 - Document Outline FEATURES GENERAL DESCRIPTION APPLICATIONS BLOCK DIAGRAM ■ PRODUCT NAME INFORMATION ■ ORDER INFORMATION ■ PIN DESCRIPTIONS ■ ABSOLUTE MAXIMUM RATINGS ■ THERMAL CHARACTERISTICS ■ ELECTROSTATIC DISCHARGE RATINGS ■ RECOMMENDED OPERATING CONDITIONS ■ ELECTRICAL CHARACTERISTICS (DC) ■ TYPICAL CHARACTERISTICS ■ SPICE MODEL ● Notes on Using the SPICE Model ■ MARKING SPECIFICATION ■ REVISION HISTORY PACKAGE INFORMATION CAUTION
