Datasheet NT9003 (Nisshinbo) - 8
| Manufacturer | Nisshinbo |
| Description | Diode for 1mW Class Rectifier in DFN1212-4-HD package |
| Pages / Page | 15 / 8 — Datasheet. NT9003HDAE4S. ■ SPICE MODEL. NT9003HDAE4S Diode model. … |
| File Format / Size | PDF / 765 Kb |
| Document Language | English |
Datasheet. NT9003HDAE4S. ■ SPICE MODEL. NT9003HDAE4S Diode model. <SPICE model Parameter>. Notes on Using the SPICE Model
Model Line for this Datasheet
Text Version of Document

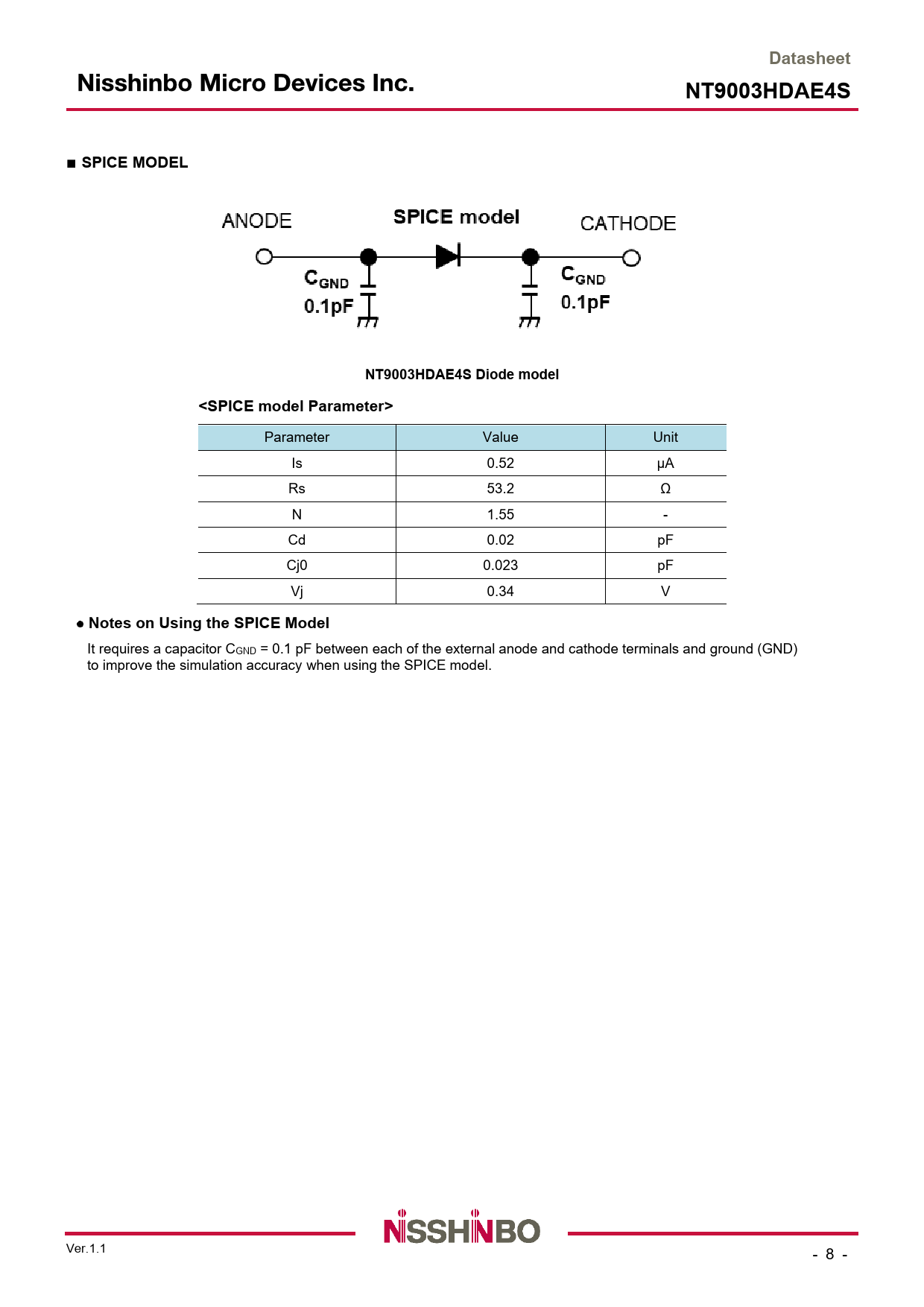

Datasheet NT9003HDAE4S ■ SPICE MODEL NT9003HDAE4S Diode model <SPICE model Parameter>
Parameter Value Unit Is 0.52 μA Rs 53.2 Ω N 1.55 - Cd 0.02 pF Cj0 0.023 pF Vj 0.34 V
Notes on Using the SPICE Model
It requires a capacitor CGND = 0.1 pF between each of the external anode and cathode terminals and ground (GND) to improve the simulation accuracy when using the SPICE model. Ver.1.1 - 8 - Document Outline FEATURES GENERAL DESCRIPTION APPLICATIONS BLOCK DIAGRAM ■ PRODUCT NAME INFORMATION ■ ORDER INFORMATION ■ PIN DESCRIPTIONS ■ ABSOLUTE MAXIMUM RATINGS ■ THERMAL CHARACTERISTICS ■ ELECTROSTATIC DISCHARGE RATINGS ■ RECOMMENDED OPERATING CONDITIONS ■ ELECTRICAL CHARACTERISTICS (DC) ■ TYPICAL CHARACTERISTICS ■ SPICE MODEL ● Notes on Using the SPICE Model ■ MARKING SPECIFICATION ■ REVISION HISTORY PACKAGE INFORMATION CAUTION
