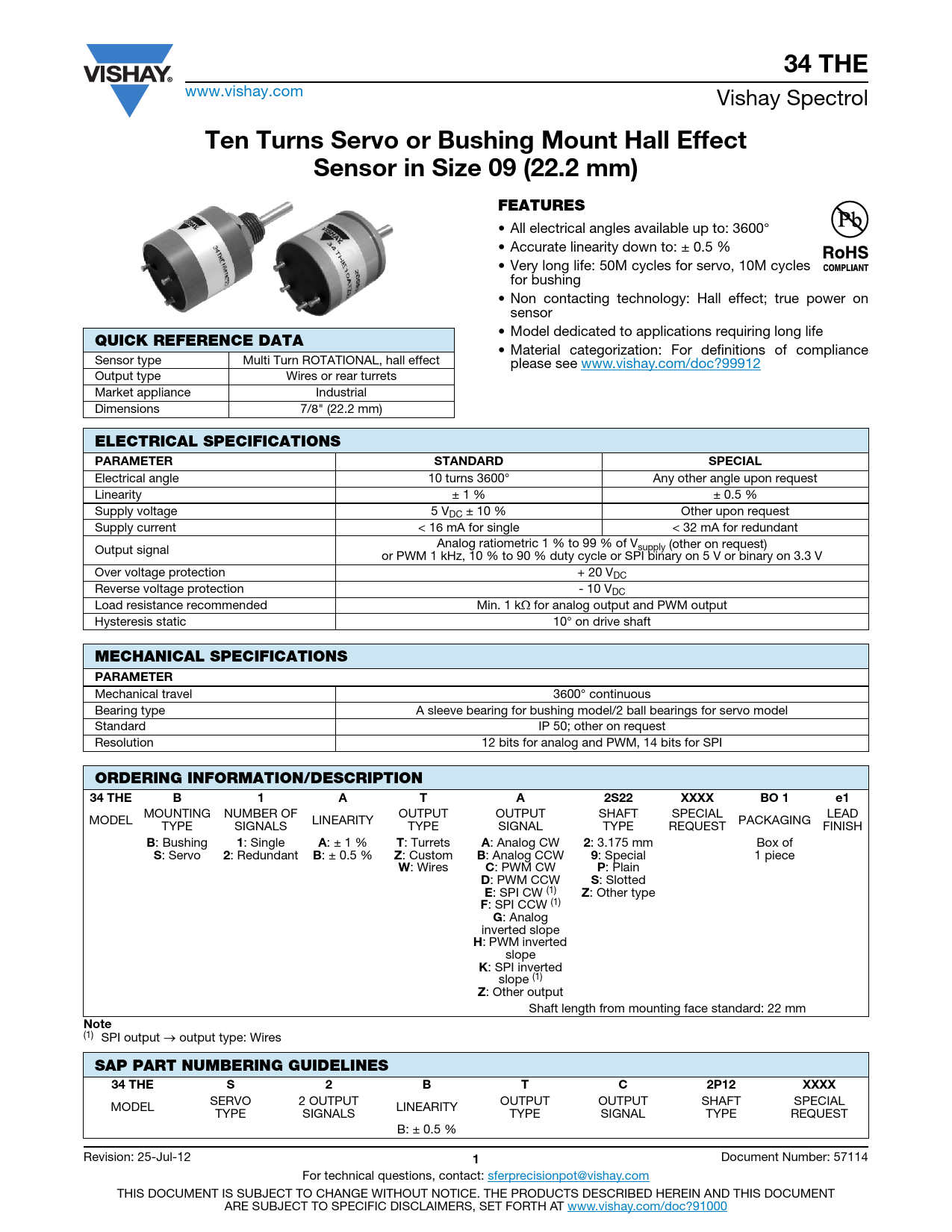

Datasheet 34 THE (Vishay)

34 THE
www.vishay.com Vishay Spectrol
Ten Turns Servo or Bushing Mount Hall Effect Sensor in Size 09 (22.2 mm) FEATURES
• All electrical angles available up to: 3600° • Accurate linearity down to: ± 0.5 % • Very long life: 50M cycles for servo, 10M cycles for bushing • Non contacting technology: Hall effect; true power on sensor • Model dedicated to applications requiring long life
QUICK REFERENCE DATA
• Material categorization: For definitions of compliance Sensor type Multi Turn ROTATIONAL, hall effect please see www.vishay.com/doc?99912 Output type Wires or rear turrets Market appliance Industrial Dimensions 7/8" (22.2 mm)
ELECTRICAL SPECIFICATIONS PARAMETER STANDARD SPECIAL
Electrical angle 10 turns 3600° Any other angle upon request Linearity ± 1 % ± 0.5 % Supply voltage 5 VDC ± 10 % Other upon request Supply current < 16 mA for single < 32 mA for redundant Analog ratiometric 1 % to 99 % of V Output signal supply (other on request) or PWM 1 kHz, 10 % to 90 % duty cycle or SPI binary on 5 V or binary on 3.3 V Over voltage protection + 20 VDC Reverse voltage protection - 10 VDC Load resistance recommended Min. 1 k for analog output and PWM output Hysteresis static 10° on drive shaft
MECHANICAL SPECIFICATIONS PARAMETER
Mechanical travel 3600° continuous Bearing type A sleeve bearing for bushing model/2 ball bearings for servo model Standard IP 50; other on request Resolution 12 bits for analog and PWM, 14 bits for SPI
ORDERING INFORMATION/DESCRIPTION 34 THE B 1 A T A 2S22 XXXX BO 1 e1
MOUNTING NUMBER OF OUTPUT OUTPUT SHAFT SPECIAL LEAD MODEL LINEARITY PACKAGING TYPE SIGNALS TYPE SIGNAL TYPE REQUEST FINISH
B
: Bushing
1
: Single
A
: ± 1 %
T
: Turrets
A
: Analog CW
2
: 3.175 mm Box of
S
: Servo
2
: Redundant
B
: ± 0.5 %
Z
: Custom
B
: Analog CCW
9
: Special 1 piece
W
: Wires
C
: PWM CW
P
: Plain
D
: PWM CCW
S
: Slotted
E
: SPI CW (1)
Z
: Other type
F
: SPI CCW (1)
G
: Analog inverted slope
H
: PWM inverted slope
K
: SPI inverted slope (1)
Z
: Other output Shaft length from mounting face standard: 22 mm
Note
(1) SPI output  output type: Wires
SAP PART NUMBERING GUIDELINES 34 THE S 2 B T C 2P12 XXXX
SERVO 2 OUTPUT OUTPUT OUTPUT SHAFT SPECIAL MODEL LINEARITY TYPE SIGNALS TYPE SIGNAL TYPE REQUEST B: ± 0.5 % Revision: 25-Jul-12
1
Document Number: 57114 For technical questions, contact: sferprecisionpot@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
