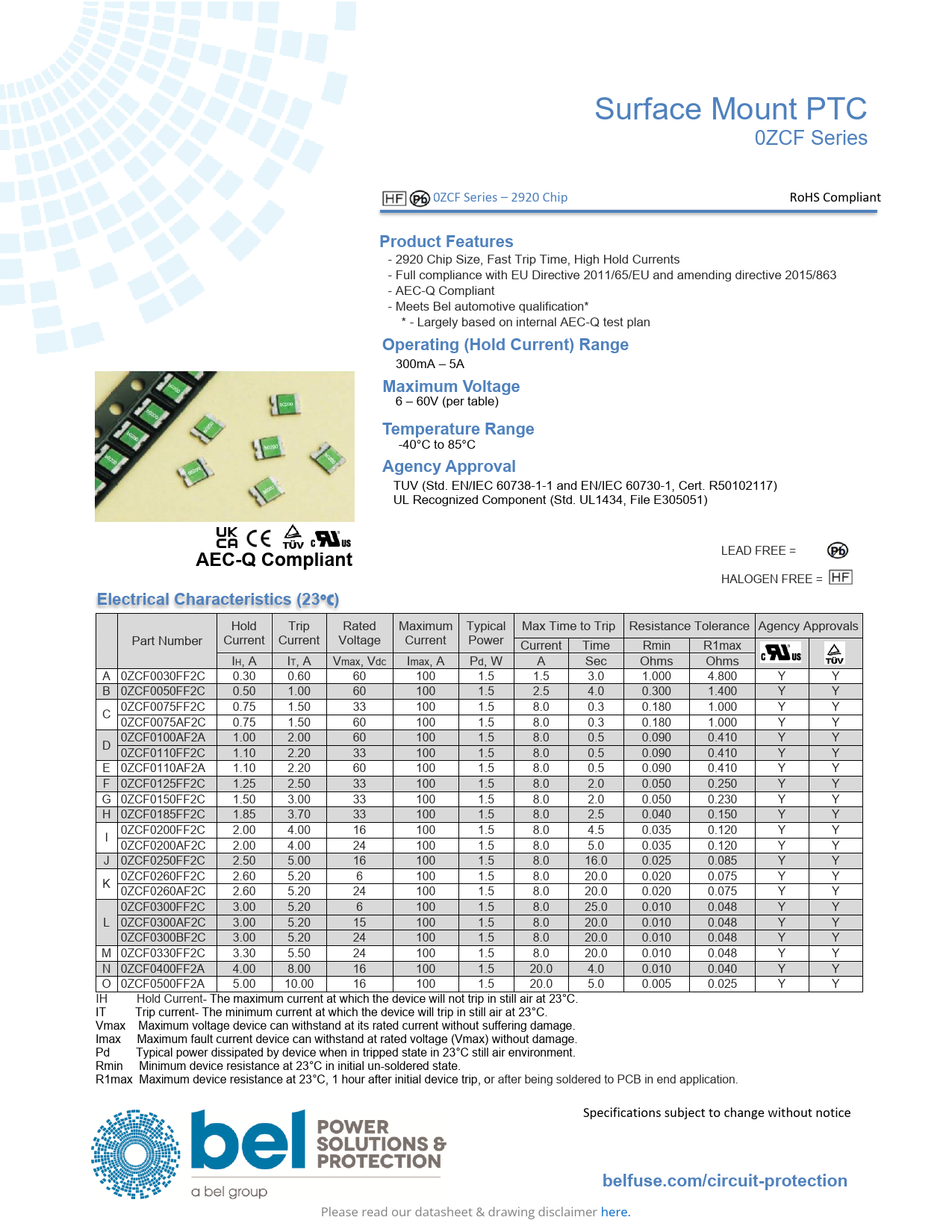

Surface Mount PTC 0ZCF Series 0ZCF Series – 2920 Chip RoHS Compliant
Product Features
- 2920 Chip Size, Fast Trip Time, High Hold Currents - Full compliance with EU Directive 2011/65/EU and amending directive 2015/863 - AEC-Q Compliant - Meets Bel automotive qualification* * - Largely based on internal AEC-Q test plan
Operating (Hold Current) Range
300mA – 5A
Maximum Voltage
6 – 60V (per table)
Temperature Range
-40°C to 85°C
Agency Approval
TUV (Std. EN/IEC 60738-1-1 and EN/IEC 60730-1, Cert. R50102117) UL Recognized Component (Std. UL1434, File E305051) LEAD FREE =
AEC-Q Compliant
HALOGEN FREE =
Electrical Characteristics (23° C)
Hold Trip Rated Maximum Typical Max Time to Trip Resistance Tolerance Agency Approvals Part Number Current Current Voltage Current Power Current Time Rmin R1max IH, A IT, A Vmax, Vdc Imax, A Pd, W A Sec Ohms Ohms A 0ZCF0030FF2C 0.30 0.60 60 100 1.5 1.5 3.0 1.000 4.800 Y Y B 0ZCF0050FF2C 0.50 1.00 60 100 1.5 2.5 4.0 0.300 1.400 Y Y 0ZCF0075FF2C 0.75 1.50 33 100 1.5 8.0 0.3 0.180 1.000 Y Y C 0ZCF0075AF2C 0.75 1.50 60 100 1.5 8.0 0.3 0.180 1.000 Y Y 0ZCF0100AF2A 1.00 2.00 60 100 1.5 8.0 0.5 0.090 0.410 Y Y D 0ZCF0110FF2C 1.10 2.20 33 100 1.5 8.0 0.5 0.090 0.410 Y Y E 0ZCF0110AF2A 1.10 2.20 60 100 1.5 8.0 0.5 0.090 0.410 Y Y F 0ZCF0125FF2C 1.25 2.50 33 100 1.5 8.0 2.0 0.050 0.250 Y Y G 0ZCF0150FF2C 1.50 3.00 33 100 1.5 8.0 2.0 0.050 0.230 Y Y H 0ZCF0185FF2C 1.85 3.70 33 100 1.5 8.0 2.5 0.040 0.150 Y Y 0ZCF0200FF2C 2.00 4.00 16 100 1.5 8.0 4.5 0.035 0.120 Y Y I 0ZCF0200AF2C 2.00 4.00 24 100 1.5 8.0 5.0 0.035 0.120 Y Y J 0ZCF0250FF2C 2.50 5.00 16 100 1.5 8.0 16.0 0.025 0.085 Y Y 0ZCF0260FF2C 2.60 5.20 6 100 1.5 8.0 20.0 0.020 0.075 Y Y K 0ZCF0260AF2C 2.60 5.20 24 100 1.5 8.0 20.0 0.020 0.075 Y Y 0ZCF0300FF2C 3.00 5.20 6 100 1.5 8.0 25.0 0.010 0.048 Y Y L 0ZCF0300AF2C 3.00 5.20 15 100 1.5 8.0 20.0 0.010 0.048 Y Y 0ZCF0300BF2C 3.00 5.20 24 100 1.5 8.0 20.0 0.010 0.048 Y Y M 0ZCF0330FF2C 3.30 5.50 24 100 1.5 8.0 20.0 0.010 0.048 Y Y N 0ZCF0400FF2A 4.00 8.00 16 100 1.5 20.0 4.0 0.010 0.040 Y Y O 0ZCF0500FF2A 5.00 10.00 16 100 1.5 20.0 5.0 0.005 0.025 Y Y IH Hold Current- The maximum current at which the device will not trip in still air at 23°C. IT Trip current- The minimum current at which the device will trip in still air at 23°C. Vmax Maximum voltage device can withstand at its rated current without suffering damage. Imax Maximum fault current device can withstand at rated voltage (Vmax) without damage. Pd Typical power dissipated by device when in tripped state in 23°C still air environment. Rmin Minimum device resistance at 23°C in initial un-soldered state. R1max Maximum device resistance at 23°C, 1 hour after initial device trip, or after being soldered to PCB in end application. Specifications subject to change without notice
belfuse.com/circuit-protection
