Datasheet 1N5615GP, 1N5617GP, 1N5619GP, 1N5621GP, 1N5623GP (Vishay)

ManufacturerVishay
DescriptionGlass Passivated Junction Fast Switching Plastic Rectifier 400V 1A in DO-15 (DO-204AC) package
Pages / Page5 / 1 — Not for New Designs. FEATURES. TYPICAL APPLICATIONS. PRIMARY …
File Format / SizePDF / 71 Kb
Document LanguageEnglish

Not for New Designs. FEATURES. TYPICAL APPLICATIONS. PRIMARY CHARACTERISTICS. MECHANICAL DATA. MAXIMUM RATINGS

Datasheet 1N5615GP, 1N5617GP, 1N5619GP, 1N5621GP, 1N5623GP Vishay

Model Line for this Datasheet

Text Version of Document

Not for New Designs

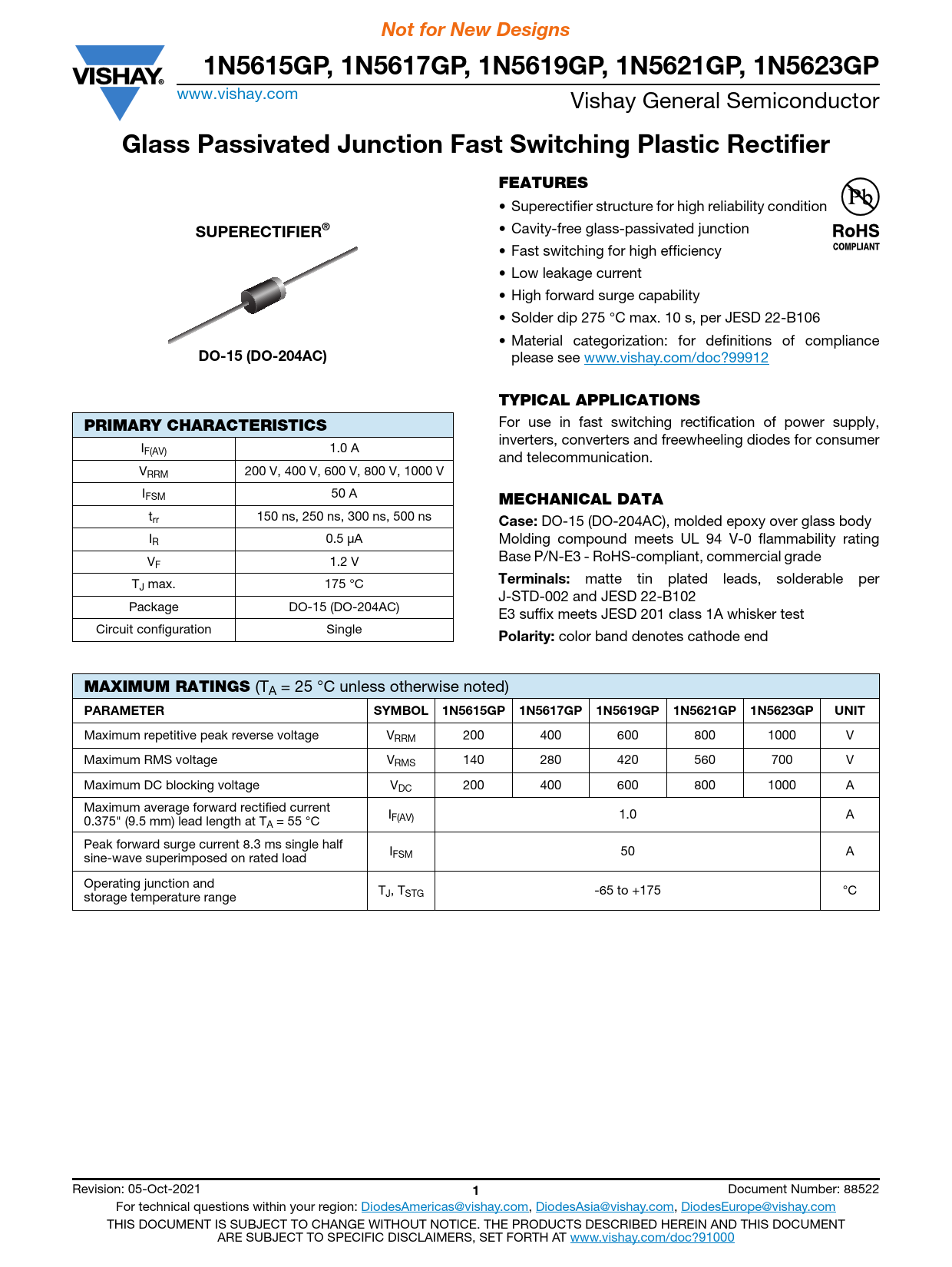

1N5615GP, 1N5617GP, 1N5619GP, 1N5621GP, 1N5623GP www.vishay.com Vishay General Semiconductor Glass Passivated Junction Fast Switching Plastic Rectifier
FEATURES
• Superectifier structure for high reliability condition • Cavity-free glass-passivated junction SUPERECTIFIER® • Fast switching for high efficiency • Low leakage current • High forward surge capability • Solder dip 275 °C max. 10 s, per JESD 22-B106 • Material categorization: for definitions of compliance DO-15 (DO-204AC) please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in fast switching rectification of power supply,
PRIMARY CHARACTERISTICS
inverters, converters and freewheeling diodes for consumer IF(AV) 1.0 A and telecommunication. VRRM 200 V, 400 V, 600 V, 800 V, 1000 V IFSM 50 A
MECHANICAL DATA
trr 150 ns, 250 ns, 300 ns, 500 ns Case: DO-15 (DO-204AC), molded epoxy over glass body IR 0.5 μA Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade VF 1.2 V Terminals: matte tin plated leads, solderable per TJ max. 175 °C J-STD-002 and JESD 22-B102 Package DO-15 (DO-204AC) E3 suffix meets JESD 201 class 1A whisker test Circuit configuration Single Polarity: color band denotes cathode end
MAXIMUM RATINGS
(TA = 25 °C unless otherwise noted) PARAMETER SYMBOL 1N5615GP 1N5617GP 1N5619GP 1N5621GP 1N5623GP UNIT Maximum repetitive peak reverse voltage VRRM 200 400 600 800 1000 V Maximum RMS voltage VRMS 140 280 420 560 700 V Maximum DC blocking voltage VDC 200 400 600 800 1000 A Maximum average forward rectified current I 0.375" (9.5 mm) lead length at T F(AV) 1.0 A A = 55 °C Peak forward surge current 8.3 ms single half I sine-wave superimposed on rated load FSM 50 A Operating junction and T storage temperature range J, TSTG -65 to +175 °C Revision: 05-Oct-2021 1 Document Number: 88522 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
