Datasheet 1N5615GP, 1N5617GP, 1N5619GP, 1N5621GP, 1N5623GP (Vishay) - 2
| Manufacturer | Vishay |
| Description | Glass Passivated Junction Fast Switching Plastic Rectifier 400V 1A in DO-15 (DO-204AC) package |
| Pages / Page | 5 / 2 — Not for New Designs. ELECTRICAL CHARACTERISTICS. THERMAL CHARACTERISTICS. … |
| File Format / Size | PDF / 71 Kb |
| Document Language | English |

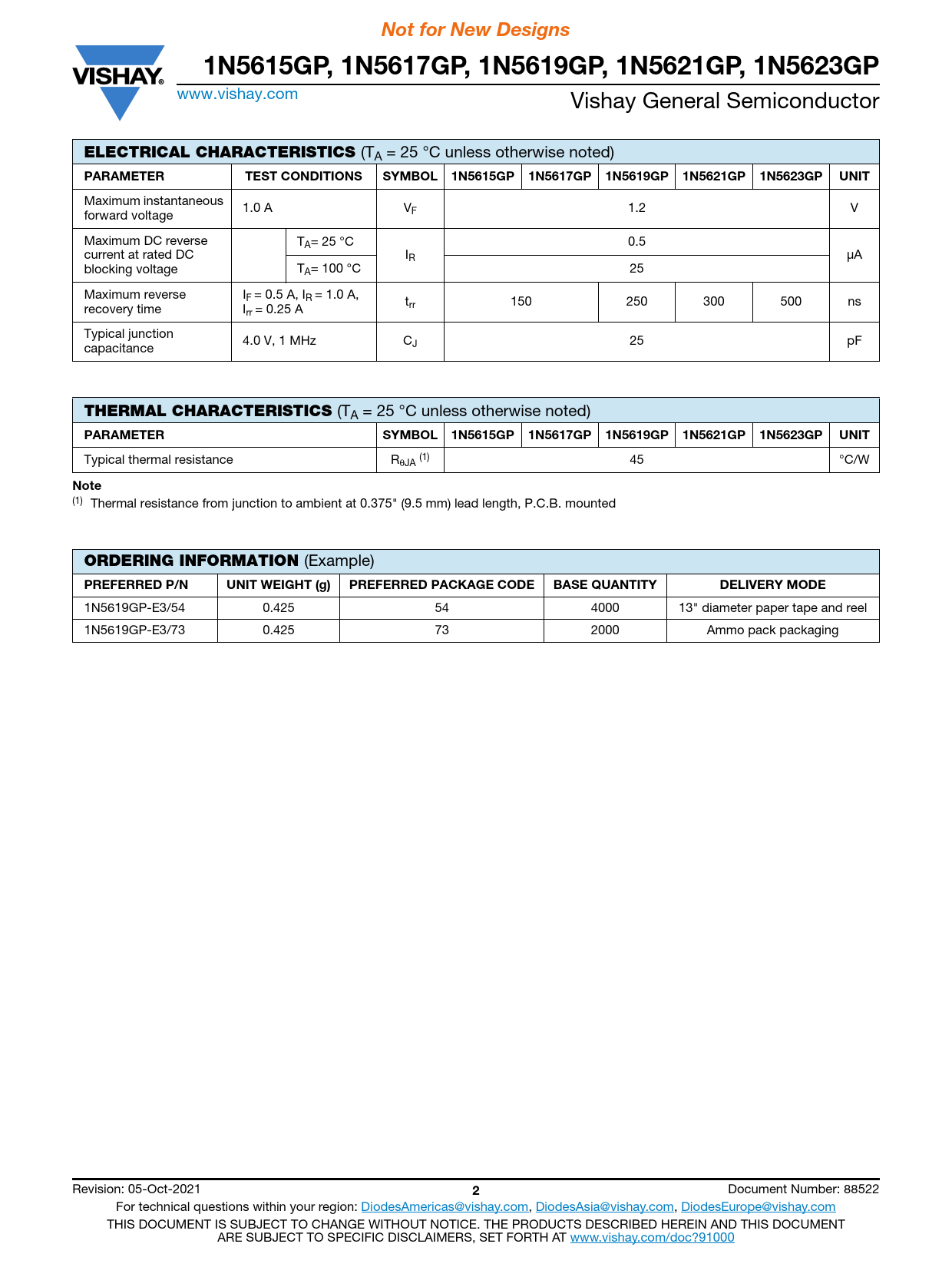

Not for New Designs. ELECTRICAL CHARACTERISTICS. THERMAL CHARACTERISTICS. ORDERING INFORMATION
Model Line for this Datasheet
Text Version of Document
Not for New Designs
1N5615GP, 1N5617GP, 1N5619GP, 1N5621GP, 1N5623GP www.vishay.com Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted) PARAMETER TEST CONDITIONS SYMBOL 1N5615GP 1N5617GP 1N5619GP 1N5621GP 1N5623GP UNIT Maximum instantaneous 1.0 A V forward voltage F 1.2 V Maximum DC reverse TA= 25 °C 0.5 current at rated DC IR μA blocking voltage TA= 100 °C 25 Maximum reverse IF = 0.5 A, IR = 1.0 A, t recovery time I rr 150 250 300 500 ns rr = 0.25 A Typical junction 4.0 V, 1 MHz C capacitance J 25 pF
THERMAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted) PARAMETER SYMBOL 1N5615GP 1N5617GP 1N5619GP 1N5621GP 1N5623GP UNIT Typical thermal resistance RθJA (1) 45 °C/W Note (1) Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length, P.C.B. mounted
ORDERING INFORMATION
(Example) PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE 1N5619GP-E3/54 0.425 54 4000 13" diameter paper tape and reel 1N5619GP-E3/73 0.425 73 2000 Ammo pack packaging Revision: 05-Oct-2021 2 Document Number: 88522 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
