Datasheet 1N5615GP, 1N5617GP, 1N5619GP, 1N5621GP, 1N5623GP (Vishay) - 4
| Manufacturer | Vishay |
| Description | Glass Passivated Junction Fast Switching Plastic Rectifier 400V 1A in DO-15 (DO-204AC) package |
| Pages / Page | 5 / 4 — Not for New Designs. PACKAGE OUTLINE DIMENSIONS |
| File Format / Size | PDF / 71 Kb |
| Document Language | English |
Not for New Designs. PACKAGE OUTLINE DIMENSIONS
Model Line for this Datasheet
Text Version of Document
Not for New Designs
1N5615GP, 1N5617GP, 1N5619GP, 1N5621GP, 1N5623GP www.vishay.com Vishay General Semiconductor

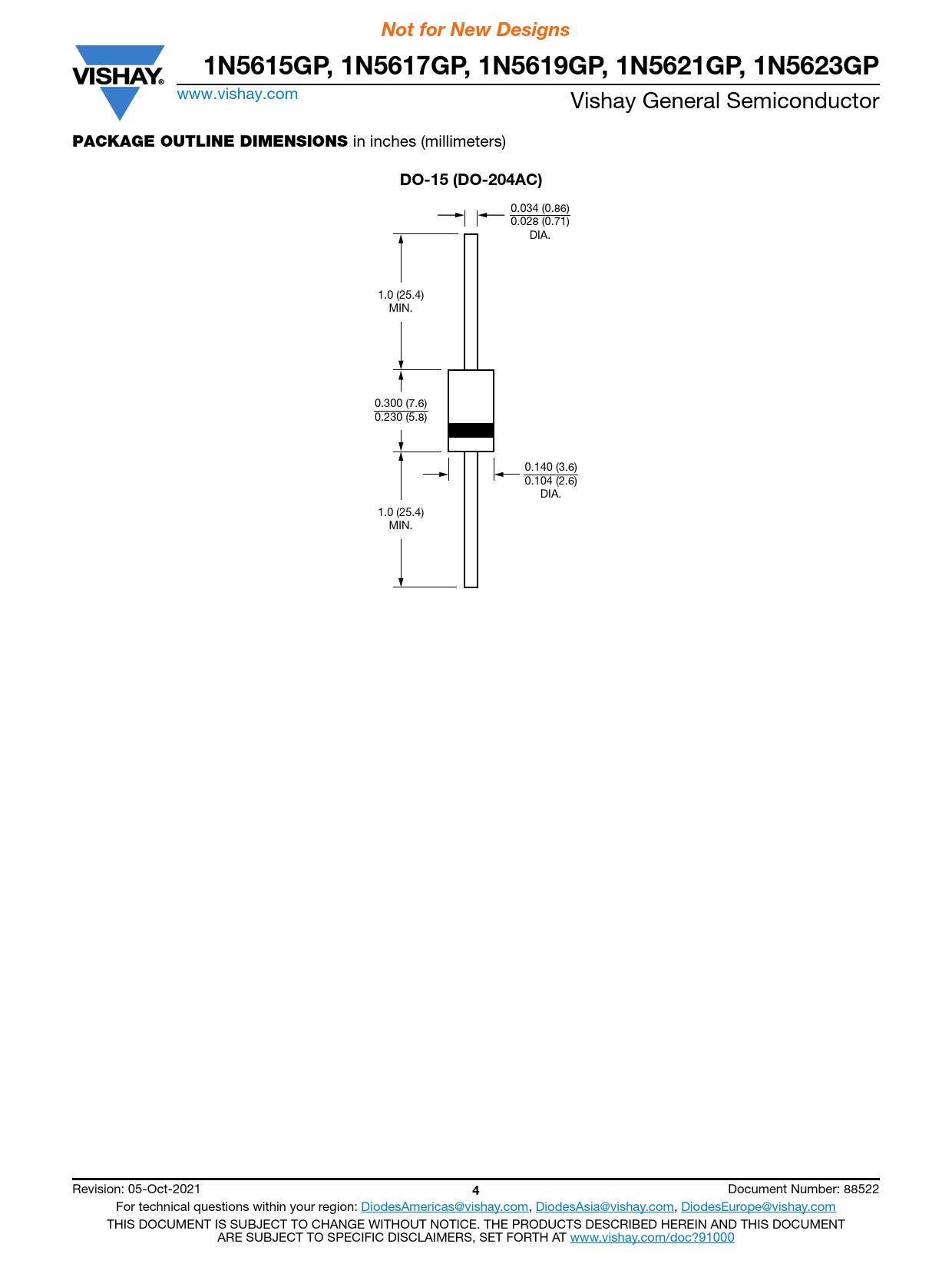

PACKAGE OUTLINE DIMENSIONS
in inches (millimeters) DO-15 (DO-204AC) 0.034 (0.86) 0.028 (0.71) DIA. 1.0 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) 0.140 (3.6) 0.104 (2.6) DIA. 1.0 (25.4) MIN. Revision: 05-Oct-2021 4 Document Number: 88522 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
1N5615GP, 1N5617GP, 1N5619GP, 1N5621GP, 1N5623GP www.vishay.com Vishay General Semiconductor
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters) DO-15 (DO-204AC) 0.034 (0.86) 0.028 (0.71) DIA. 1.0 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) 0.140 (3.6) 0.104 (2.6) DIA. 1.0 (25.4) MIN. Revision: 05-Oct-2021 4 Document Number: 88522 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
