Datasheet SS32 - SS320 (Taiwan Semiconductor) - 2
| Manufacturer | Taiwan Semiconductor |
| Description | 3A, 100V Schottky Barrier Surface Mount Rectifier in DO-214AB (SMC) package |
| Pages / Page | 8 / 2 — SS32 – SS320. THERMAL PERFORMANCE. PARAMETER. SYMBOL. TYP. UNIT. Thermal … |
| File Format / Size | PDF / 552 Kb |
| Document Language | English |

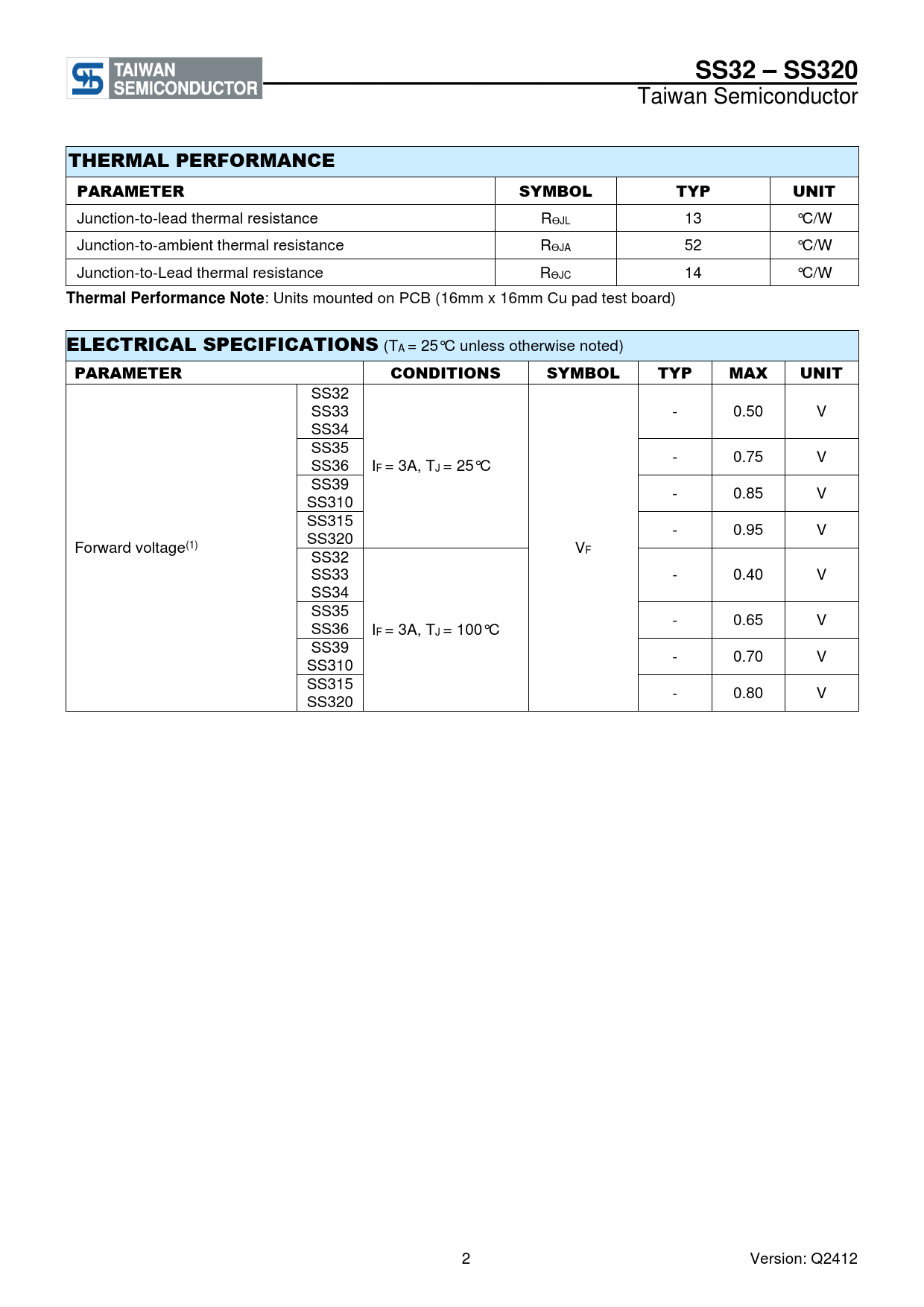

SS32 – SS320. THERMAL PERFORMANCE. PARAMETER. SYMBOL. TYP. UNIT. Thermal Performance Note. ELECTRICAL SPECIFICATIONS. CONDITIONS. MAX
Model Line for this Datasheet
Text Version of Document
SS32 – SS320
Taiwan Semiconductor
THERMAL PERFORMANCE PARAMETER SYMBOL TYP UNIT
Junction-to-lead thermal resistance RӨJL 13 °C/W Junction-to-ambient thermal resistance RӨJA 52 °C/W Junction-to-Lead thermal resistance RӨJC 14 °C/W
Thermal Performance Note
: Units mounted on PCB (16mm x 16mm Cu pad test board)
ELECTRICAL SPECIFICATIONS
(TA = 25°C unless otherwise noted)
PARAMETER CONDITIONS SYMBOL TYP MAX UNIT
SS32 SS33 - 0.50 V SS34 SS35 - 0.75 V SS36 IF = 3A, TJ = 25°C SS39 - 0.85 V SS310 SS315 - 0.95 V SS320 Forward voltage(1) VF SS32 SS33 - 0.40 V SS34 SS35 - 0.65 V SS36 IF = 3A, TJ = 100°C SS39 - 0.70 V SS310 SS315 - 0.80 V SS320 2 Version: Q2412
