Datasheet TLVx197-Q1: TLV197-Q1, TLV2197-Q1, TLV4197-Q1 (Texas Instruments)
| Manufacturer | Texas Instruments |
| Description | Automotive, single channel, high-voltage, precision, RRIO op amp in VSSOP-8 package |
| Pages / Page | 43 / 1 — TLV197-Q1. , TLV2197-Q1. , TLV4197-Q1 |
| File Format / Size | PDF / 2.0 Mb |
| Document Language | English |
TLV197-Q1. , TLV2197-Q1. , TLV4197-Q1
Model Line for this Datasheet
Text Version of Document
link to page 31 link to page 31 link to page 31 link to page 31 link to page 31 Product Order Technical Tools & Support & Folder Now Documents Software Community
TLV197-Q1 , TLV2197-Q1 , TLV4197-Q1
SBOS935B – APRIL 2020 – REVISED JULY 2020

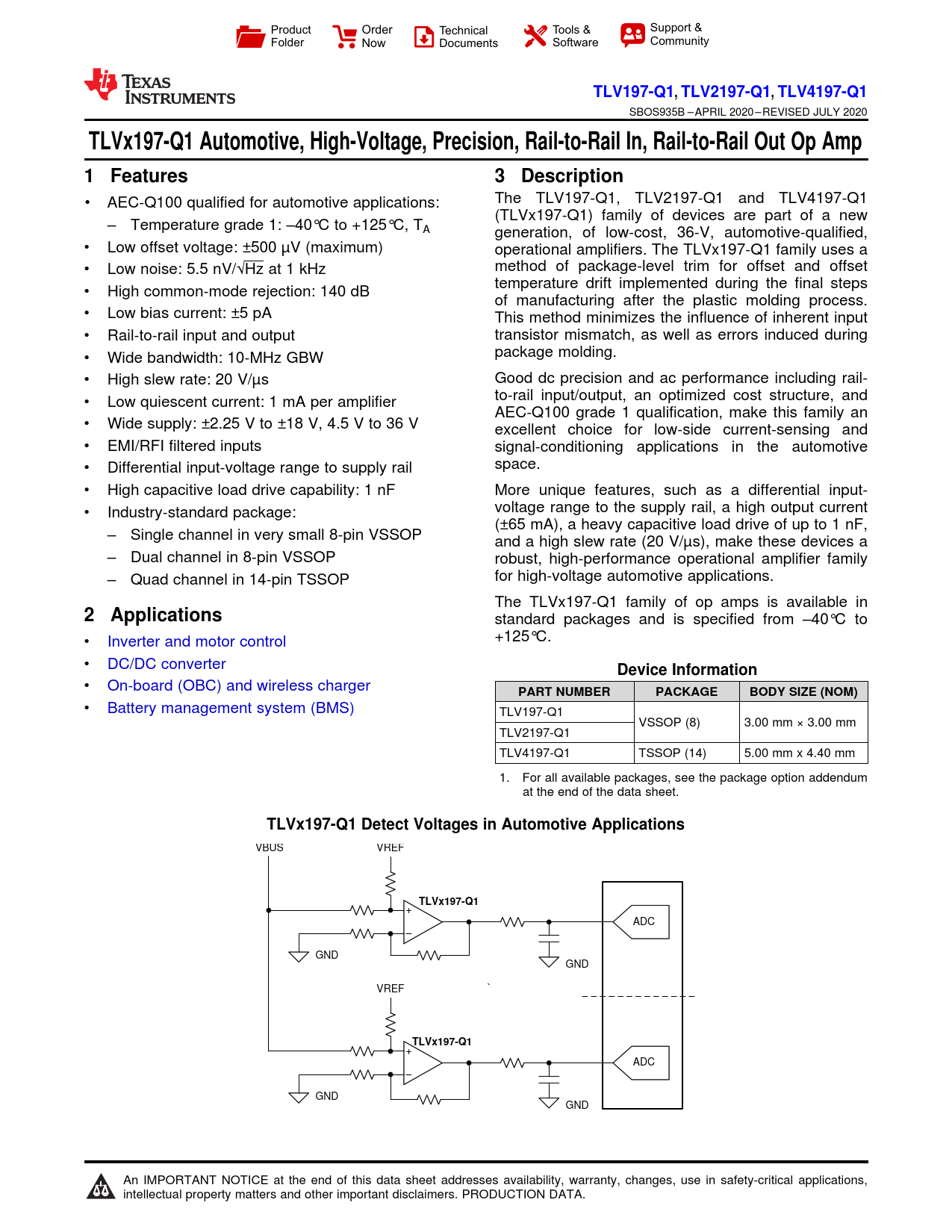

TLVx197-Q1 Automotive, High-Voltage, Precision, Rail-to-Rail In, Rail-to-Rail Out Op Amp 1 Features 3 Description
• AEC-Q100 qualified for automotive applications: The TLV197-Q1, TLV2197-Q1 and TLV4197-Q1 1 (TLVx197-Q1) family of devices are part of a new – Temperature grade 1: –40°C to +125°C, TA generation, of low-cost, 36-V, automotive-qualified, • Low offset voltage: ±500 µV (maximum) operational amplifiers. The TLVx197-Q1 family uses a • Low noise: 5.5 nV/√Hz at 1 kHz method of package-level trim for offset and offset temperature drift implemented during the final steps • High common-mode rejection: 140 dB of manufacturing after the plastic molding process. • Low bias current: ±5 pA This method minimizes the influence of inherent input • Rail-to-rail input and output transistor mismatch, as well as errors induced during • Wide bandwidth: 10-MHz GBW package molding. • High slew rate: 20 V/µs Good dc precision and ac performance including rail- • Low quiescent current: 1 mA per amplifier to-rail input/output, an optimized cost structure, and AEC-Q100 grade 1 qualification, make this family an • Wide supply: ±2.25 V to ±18 V, 4.5 V to 36 V excellent choice for low-side current-sensing and • EMI/RFI filtered inputs signal-conditioning applications in the automotive • Differential input-voltage range to supply rail space. • High capacitive load drive capability: 1 nF More unique features, such as a differential input- • Industry-standard package: voltage range to the supply rail, a high output current (±65 mA), a heavy capacitive load drive of up to 1 nF, – Single channel in very small 8-pin VSSOP and a high slew rate (20 V/µs), make these devices a – Dual channel in 8-pin VSSOP robust, high-performance operational amplifier family – Quad channel in 14-pin TSSOP for high-voltage automotive applications. The TLVx197-Q1 family of op amps is available in
2 Applications
standard packages and is specified from –40°C to • Inverter and motor control +125°C. • DC/DC converter
Device Information
• On-board (OBC) and wireless charger
PART NUMBER PACKAGE BODY SIZE (NOM)
• Battery management system (BMS) TLV197-Q1 VSSOP (8) 3.00 mm × 3.00 mm TLV2197-Q1 TLV4197-Q1 TSSOP (14) 5.00 mm x 4.40 mm 1. For all available packages, see the package option addendum at the end of the data sheet.
TLVx197-Q1 Detect Voltages in Automotive Applications
VBUS VREF
TLVx197-Q1
+ ADC ± GND GND VREF `
TLVx197-Q1
+ ADC ± GND GND 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information: TLV197-Q1 6.5 Thermal Information: TLV2197-Q1 6.6 Thermal Information: TLV4197-Q1 6.7 Electrical Characteristics: VS = ±4 V to ±18 V (VS = 8 V to 36 V) 6.8 Electrical Characteristics: VS = ±2.25 V to ±4 V (VS = 4.5 V to 8 V) 6.9 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 Input Protection Circuitry 7.3.2 EMI Rejection 7.3.3 Phase Reversal Protection 7.3.4 Thermal Protection 7.3.5 Capacitive Load and Stability 7.3.6 Common-Mode Voltage Range 7.3.7 Electrical Overstress 7.3.8 Overload Recovery 7.4 Device Functional Modes 8 Application and Implementation 8.1 Application Information 8.2 Typical Applications 8.2.1 16-Bit Precision Multiplexed Data-Acquisition System 8.2.1.1 Design Requirements 8.2.1.2 Detailed Design Procedure 8.2.1.3 Application Curve 8.2.2 Slew-Rate Limit for Input Protection 8.2.3 Precision Reference Buffer 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Examples 11 Device and Documentation Support 11.1 Device Support 11.1.1 Development Support 11.1.1.1 TINA-TI (Free Software Download) 11.2 Documentation Support 11.2.1 Related Documentation 11.3 Related Links 11.4 Receiving Notification of Documentation Updates 11.5 Support Resources 11.6 Trademarks 11.7 Electrostatic Discharge Caution 11.8 Glossary 12 Mechanical, Packaging, and Orderable Information
