Datasheet TLVx197-Q1: TLV197-Q1, TLV2197-Q1, TLV4197-Q1 (Texas Instruments) - 6

TLV197-Q1 , TLV2197-Q1 , TLV4197-Q1
SBOS935B – APRIL 2020 – REVISED JULY 2020

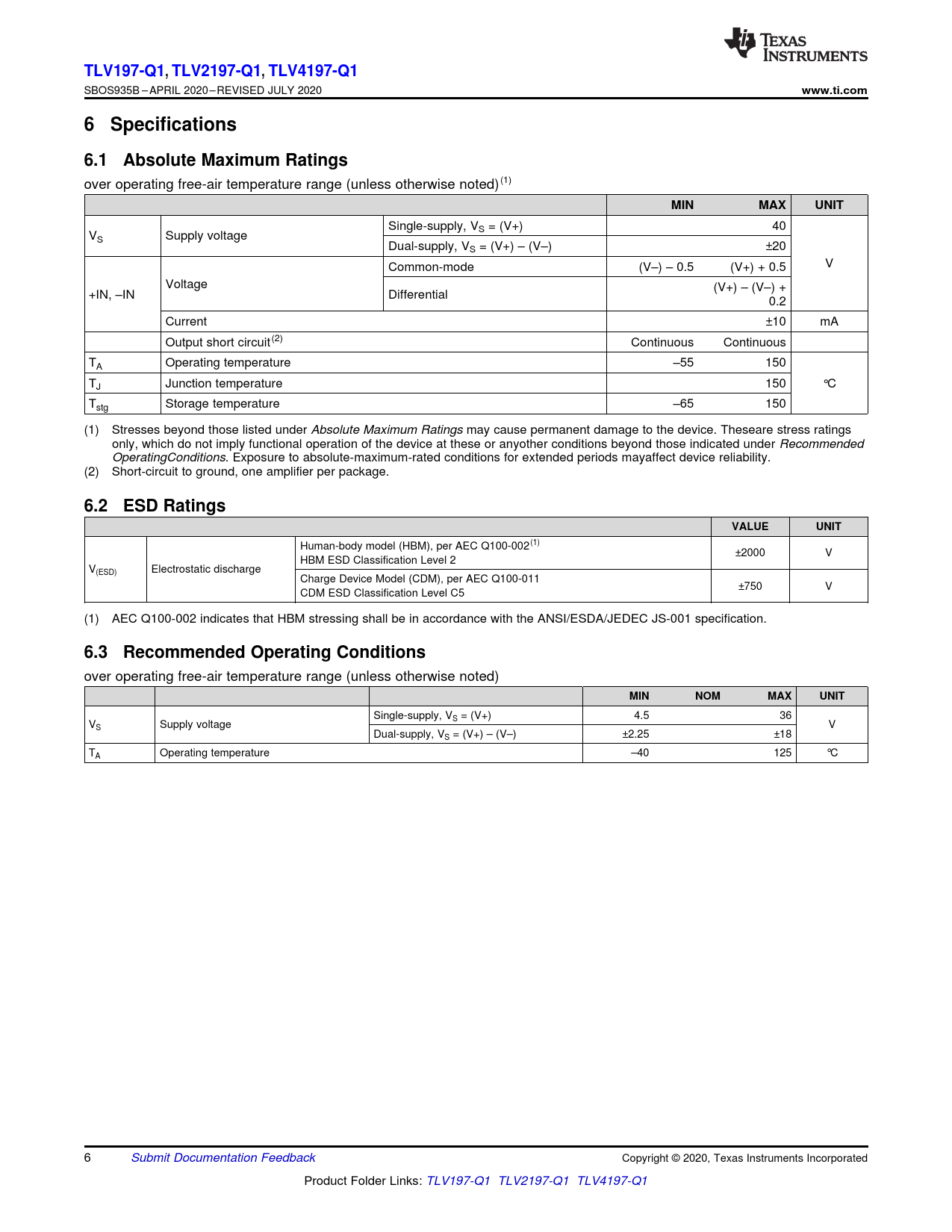

www.ti.com 6 Specifications 6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Single-supply, VS = (V+) 40 VS Supply voltage Dual-supply, VS = (V+) – (V–) ±20 V Common-mode (V–) – 0.5 (V+) + 0.5 Voltage (V+) – (V–) + +IN, –IN Differential 0.2 Current ±10 mA Output short circuit(2) Continuous Continuous TA Operating temperature –55 150 T °C J Junction temperature 150 Tstg Storage temperature –65 150 (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Theseare stress ratings only, which do not imply functional operation of the device at these or anyother conditions beyond those indicated under Recommended OperatingConditions. Exposure to absolute-maximum-rated conditions for extended periods mayaffect device reliability. (2) Short-circuit to ground, one amplifier per package.
6.2 ESD Ratings VALUE UNIT
Human-body model (HBM), per AEC Q100-002(1) ±2000 V HBM ESD Classification Level 2 V(ESD) Electrostatic discharge Charge Device Model (CDM), per AEC Q100-011 ±750 V CDM ESD Classification Level C5 (1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Single-supply, VS = (V+) 4.5 36 VS Supply voltage V Dual-supply, VS = (V+) – (V–) ±2.25 ±18 TA Operating temperature –40 125 °C 6 Submit Documentation Feedback Copyright © 2020, Texas Instruments Incorporated Product Folder Links: TLV197-Q1 TLV2197-Q1 TLV4197-Q1 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information: TLV197-Q1 6.5 Thermal Information: TLV2197-Q1 6.6 Thermal Information: TLV4197-Q1 6.7 Electrical Characteristics: VS = ±4 V to ±18 V (VS = 8 V to 36 V) 6.8 Electrical Characteristics: VS = ±2.25 V to ±4 V (VS = 4.5 V to 8 V) 6.9 Typical Characteristics 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.3.1 Input Protection Circuitry 7.3.2 EMI Rejection 7.3.3 Phase Reversal Protection 7.3.4 Thermal Protection 7.3.5 Capacitive Load and Stability 7.3.6 Common-Mode Voltage Range 7.3.7 Electrical Overstress 7.3.8 Overload Recovery 7.4 Device Functional Modes 8 Application and Implementation 8.1 Application Information 8.2 Typical Applications 8.2.1 16-Bit Precision Multiplexed Data-Acquisition System 8.2.1.1 Design Requirements 8.2.1.2 Detailed Design Procedure 8.2.1.3 Application Curve 8.2.2 Slew-Rate Limit for Input Protection 8.2.3 Precision Reference Buffer 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Examples 11 Device and Documentation Support 11.1 Device Support 11.1.1 Development Support 11.1.1.1 TINA-TI (Free Software Download) 11.2 Documentation Support 11.2.1 Related Documentation 11.3 Related Links 11.4 Receiving Notification of Documentation Updates 11.5 Support Resources 11.6 Trademarks 11.7 Electrostatic Discharge Caution 11.8 Glossary 12 Mechanical, Packaging, and Orderable Information
