| Description | Small Signal Zener Diodes in DO-35 (DO-204AH) package |
| Pages / Page | 7 / 2 — TZX-Series. ELECTRICAL CHARACTERISTICS. ZENER VOLTAGE. DYNAMIC. TEST … |
| File Format / Size | PDF / 125 Kb |
| Document Language | English |
TZX-Series. ELECTRICAL CHARACTERISTICS. ZENER VOLTAGE. DYNAMIC. TEST CURRENT. REVERSE LEAKAGE CURRENT. RANGE. RESISTANCE. PART NUMBER
Model Line for this Datasheet
- TZX10A-TAP TZX10A-TR TZX10B-TAP TZX10B-TR TZX10C-TAP TZX10C-TR TZX10D-TAP TZX10D-TR TZX11A-TAP TZX11A-TR TZX11B-TAP TZX11B-TR TZX11C-TAP TZX11C-TR TZX11D-TAP TZX11D-TR TZX12A-TAP TZX12A-TR TZX12B-TAP TZX12B-TR TZX12C-TAP TZX12C-TR TZX12D-TAP TZX12D-TR TZX12X-TAP TZX13A-TAP TZX13A-TR TZX13B-TAP TZX13B-TR TZX13C-TAP TZX13C-TR TZX14A-TAP TZX14A-TR TZX14B-TAP TZX14B-TR TZX14C-TAP TZX14C-TR TZX15A-TAP TZX15A-TR TZX15B-TAP TZX15B-TR TZX15C-TAP TZX15C-TR TZX15X-TAP TZX16A-TAP TZX16A-TR TZX16B-TAP TZX16B-TR TZX16C-TAP TZX16C-TR TZX18A-TAP TZX18A-TR TZX18B-TAP TZX18B-TR TZX18C-TAP TZX18C-TR TZX20A-TAP TZX20A-TR TZX20B-TAP TZX20B-TR TZX20C-TAP TZX20C-TR TZX22A-TAP TZX22A-TR TZX22B-TAP TZX22B-TR TZX22C-TAP TZX22C-TR TZX24A-TAP TZX24A-TR TZX24B-TAP TZX24B-TR TZX24C-TAP TZX24C-TR TZX24X-TAP TZX27A-TAP TZX27A-TR TZX27B-TAP TZX27B-TR TZX27C-TAP TZX27C-TR TZX27X-TAP TZX2V4A-TAP TZX2V4A-TR TZX2V4B-TAP TZX2V4B-TR TZX2V7A-TAP TZX2V7A-TR TZX2V7B-TAP TZX2V7B-TR TZX2V7C-TAP TZX2V7C-TR TZX30A-TAP TZX30A-TR TZX30B-TAP TZX30B-TR TZX30C-TAP TZX30C-TR TZX30X-TAP TZX33A-TAP TZX33A-TR TZX33B-TAP TZX33B-TR TZX33C-TAP TZX33C-TR TZX36A-TAP TZX36A-TR TZX36B-TAP TZX36B-TR TZX36C-TAP TZX36C-TR TZX36X-TAP TZX3V0A-TAP TZX3V0A-TR TZX3V0B-TAP TZX3V0B-TR TZX3V0C-TAP TZX3V0C-TR TZX3V3A-TAP TZX3V3A-TR TZX3V3B-TAP TZX3V3B-TR TZX3V3C-TAP TZX3V3C-TR TZX3V6A-TAP TZX3V6A-TR TZX3V6B-TAP TZX3V6B-TR TZX3V6C-TAP TZX3V6C-TR TZX3V9A-TAP TZX3V9A-TR TZX3V9B-TAP TZX3V9B-TR TZX3V9C-TAP TZX3V9C-TR TZX4V3A-TAP TZX4V3A-TR TZX4V3B-TAP TZX4V3B-TR TZX4V3C-TAP TZX4V3C-TR TZX4V3D-TAP TZX4V3D-TR TZX4V7A-TAP TZX4V7A-TR TZX4V7B-TAP TZX4V7B-TR TZX4V7C-TAP TZX4V7C-TR TZX4V7D-TAP TZX4V7D-TR TZX5V1A-TAP TZX5V1A-TR TZX5V1B-TAP TZX5V1B-TR TZX5V1C-TAP TZX5V1C-TR TZX5V1D-TAP TZX5V1D-TR TZX5V6A-TAP TZX5V6A-TR TZX5V6B-TAP TZX5V6B-TR TZX5V6C-TAP TZX5V6C-TR TZX5V6D-TAP TZX5V6D-TR TZX5V6E-TAP TZX5V6E-TR TZX6V2A-TAP TZX6V2A-TR TZX6V2B-TAP TZX6V2B-TR TZX6V2C-TAP TZX6V2C-TR TZX6V2D-TAP TZX6V2D-TR TZX6V2E-TAP TZX6V2E-TR TZX6V8A-TAP TZX6V8A-TR TZX6V8B-TAP TZX6V8B-TR TZX6V8C-TAP TZX6V8C-TR TZX6V8D-TAP TZX6V8D-TR TZX7V5A-TAP TZX7V5A-TR TZX7V5B-TAP TZX7V5B-TR TZX7V5C-TAP TZX7V5C-TR TZX7V5D-TAP TZX7V5D-TR TZX7V5X-TAP TZX8V2A-TAP TZX8V2A-TR TZX8V2B-TAP TZX8V2B-TR TZX8V2C-TAP TZX8V2C-TR TZX8V2D-TAP TZX8V2D-TR TZX9V1A-TAP TZX9V1A-TR TZX9V1B-TAP TZX9V1B-TR TZX9V1C-TAP TZX9V1C-TR TZX9V1D-TAP TZX9V1D-TR TZX9V1E-TAP TZX9V1E-TR
Text Version of Document
TZX-Series
www.vishay.com Vishay Semiconductors

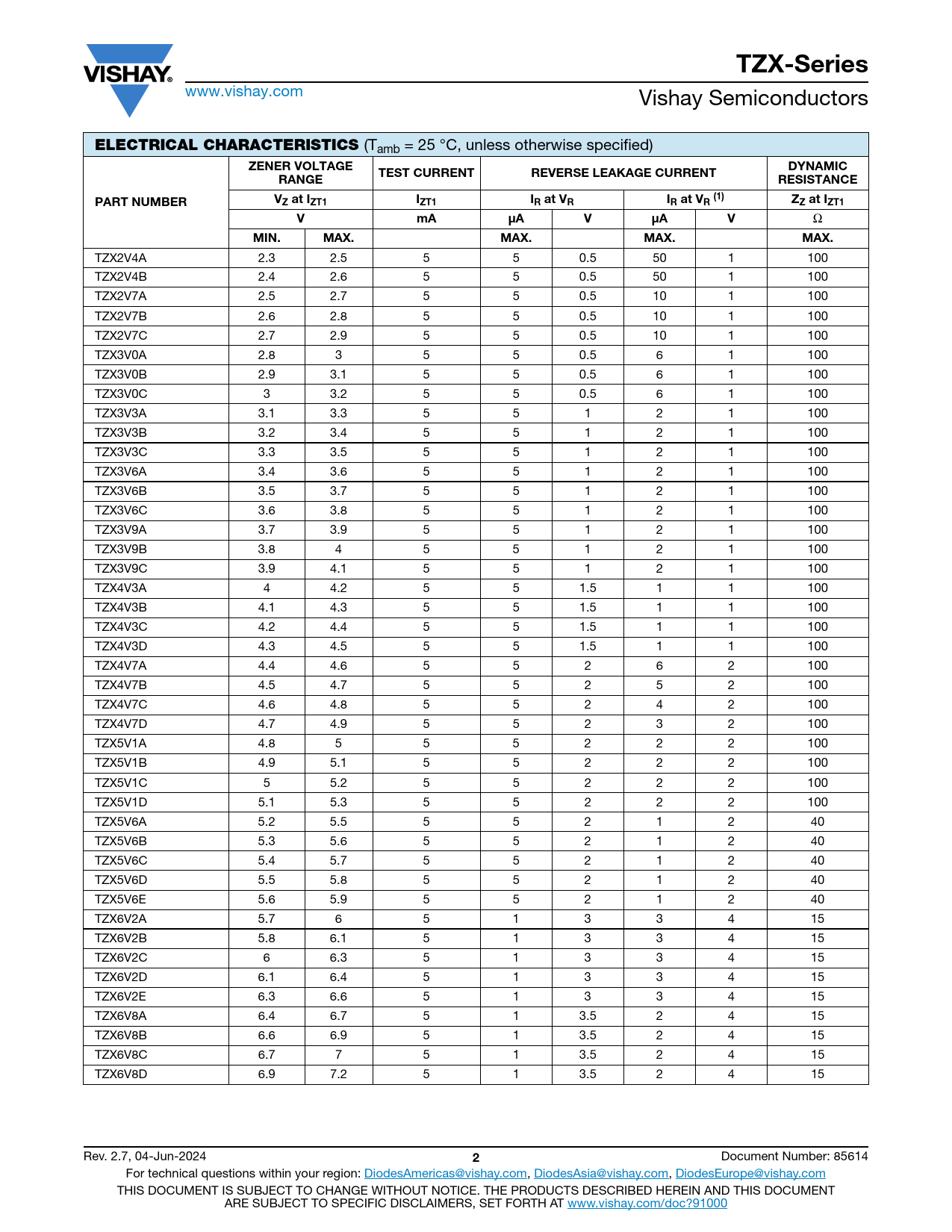

ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
ZENER VOLTAGE DYNAMIC TEST CURRENT REVERSE LEAKAGE CURRENT RANGE RESISTANCE PART NUMBER VZ at IZT1 IZT1 IR at VR IR at VR (1) ZZ at IZT1 V mA μA V μA V
Ω
MIN. MAX. MAX. MAX. MAX.
TZX2V4A 2.3 2.5 5 5 0.5 50 1 100 TZX2V4B 2.4 2.6 5 5 0.5 50 1 100 TZX2V7A 2.5 2.7 5 5 0.5 10 1 100 TZX2V7B 2.6 2.8 5 5 0.5 10 1 100 TZX2V7C 2.7 2.9 5 5 0.5 10 1 100 TZX3V0A 2.8 3 5 5 0.5 6 1 100 TZX3V0B 2.9 3.1 5 5 0.5 6 1 100 TZX3V0C 3 3.2 5 5 0.5 6 1 100 TZX3V3A 3.1 3.3 5 5 1 2 1 100 TZX3V3B 3.2 3.4 5 5 1 2 1 100 TZX3V3C 3.3 3.5 5 5 1 2 1 100 TZX3V6A 3.4 3.6 5 5 1 2 1 100 TZX3V6B 3.5 3.7 5 5 1 2 1 100 TZX3V6C 3.6 3.8 5 5 1 2 1 100 TZX3V9A 3.7 3.9 5 5 1 2 1 100 TZX3V9B 3.8 4 5 5 1 2 1 100 TZX3V9C 3.9 4.1 5 5 1 2 1 100 TZX4V3A 4 4.2 5 5 1.5 1 1 100 TZX4V3B 4.1 4.3 5 5 1.5 1 1 100 TZX4V3C 4.2 4.4 5 5 1.5 1 1 100 TZX4V3D 4.3 4.5 5 5 1.5 1 1 100 TZX4V7A 4.4 4.6 5 5 2 6 2 100 TZX4V7B 4.5 4.7 5 5 2 5 2 100 TZX4V7C 4.6 4.8 5 5 2 4 2 100 TZX4V7D 4.7 4.9 5 5 2 3 2 100 TZX5V1A 4.8 5 5 5 2 2 2 100 TZX5V1B 4.9 5.1 5 5 2 2 2 100 TZX5V1C 5 5.2 5 5 2 2 2 100 TZX5V1D 5.1 5.3 5 5 2 2 2 100 TZX5V6A 5.2 5.5 5 5 2 1 2 40 TZX5V6B 5.3 5.6 5 5 2 1 2 40 TZX5V6C 5.4 5.7 5 5 2 1 2 40 TZX5V6D 5.5 5.8 5 5 2 1 2 40 TZX5V6E 5.6 5.9 5 5 2 1 2 40 TZX6V2A 5.7 6 5 1 3 3 4 15 TZX6V2B 5.8 6.1 5 1 3 3 4 15 TZX6V2C 6 6.3 5 1 3 3 4 15 TZX6V2D 6.1 6.4 5 1 3 3 4 15 TZX6V2E 6.3 6.6 5 1 3 3 4 15 TZX6V8A 6.4 6.7 5 1 3.5 2 4 15 TZX6V8B 6.6 6.9 5 1 3.5 2 4 15 TZX6V8C 6.7 7 5 1 3.5 2 4 15 TZX6V8D 6.9 7.2 5 1 3.5 2 4 15 Rev. 2.7, 04-Jun-2024
