Datasheet TZX (Vishay) - 3
| Manufacturer | Vishay |
| Description | Small Signal Zener Diodes in DO-35 (DO-204AH) package |
| Pages / Page | 7 / 3 — TZX-Series. ELECTRICAL CHARACTERISTICS. ZENER VOLTAGE. DYNAMIC. TEST … |
| File Format / Size | PDF / 125 Kb |
| Document Language | English |
TZX-Series. ELECTRICAL CHARACTERISTICS. ZENER VOLTAGE. DYNAMIC. TEST CURRENT. REVERSE LEAKAGE CURRENT. RANGE. RESISTANCE. PART NUMBER
Model Line for this Datasheet
- TZX10A-TAP TZX10A-TR TZX10B-TAP TZX10B-TR TZX10C-TAP TZX10C-TR TZX10D-TAP TZX10D-TR TZX11A-TAP TZX11A-TR TZX11B-TAP TZX11B-TR TZX11C-TAP TZX11C-TR TZX11D-TAP TZX11D-TR TZX12A-TAP TZX12A-TR TZX12B-TAP TZX12B-TR TZX12C-TAP TZX12C-TR TZX12D-TAP TZX12D-TR TZX12X-TAP TZX13A-TAP TZX13A-TR TZX13B-TAP TZX13B-TR TZX13C-TAP TZX13C-TR TZX14A-TAP TZX14A-TR TZX14B-TAP TZX14B-TR TZX14C-TAP TZX14C-TR TZX15A-TAP TZX15A-TR TZX15B-TAP TZX15B-TR TZX15C-TAP TZX15C-TR TZX15X-TAP TZX16A-TAP TZX16A-TR TZX16B-TAP TZX16B-TR TZX16C-TAP TZX16C-TR TZX18A-TAP TZX18A-TR TZX18B-TAP TZX18B-TR TZX18C-TAP TZX18C-TR TZX20A-TAP TZX20A-TR TZX20B-TAP TZX20B-TR TZX20C-TAP TZX20C-TR TZX22A-TAP TZX22A-TR TZX22B-TAP TZX22B-TR TZX22C-TAP TZX22C-TR TZX24A-TAP TZX24A-TR TZX24B-TAP TZX24B-TR TZX24C-TAP TZX24C-TR TZX24X-TAP TZX27A-TAP TZX27A-TR TZX27B-TAP TZX27B-TR TZX27C-TAP TZX27C-TR TZX27X-TAP TZX2V4A-TAP TZX2V4A-TR TZX2V4B-TAP TZX2V4B-TR TZX2V7A-TAP TZX2V7A-TR TZX2V7B-TAP TZX2V7B-TR TZX2V7C-TAP TZX2V7C-TR TZX30A-TAP TZX30A-TR TZX30B-TAP TZX30B-TR TZX30C-TAP TZX30C-TR TZX30X-TAP TZX33A-TAP TZX33A-TR TZX33B-TAP TZX33B-TR TZX33C-TAP TZX33C-TR TZX36A-TAP TZX36A-TR TZX36B-TAP TZX36B-TR TZX36C-TAP TZX36C-TR TZX36X-TAP TZX3V0A-TAP TZX3V0A-TR TZX3V0B-TAP TZX3V0B-TR TZX3V0C-TAP TZX3V0C-TR TZX3V3A-TAP TZX3V3A-TR TZX3V3B-TAP TZX3V3B-TR TZX3V3C-TAP TZX3V3C-TR TZX3V6A-TAP TZX3V6A-TR TZX3V6B-TAP TZX3V6B-TR TZX3V6C-TAP TZX3V6C-TR TZX3V9A-TAP TZX3V9A-TR TZX3V9B-TAP TZX3V9B-TR TZX3V9C-TAP TZX3V9C-TR TZX4V3A-TAP TZX4V3A-TR TZX4V3B-TAP TZX4V3B-TR TZX4V3C-TAP TZX4V3C-TR TZX4V3D-TAP TZX4V3D-TR TZX4V7A-TAP TZX4V7A-TR TZX4V7B-TAP TZX4V7B-TR TZX4V7C-TAP TZX4V7C-TR TZX4V7D-TAP TZX4V7D-TR TZX5V1A-TAP TZX5V1A-TR TZX5V1B-TAP TZX5V1B-TR TZX5V1C-TAP TZX5V1C-TR TZX5V1D-TAP TZX5V1D-TR TZX5V6A-TAP TZX5V6A-TR TZX5V6B-TAP TZX5V6B-TR TZX5V6C-TAP TZX5V6C-TR TZX5V6D-TAP TZX5V6D-TR TZX5V6E-TAP TZX5V6E-TR TZX6V2A-TAP TZX6V2A-TR TZX6V2B-TAP TZX6V2B-TR TZX6V2C-TAP TZX6V2C-TR TZX6V2D-TAP TZX6V2D-TR TZX6V2E-TAP TZX6V2E-TR TZX6V8A-TAP TZX6V8A-TR TZX6V8B-TAP TZX6V8B-TR TZX6V8C-TAP TZX6V8C-TR TZX6V8D-TAP TZX6V8D-TR TZX7V5A-TAP TZX7V5A-TR TZX7V5B-TAP TZX7V5B-TR TZX7V5C-TAP TZX7V5C-TR TZX7V5D-TAP TZX7V5D-TR TZX7V5X-TAP TZX8V2A-TAP TZX8V2A-TR TZX8V2B-TAP TZX8V2B-TR TZX8V2C-TAP TZX8V2C-TR TZX8V2D-TAP TZX8V2D-TR TZX9V1A-TAP TZX9V1A-TR TZX9V1B-TAP TZX9V1B-TR TZX9V1C-TAP TZX9V1C-TR TZX9V1D-TAP TZX9V1D-TR TZX9V1E-TAP TZX9V1E-TR
Text Version of Document
TZX-Series
www.vishay.com Vishay Semiconductors

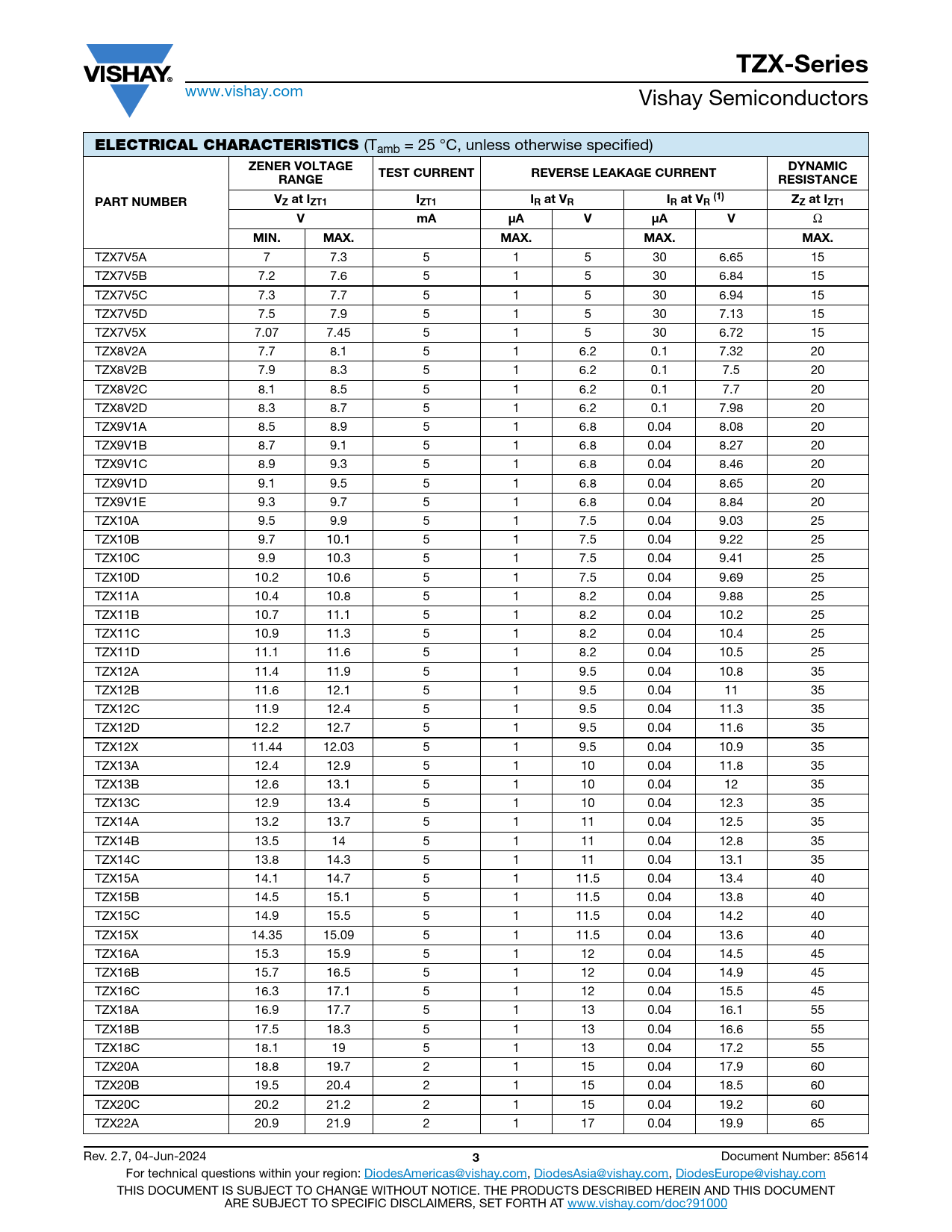

ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
ZENER VOLTAGE DYNAMIC TEST CURRENT REVERSE LEAKAGE CURRENT RANGE RESISTANCE PART NUMBER VZ at IZT1 IZT1 IR at VR IR at VR (1) ZZ at IZT1 V mA μA V μA V
Ω
MIN. MAX. MAX. MAX. MAX.
TZX7V5A 7 7.3 5 1 5 30 6.65 15 TZX7V5B 7.2 7.6 5 1 5 30 6.84 15 TZX7V5C 7.3 7.7 5 1 5 30 6.94 15 TZX7V5D 7.5 7.9 5 1 5 30 7.13 15 TZX7V5X 7.07 7.45 5 1 5 30 6.72 15 TZX8V2A 7.7 8.1 5 1 6.2 0.1 7.32 20 TZX8V2B 7.9 8.3 5 1 6.2 0.1 7.5 20 TZX8V2C 8.1 8.5 5 1 6.2 0.1 7.7 20 TZX8V2D 8.3 8.7 5 1 6.2 0.1 7.98 20 TZX9V1A 8.5 8.9 5 1 6.8 0.04 8.08 20 TZX9V1B 8.7 9.1 5 1 6.8 0.04 8.27 20 TZX9V1C 8.9 9.3 5 1 6.8 0.04 8.46 20 TZX9V1D 9.1 9.5 5 1 6.8 0.04 8.65 20 TZX9V1E 9.3 9.7 5 1 6.8 0.04 8.84 20 TZX10A 9.5 9.9 5 1 7.5 0.04 9.03 25 TZX10B 9.7 10.1 5 1 7.5 0.04 9.22 25 TZX10C 9.9 10.3 5 1 7.5 0.04 9.41 25 TZX10D 10.2 10.6 5 1 7.5 0.04 9.69 25 TZX11A 10.4 10.8 5 1 8.2 0.04 9.88 25 TZX11B 10.7 11.1 5 1 8.2 0.04 10.2 25 TZX11C 10.9 11.3 5 1 8.2 0.04 10.4 25 TZX11D 11.1 11.6 5 1 8.2 0.04 10.5 25 TZX12A 11.4 11.9 5 1 9.5 0.04 10.8 35 TZX12B 11.6 12.1 5 1 9.5 0.04 11 35 TZX12C 11.9 12.4 5 1 9.5 0.04 11.3 35 TZX12D 12.2 12.7 5 1 9.5 0.04 11.6 35 TZX12X 11.44 12.03 5 1 9.5 0.04 10.9 35 TZX13A 12.4 12.9 5 1 10 0.04 11.8 35 TZX13B 12.6 13.1 5 1 10 0.04 12 35 TZX13C 12.9 13.4 5 1 10 0.04 12.3 35 TZX14A 13.2 13.7 5 1 11 0.04 12.5 35 TZX14B 13.5 14 5 1 11 0.04 12.8 35 TZX14C 13.8 14.3 5 1 11 0.04 13.1 35 TZX15A 14.1 14.7 5 1 11.5 0.04 13.4 40 TZX15B 14.5 15.1 5 1 11.5 0.04 13.8 40 TZX15C 14.9 15.5 5 1 11.5 0.04 14.2 40 TZX15X 14.35 15.09 5 1 11.5 0.04 13.6 40 TZX16A 15.3 15.9 5 1 12 0.04 14.5 45 TZX16B 15.7 16.5 5 1 12 0.04 14.9 45 TZX16C 16.3 17.1 5 1 12 0.04 15.5 45 TZX18A 16.9 17.7 5 1 13 0.04 16.1 55 TZX18B 17.5 18.3 5 1 13 0.04 16.6 55 TZX18C 18.1 19 5 1 13 0.04 17.2 55 TZX20A 18.8 19.7 2 1 15 0.04 17.9 60 TZX20B 19.5 20.4 2 1 15 0.04 18.5 60 TZX20C 20.2 21.2 2 1 15 0.04 19.2 60 TZX22A 20.9 21.9 2 1 17 0.04 19.9 65 Rev. 2.7, 04-Jun-2024
