Datasheet HLW8032 (Hiliwi Technology) - 7
| Manufacturer | Hiliwi Technology |
| Description | Single-phase metering IC in SOP8 package |
| Pages / Page | 18 / 7 — HLW8032. Technical specification. Typical. Parameter. Sign. Minima. … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

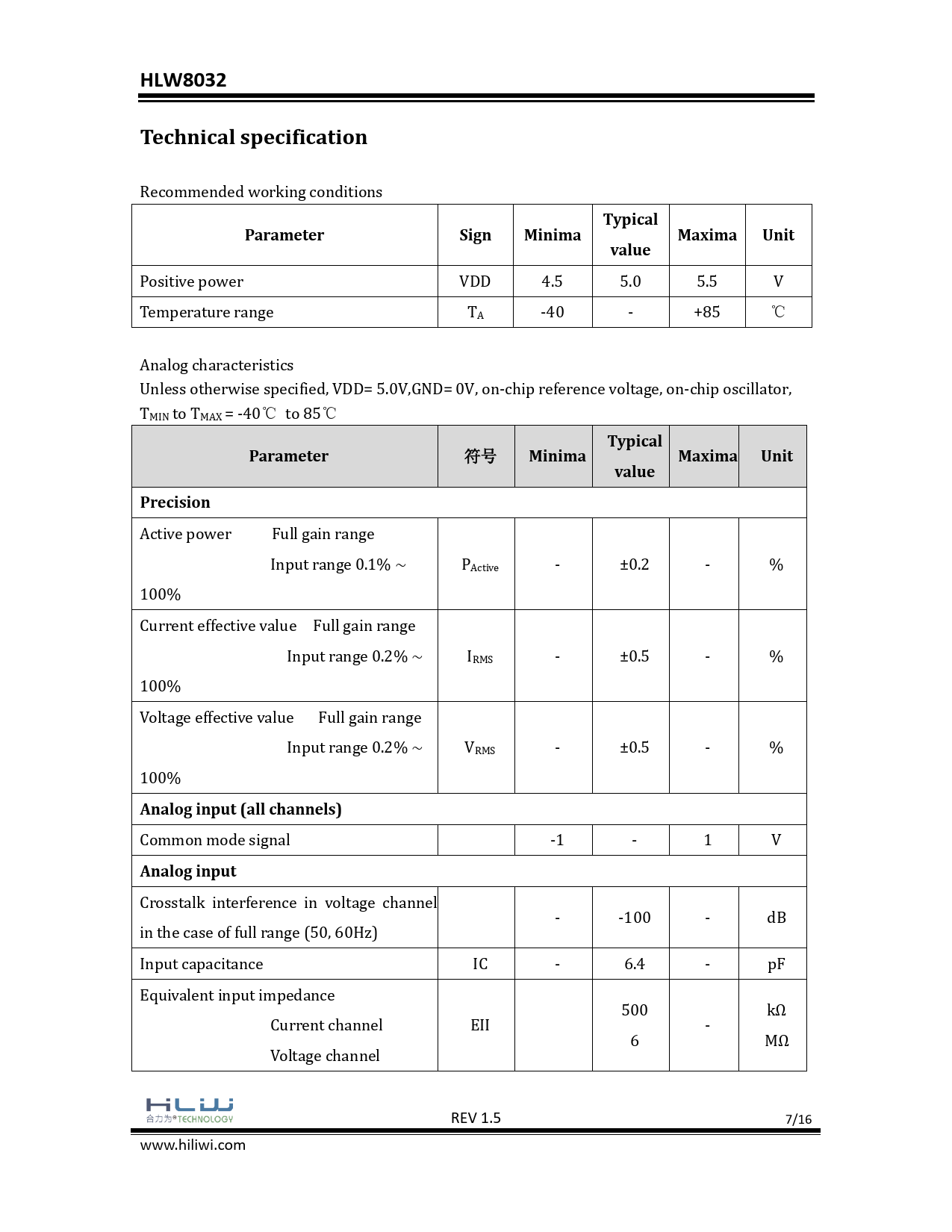

HLW8032. Technical specification. Typical. Parameter. Sign. Minima. Maxima Unit. value. Precision. Analog input (all channels)
Model Line for this Datasheet
Text Version of Document
HLW8032 Technical specification
Recommended working conditions
Typical Parameter Sign Minima Maxima Unit value
Positive power VDD 4.5 5.0 5.5 V Temperature range TA -40 - +85 ℃ Analog characteristics Unless otherwise specified, VDD= 5.0V,GND= 0V, on-chip reference voltage, on-chip oscillator, TMIN to TMAX = -40℃ to 85℃
Typical Parameter
符号
Minima Maxima Unit value Precision
Active power Full gain range Input range 0.1% ~ PActive - ±0.2 - % 100% Current effective value Full gain range Input range 0.2% ~ IRMS - ±0.5 - % 100% Voltage effective value Full gain range Input range 0.2% ~ VRMS - ±0.5 - % 100%
Analog input (all channels)
Common mode signal -1 - 1 V
Analog input
Crosstalk interference in voltage channel - -100 - dB in the case of full range (50, 60Hz) Input capacitance IC - 6.4 - pF Equivalent input impedance 500 kΩ Current channel EII - 6 MΩ Voltage channel REV 1.5 7/16 www.hiliwi.com
