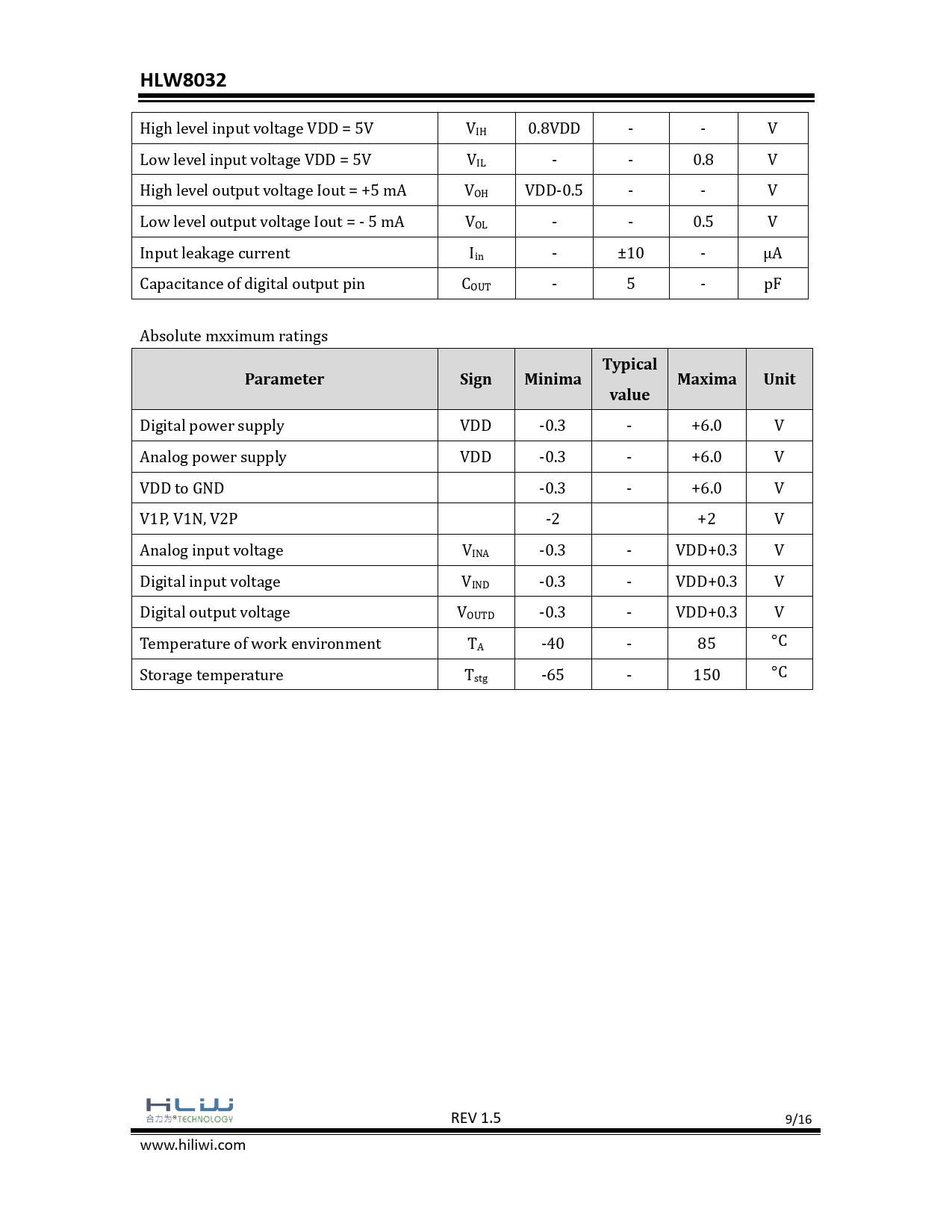

HLW8032
High level input voltage VDD = 5V VIH 0.8VDD - - V Low level input voltage VDD = 5V VIL - - 0.8 V High level output voltage Iout = +5 mA VOH VDD-0.5 - - V Low level output voltage Iout = - 5 mA VOL - - 0.5 V Input leakage current Iin - ±10 - µA Capacitance of digital output pin COUT - 5 - pF Absolute mxximum ratings
Typical Parameter Sign Minima Maxima Unit value
Digital power supply VDD -0.3 - +6.0 V Analog power supply VDD -0.3 - +6.0 V VDD to GND -0.3 - +6.0 V V1P, V1N, V2P -2 +2 V Analog input voltage VINA -0.3 - VDD+0.3 V Digital input voltage VIND -0.3 - VDD+0.3 V Digital output voltage VOUTD -0.3 - VDD+0.3 V Temperature of work environment TA -40 - 85 °C Storage temperature Tstg -65 - 150 °C REV 1.5 9/16 www.hiliwi.com
