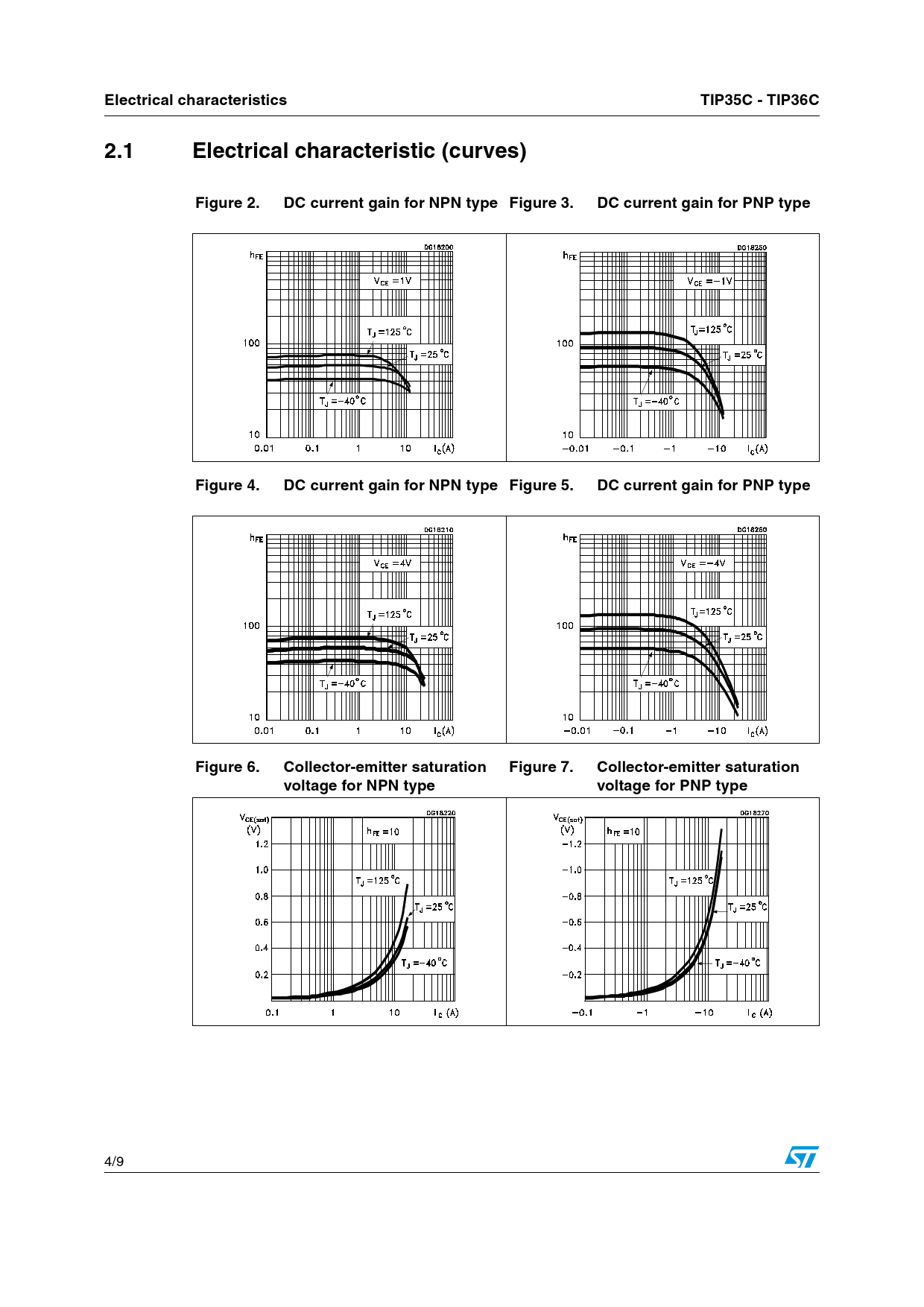

Electrical characteristics TIP35C - TIP36C 2.1 Electrical characteristic (curves) Figure 2. DC current gain for NPN type Figure 3. DC current gain for PNP type Figure 4. DC current gain for NPN type Figure 5. DC current gain for PNP type Figure 6. Collector-emitter saturation Figure 7. Collector-emitter saturation voltage for NPN type voltage for PNP type
4/9 Document Outline Figure 1. Internal schematic diagrams Table 1. Device summary 1 Electrical ratings Table 2. Absolute maximum ratings Table 3. Thermal data 2 Electrical characteristics Table 4. Electrical characteristics 2.1 Electrical characteristic (curves) Figure 2. DC current gain for NPN type Figure 3. DC current gain for PNP type Figure 4. DC current gain for NPN type Figure 5. DC current gain for PNP type Figure 6. Collector-emitter saturation voltage for NPN type Figure 7. Collector-emitter saturation voltage for PNP type Figure 8. Base-emitter saturation voltage for NPN type Figure 9. Base-emitter saturation voltage for PNP type Figure 10. Base-emitter on voltage for NPN type Figure 11. Base-emitter on voltage for PNP type 3 Package mechanical data 4 Revision history Table 5. Document revision history
