Datasheet SBRFP2M60P1Q (Diodes)
| Manufacturer | Diodes |
| Description | 2A Field Plated SBR Field Plated Super Barrier Rectifier in PowerDI123 package |
| Pages / Page | 6 / 1 — SBRFP2M60P1Q. Green. 2A FIELD PLATED SBR. FIELD PLATED SUPER BARRIER … |
| File Format / Size | PDF / 340 Kb |
| Document Language | English |

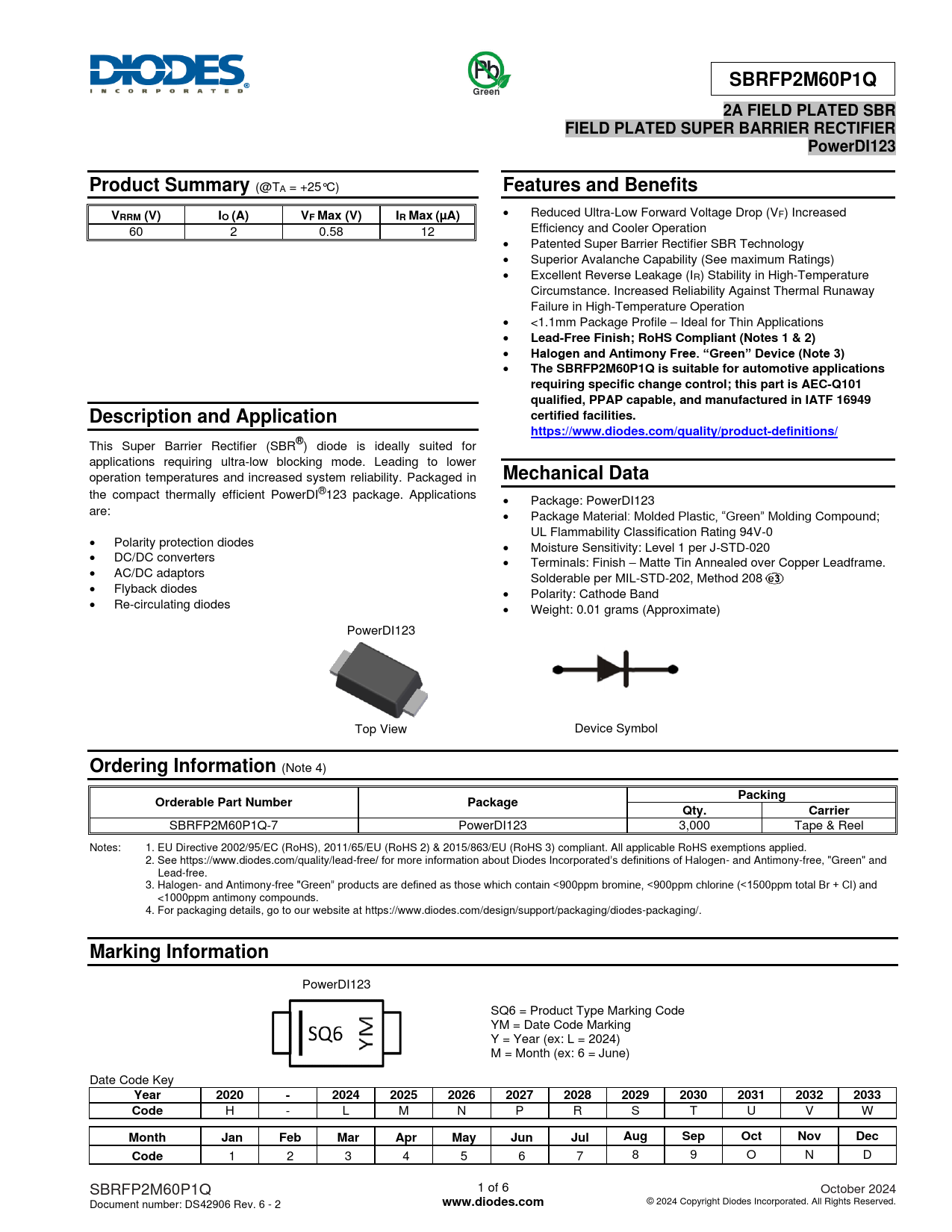

SBRFP2M60P1Q. Green. 2A FIELD PLATED SBR. FIELD PLATED SUPER BARRIER RECTIFIER. PowerDI123. Product Summary. Features and Benefits
Model Line for this Datasheet
Text Version of Document
SBRFP2M60P1Q Green 2A FIELD PLATED SBR FIELD PLATED SUPER BARRIER RECTIFIER PowerDI123 Product Summary
(@TA = +25°C)
Features and Benefits V
• Reduced Ultra-Low Forward Voltage Drop (V
RRM (V) IO (A) VF Max (V) IR Max (µA)
F) Increased 60 2 0.58 12 Efficiency and Cooler Operation • Patented Super Barrier Rectifier SBR Technology • Superior Avalanche Capability (See maximum Ratings) • Excellent Reverse Leakage (IR) Stability in High-Temperature Circumstance. Increased Reliability Against Thermal Runaway Failure in High-Temperature Operation • <1.1mm Package Profile – Ideal for Thin Applications •
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
The SBRFP2M60P1Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 Description and Application certified facilities. https://www.diodes.com/quality/product-definitions/
This Super Barrier Rectifier (SBR
®
) diode is ideally suited for applications requiring ultra-low blocking mode. Leading to lower operation temperatures and increased system reliability. Packaged in
Mechanical Data
the compact thermally efficient PowerDI®123 package. Applications • Package: PowerDI123 are: • Package Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 • Polarity protection diodes • Moisture Sensitivity: Level 1 per J-STD-020 • DC/DC converters • Terminals: Finish – Matte Tin Annealed over Copper Leadframe. • AC/DC adaptors Solderable per MIL-STD-202, Method 208 • Flyback diodes • Polarity: Cathode Band • Re-circulating diodes • Weight: 0.01 grams (Approximate) PowerDI123 Top View Device Symbol
Ordering Information
(Note 4)
Packing Orderable Part Number Package Qty. Carrier
SBRFP2M60P1Q-7 PowerDI123 3,000 Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
PowerDI123 SQ6 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: L = 2024) M = Month (ex: 6 = June) Date Code Key
Year 2020 - 2024 2025 2026 2027 2028 2029 2030 2031 2032 2033 Code
H - L M N P R S T U V W
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D SBRFP2M60P1Q 1 of 6 October 2024 Document number: DS42906 Rev. 6 - 2
