Datasheet SBRFP2M60P1Q (Diodes) - 5
| Manufacturer | Diodes |
| Description | 2A Field Plated SBR Field Plated Super Barrier Rectifier in PowerDI123 package |
| Pages / Page | 6 / 5 — SBRFP2M60P1Q. Package Outline Dimensions. PowerDI123. Dim. Min. Max. Typ. … |
| File Format / Size | PDF / 340 Kb |
| Document Language | English |

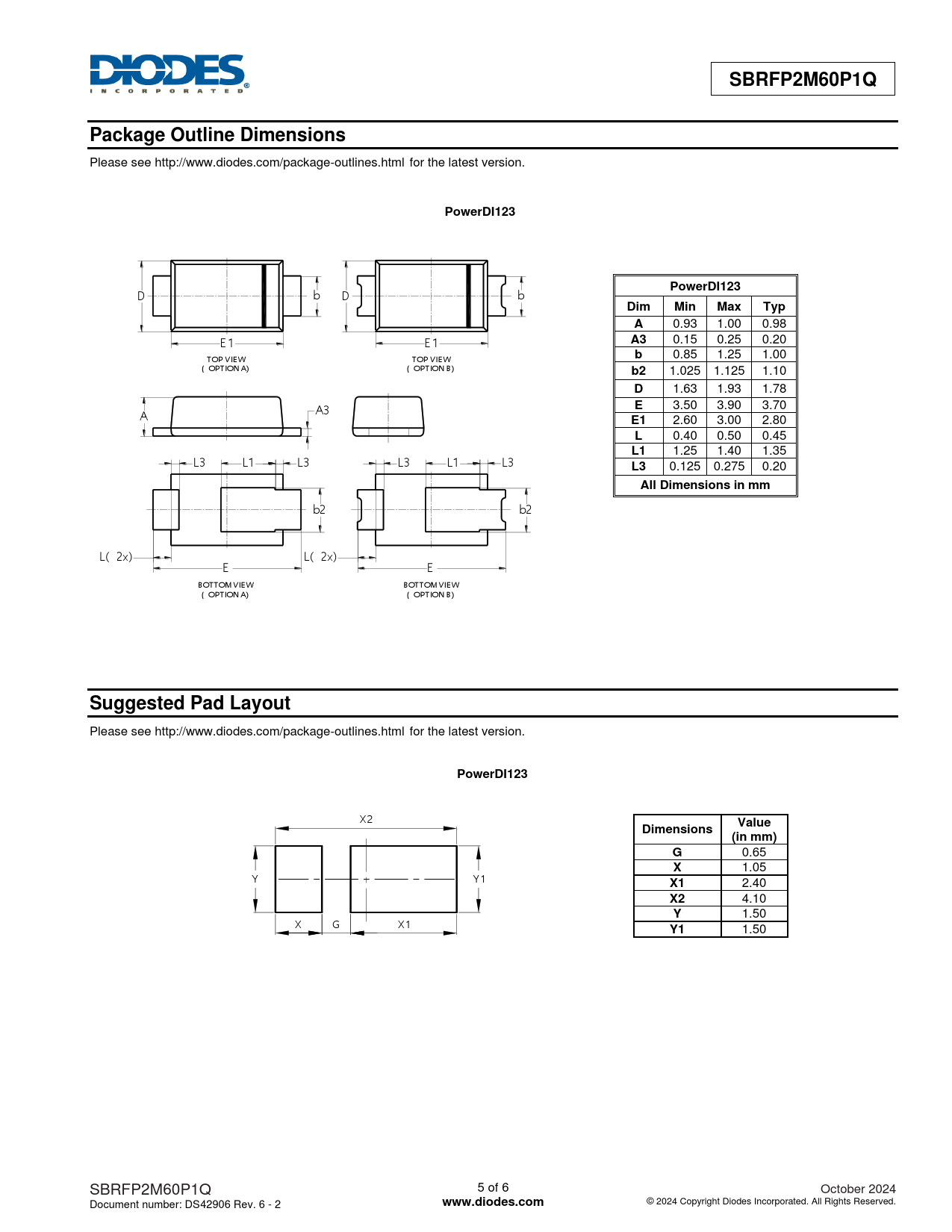

SBRFP2M60P1Q. Package Outline Dimensions. PowerDI123. Dim. Min. Max. Typ. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions
Model Line for this Datasheet
Text Version of Document
SBRFP2M60P1Q Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123 PowerDI123
D b D b
Dim Min Max Typ A
0.93 1.00 0.98
A3
0.15 0.25 0.20 E 1 E 1
b
0.85 1.25 1.00 TOP VIE W TOP VIE W ( OPTION A) ( OPTION B)
b2
1.025 1.125 1.10
D
1.63 1.93 1.78
E
3.50 3.90 3.70 A A3
E1
2.60 3.00 2.80
L
0.40 0.50 0.45
L1
1.25 1.40 1.35 L3 L1 L3 L3 L1 L3
L3
0.125 0.275 0.20
All Dimensions in mm
b2 b2 L( 2x) L( 2x) E E BOTTOM VIE W BOTTOM VIE W ( OPTION A) ( OPTION B)
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
PowerDI123
X2
Value Dimensions (in mm) G
0.65
X
1.05 Y Y1
X1
2.40
X2
4.10
Y
1.50 X G X1
Y1
1.50 SBRFP2M60P1Q 5 of 6 October 2024 Document number: DS42906 Rev. 6 - 2
www.diodes.com
© 2024 Copyright Diodes Incorporated. All Rights Reserved.
