Datasheet SBRFP2M60SAFQ (Diodes) - 4
| Manufacturer | Diodes |
| Description | 2A Field Plated SBR Field Plated Super Barrier Rectifier in SMAF package |
| Pages / Page | 5 / 4 — SBRFP2M60SAFQ. Package Outline Dimensions. SMAF. Dim. Min. Max. All … |
| File Format / Size | PDF / 293 Kb |
| Document Language | English |

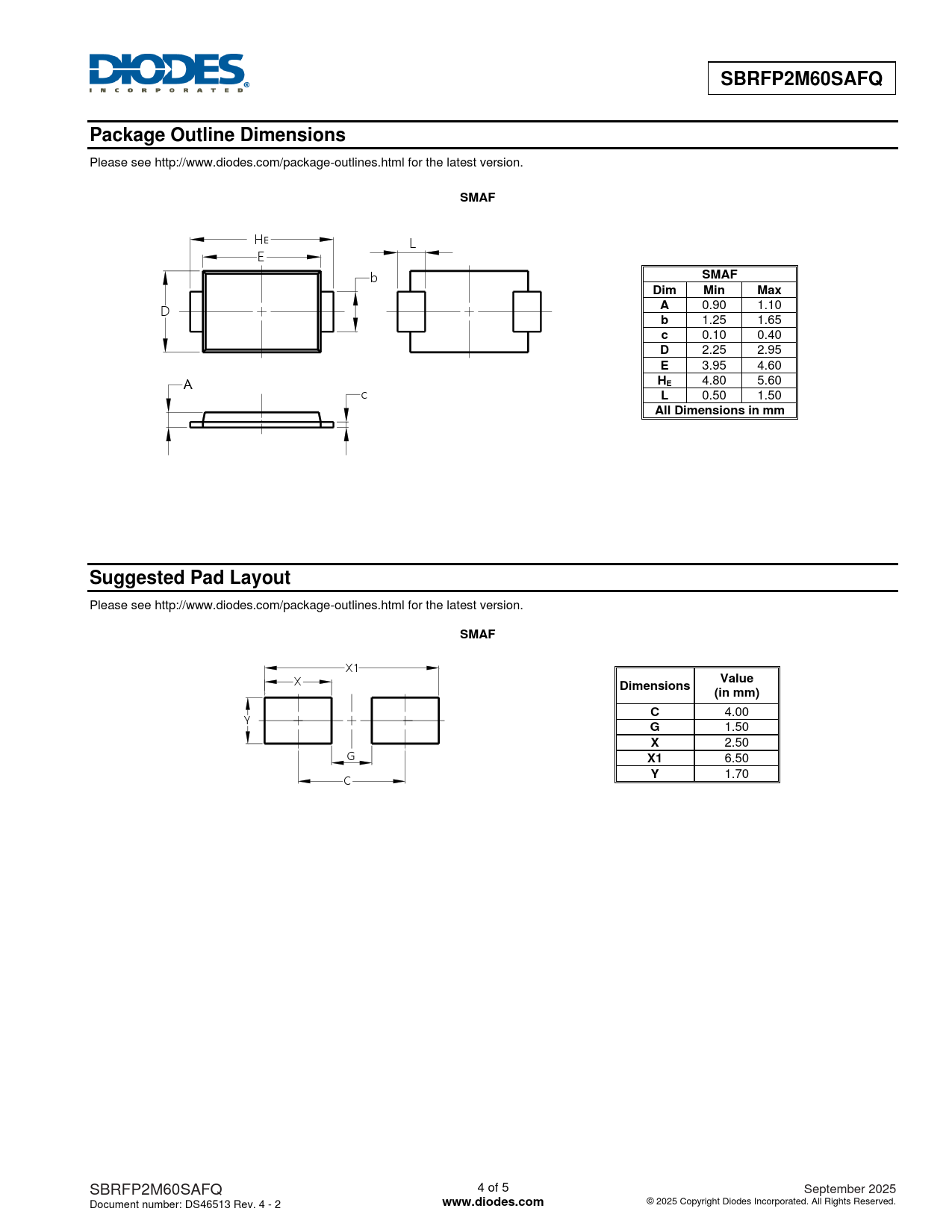

SBRFP2M60SAFQ. Package Outline Dimensions. SMAF. Dim. Min. Max. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
Model Line for this Datasheet
Text Version of Document
SBRFP2M60SAFQ Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SMAF
HE L E
SMAF
b
Dim Min Max A
0.90 1.10 D
b
1.25 1.65
c
0.10 0.40
D
2.25 2.95
E
3.95 4.60
HE
4.80 5.60 A c
L
0.50 1.50
All Dimensions in mm Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SMAF
X1 X
Value Dimensions (in mm) C
4.00 Y
G
1.50
X
2.50 G
X1
6.50
Y
1.70 C SBRFP2M60SAFQ 4 of 5 September 2025 Document number: DS46513 Rev. 4 - 2
