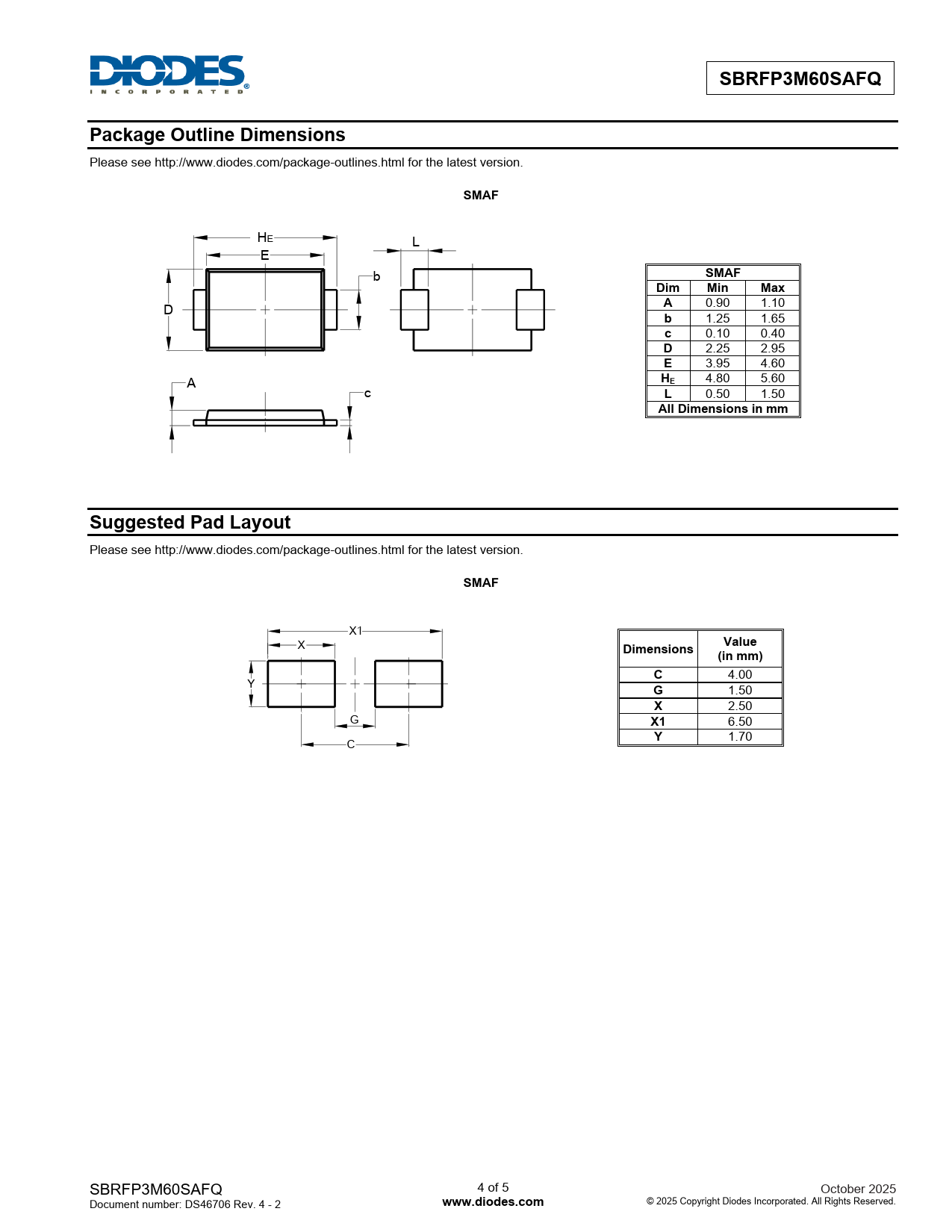

SBRFP3M60SAFQ. Package Outline Dimensions. SMAF. Dim. Min. Max. All Dimensions in mm. Suggested Pad Layout. Value. Dimensions. (in mm)
Model Line for this Datasheet
Text Version of Document
SBRFP3M60SAFQ Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SMAF
HE L E
SMAF
b
Dim Min Max A
0.90 1.10 D
b
1.25 1.65
c
0.10 0.40
D
2.25 2.95
E
3.95 4.60
HE
4.80 5.60 A c
L
0.50 1.50
All Dimensions in mm Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SMAF
X1 X
Value Dimensions (in mm) C
4.00 Y
G
1.50
X
2.50 G
X1
6.50
Y
1.70 C SBRFP3M60SAFQ 4 of 5 October 2025 Document number: DS46706 Rev. 4 - 2
