Datasheet JX3S0070R170M (JX Semiconductor) - 8
| Manufacturer | JX Semiconductor |
| Description | 1700V, 40A, 72mΩ, N-Channel, Silicon Carbide MOSFET in TO-247-3L package |
| Pages / Page | 10 / 8 — JX3S0070R1700M. 1700V, N.Channel, Silicon Carbide MOSFET. Typical … |
| File Format / Size | PDF / 636 Kb |
| Document Language | English |

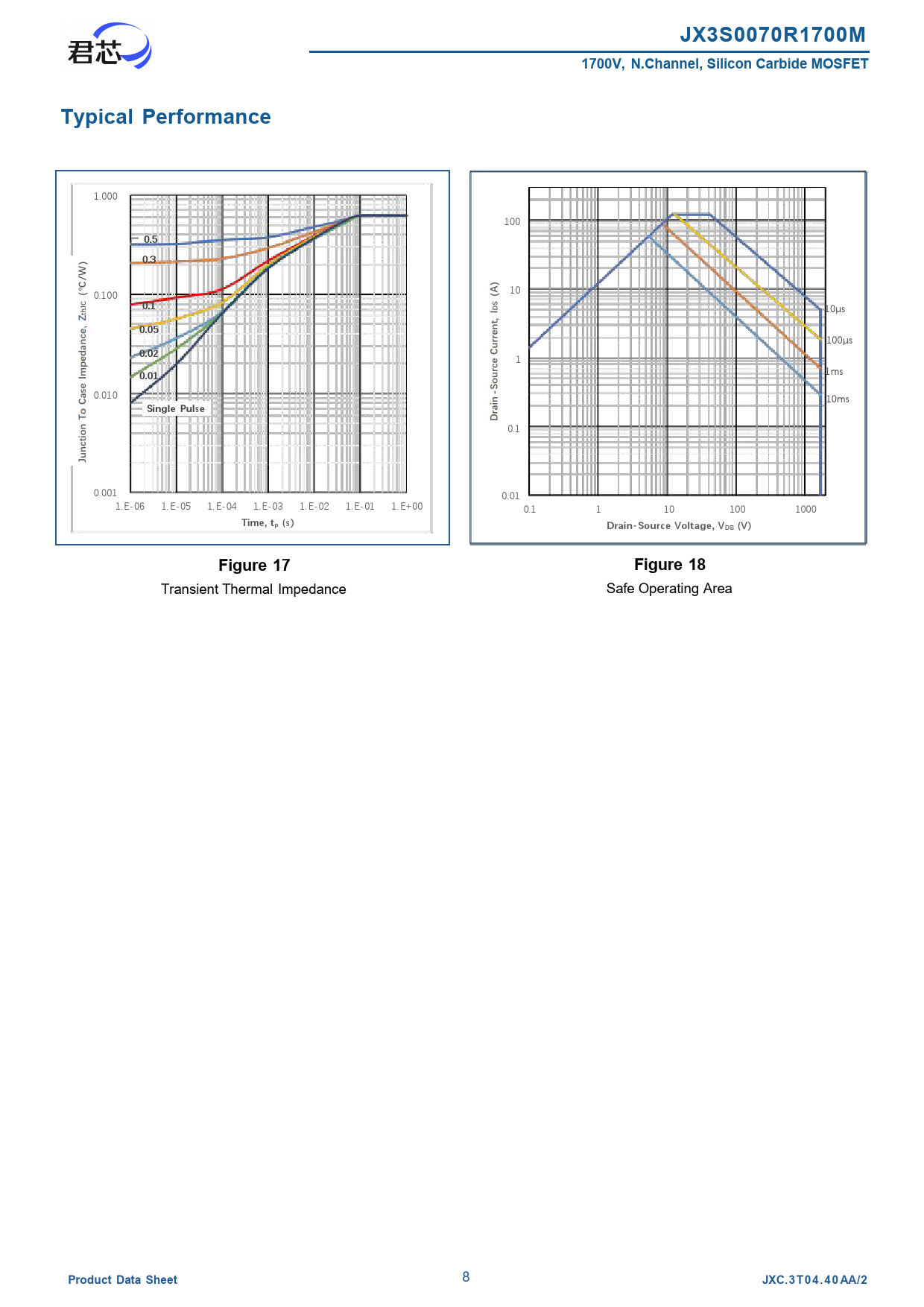

JX3S0070R1700M. 1700V, N.Channel, Silicon Carbide MOSFET. Typical Performance. 0.5. 0.3. 0.1. 0.05. 0.02. 0.01. Single Pulse. Time, tp (s)
Model Line for this Datasheet
Text Version of Document
JX3S0070R1700M 1700V, N.Channel, Silicon Carbide MOSFET Typical Performance
1.000 100
0.5 0.3
0.100 10
0.1
10μs
0.05
100μs
0.02
1
0.01
1ms 0.010 10ms
Single Pulse
0.1 0.001 0.01 1.E-06 1. E-05 1. E-04 1. E-03 1. E-02 1. E-01 1. E+00 0.1 1 10 100 1000
Time, tp (s) Drain-Source Voltage, VDS (V) Figure 17 Figure 18
Transient Thermal Impedance Safe Operating Area
Product Data Sheet
8
JXC.3T04.40AA/2
