Datasheet JX4S0040R120M (JX Semiconductor) - 4
| Manufacturer | JX Semiconductor |
| Description | 1200V, 60A, 45mΩ , N-Channel, Silicon Carbide MOSFET in TO-247-3 package |
| Pages / Page | 10 / 4 — JX4S0040R120M. 1200V, N.Channel, Silicon Carbide MOSFET. Typical … |
| File Format / Size | PDF / 608 Kb |
| Document Language | English |
JX4S0040R120M. 1200V, N.Channel, Silicon Carbide MOSFET. Typical Performance. Figure 1. Figure 2. Figure 3. Figure 4
Model Line for this Datasheet
Text Version of Document

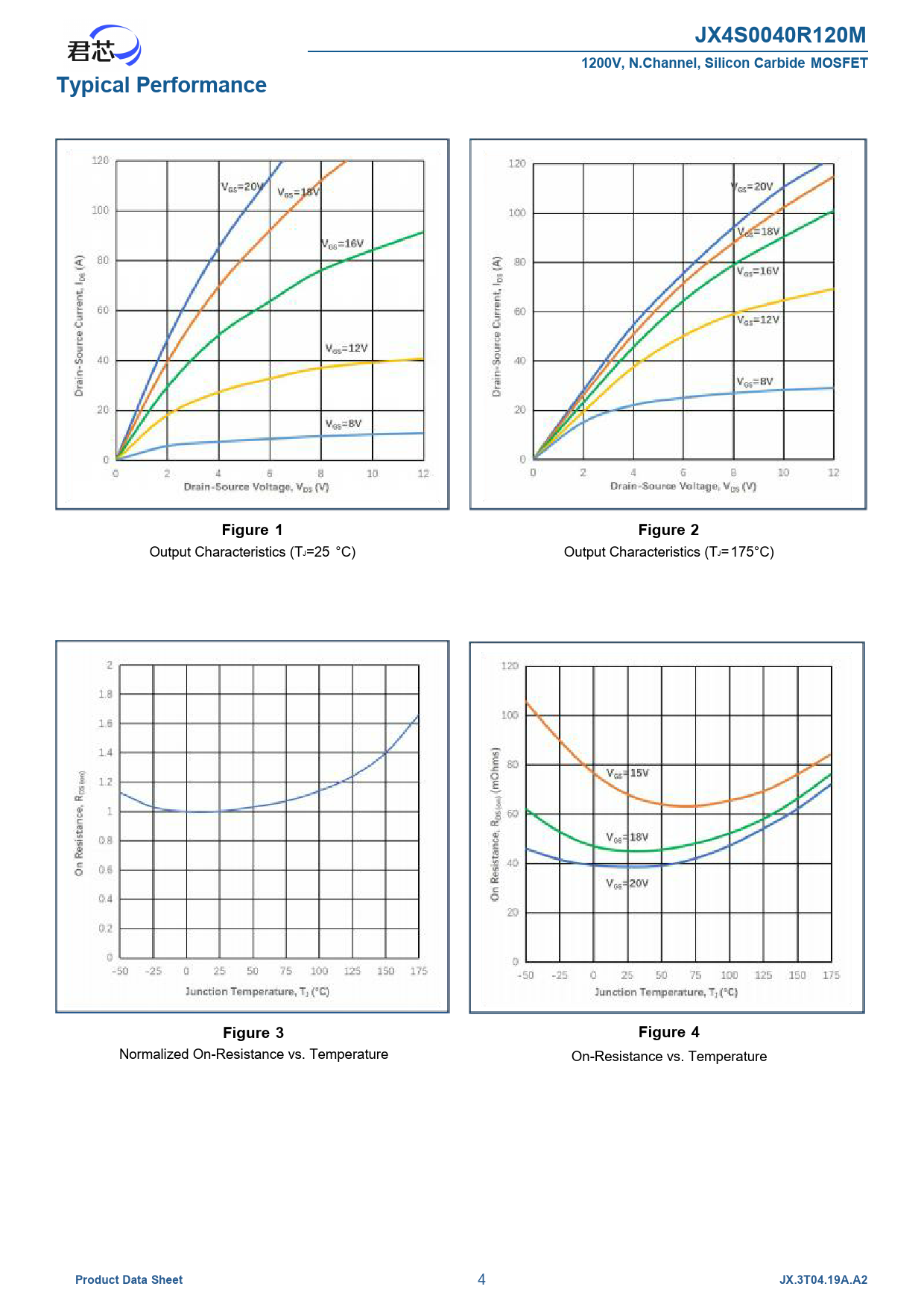

JX4S0040R120M 1200V, N.Channel, Silicon Carbide MOSFET Typical Performance Figure 1 Figure 2
Output Characteristics (TJ=25 °C) Output Characteristics (TJ=175°C)
Figure 3 Figure 4
Normalized On-Resistance vs. Temperature On-Resistance vs. Temperature
