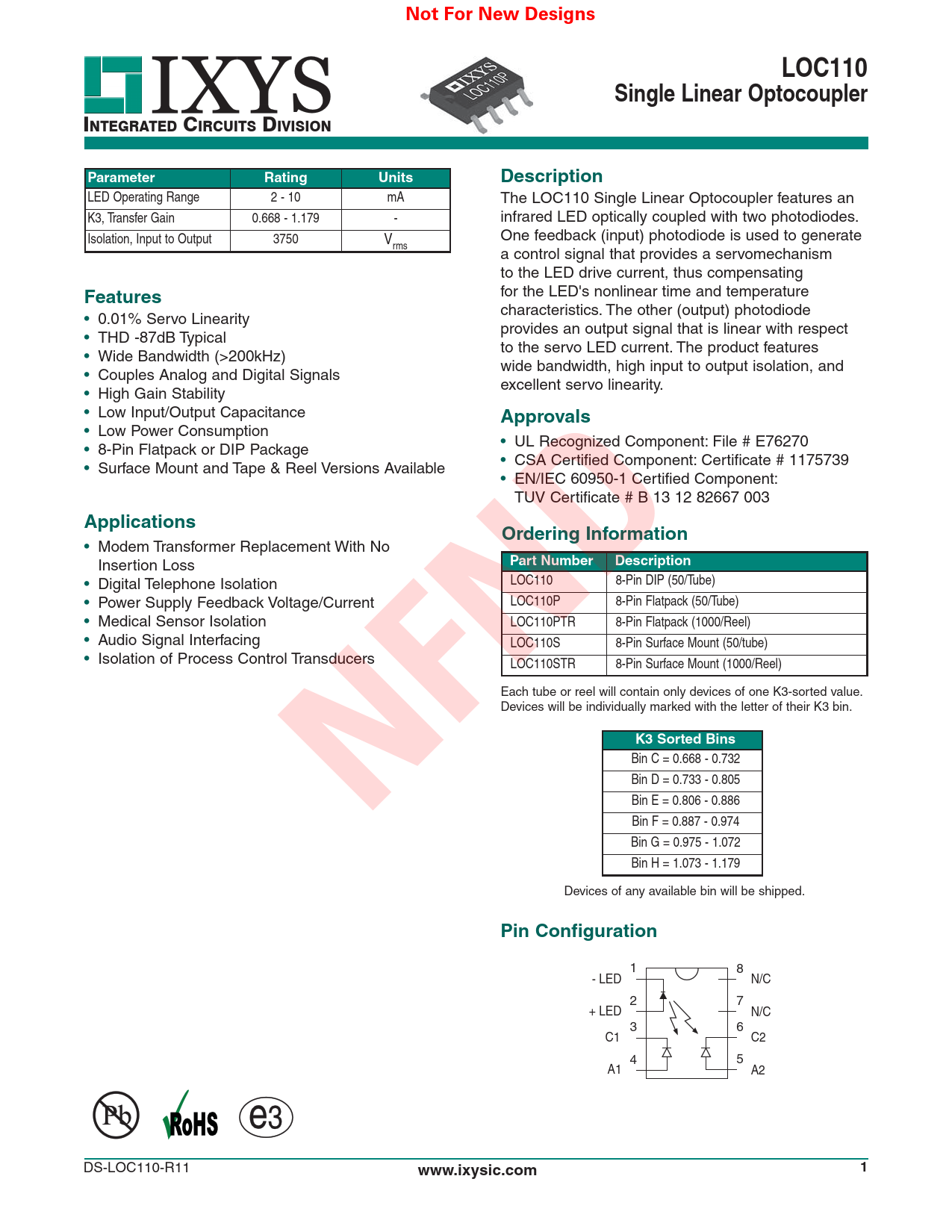

Not For New Designs LOC110 Single Linear Optocoupler
INTEGRATED CIRCUITS DIVISION
Parameter Rating Units Description
LED Operating Range 2 - 10 mA The LOC110 Single Linear Optocoupler features an K3, Transfer Gain 0.668 - 1.179 - infrared LED optically coupled with two photodiodes. Isolation, Input to Output 3750 One feedback (input) photodiode is used to generate Vrms a control signal that provides a servomechanism to the LED drive current, thus compensating
Features
for the LED's nonlinear time and temperature characteristics. The other (output) photodiode • 0.01% Servo Linearity provides an output signal that is linear with respect • THD -87dB Typical to the servo LED current. The product features • Wide Bandwidth (>200kHz) wide bandwidth, high input to output isolation, and • Couples Analog and Digital Signals excellent servo linearity. • High Gain Stability • Low Input/Output Capacitance
Approvals
• Low Power Consumption • UL Recognized Component: File # E76270 • 8-Pin Flatpack or DIP Package • CSA Certified Component: Certificate # 1175739 • Surface Mount and Tape & Reel Versions Available • EN/IEC 60950-1 Certified Component: TUV Certificate # B 13 12 82667 003
Applications Ordering Information
• Modem Transformer Replacement With No
Part Number Description
Insertion Loss LOC110 8-Pin DIP (50/Tube) • Digital Telephone Isolation • Power Supply Feedback Voltage/Current LOC110P 8-Pin Flatpack (50/Tube) • Medical Sensor Isolation LOC110PTR 8-Pin Flatpack (1000/Reel) • Audio Signal Interfacing LOC110S 8-Pin Surface Mount (50/tube) • Isolation of Process Control Transducers LOC110STR 8-Pin Surface Mount (1000/Reel) Each tube or reel will contain only devices of one K3-sorted value. Devices will be individually marked with the letter of their K3 bin.
K3 Sorted Bins NFND
Bin C = 0.668 - 0.732Bin D = 0.733 - 0.805Bin E = 0.806 - 0.886Bin F = 0.887 - 0.974Bin G = 0.975 - 1.072Bin H = 1.073 - 1.179 Devices of any available bin will be shipped.
Pin Configuration
1 8 - LED N/C 2 7 + LED N/C 3 6 C1 C2 4 5 A1 A2 DS-LOC110-R11
