Datasheet LOC110 (Littelfuse) - 5
| Manufacturer | Littelfuse |
| Description | Single Linear Optocoupler |
| Pages / Page | 7 / 5 — Not For New Designs. LOC110. Mechanical Dimensions. PCB Hole Pattern. … |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |
Not For New Designs. LOC110. Mechanical Dimensions. PCB Hole Pattern. LOC110P. PCB Land Pattern. NFND. LOC110S. www.ixysic.com
Model Line for this Datasheet
Text Version of Document
Not For New Designs
INTEGRATED CIRCUITS DIVISION

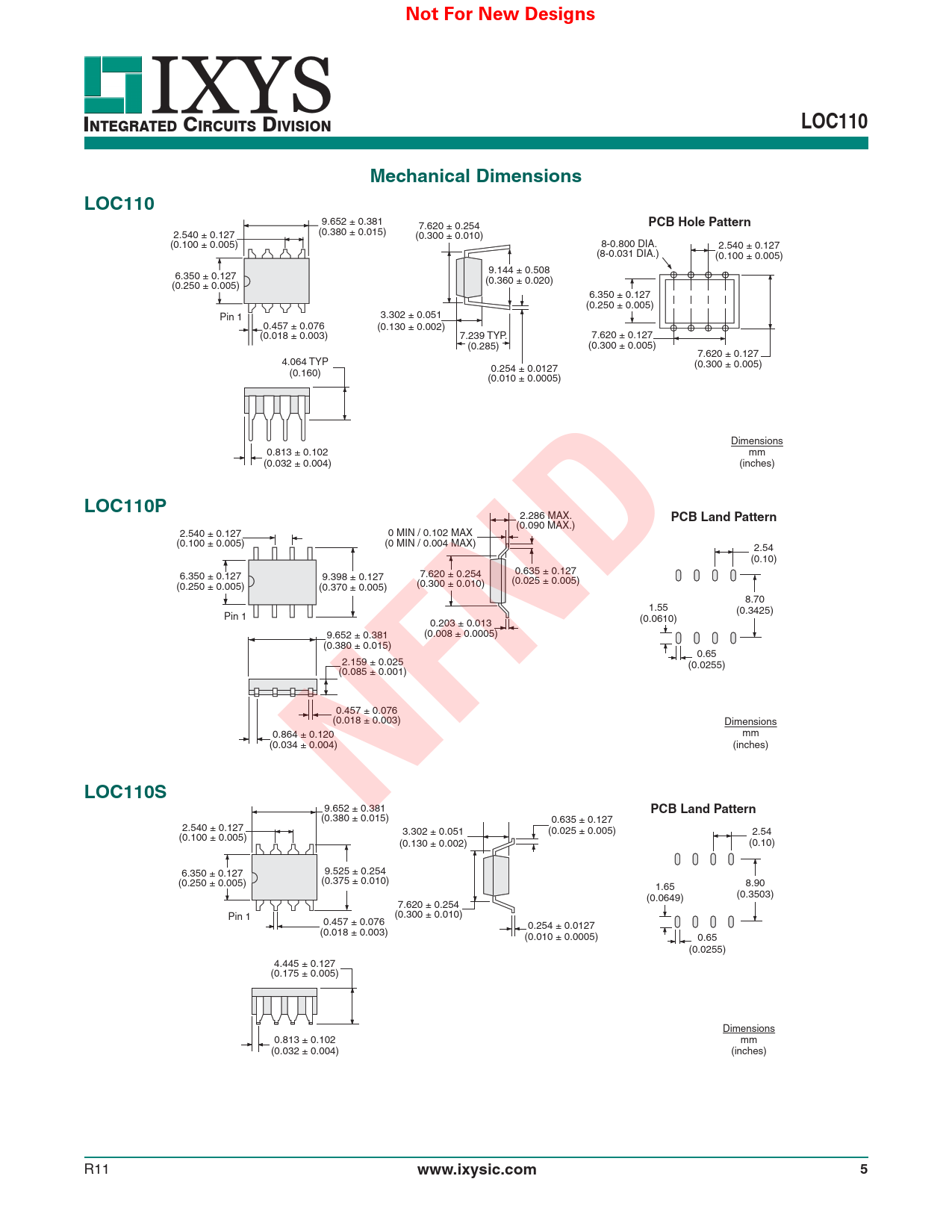

LOC110 Mechanical Dimensions LOC110
9.652 ± 0.381
PCB Hole Pattern
7.620 ± 0.254 2.540 ± 0.127 (0.380 ± 0.015) (0.300 ± 0.010) (0.100 ± 0.005) 8-0.800 DIA. 2.540 ± 0.127 (8-0.031 DIA.) (0.100 ± 0.005) 9.144 ± 0.508 6.350 ± 0.127 (0.360 ± 0.020) (0.250 ± 0.005) 6.350 ± 0.127 (0.250 ± 0.005) 3.302 ± 0.051 Pin 1 0.457 ± 0.076 (0.130 ± 0.002) (0.018 ± 0.003) 7.239 TYP. 7.620 ± 0.127 (0.285) (0.300 ± 0.005) 7.620 ± 0.127 4.064 TYP (0.300 ± 0.005) (0.160) 0.254 ± 0.0127 (0.010 ± 0.0005) Dimensions 0.813 ± 0.102 mm (0.032 ± 0.004) (inches)
LOC110P
2.286 MAX.
PCB Land Pattern
(0.090 MAX.) 2.540 ± 0.127 0 MIN / 0.102 MAX (0.100 ± 0.005) (0 MIN / 0.004 MAX) 2.54 (0.10) 0.635 ± 0.127 6.350 ± 0.127 9.398 ± 0.127 7.620 ± 0.254 (0.025 ± 0.005) (0.250 ± 0.005) (0.370 ± 0.005) (0.300 ± 0.010) 8.70 1.55 (0.3425) Pin 1 (0.0610) 0.203 ± 0.013 (0.008 ± 0.0005) 9.652 ± 0.381 (0.380 ± 0.015) 0.65 2.159 ± 0.025 (0.0255) (0.085 ± 0.001) 0.457 ± 0.076 (0.018 ± 0.003) Dimensions 0.864 ± 0.120 mm (0.034 ± 0.004) (inches)
NFND LOC110S
9.652 ± 0.381
PCB Land Pattern
(0.380 ± 0.015) 0.635 ± 0.127 2.540 ± 0.127 3.302 ± 0.051 (0.025 ± 0.005) 2.54 (0.100 ± 0.005) (0.130 ± 0.002) (0.10) 6.350 ± 0.127 9.525 ± 0.254 (0.250 ± 0.005) (0.375 ± 0.010) 8.90 1.65 (0.3503) (0.0649) 7.620 ± 0.254 (0.300 ± 0.010) Pin 1 0.457 ± 0.076 0.254 ± 0.0127 (0.018 ± 0.003) (0.010 ± 0.0005) 0.65 (0.0255) 4.445 ± 0.127 (0.175 ± 0.005) Dimensions 0.813 ± 0.102 mm (0.032 ± 0.004) (inches) R11
www.ixysic.com 5
