Datasheet DCL320C00 (Toshiba) - 3
| Manufacturer | Toshiba |
| Description | Low power, 25Mbps mid speed, 2 channel Digital Isolator in SOIC8-N package |
| Pages / Page | 21 / 3 — 4. Internal Circuit. 5. Pin configuration and Functions |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
4. Internal Circuit. 5. Pin configuration and Functions
Model Line for this Datasheet
Text Version of Document
DCL32xx00
4. Internal Circuit 5. Pin configuration and Functions

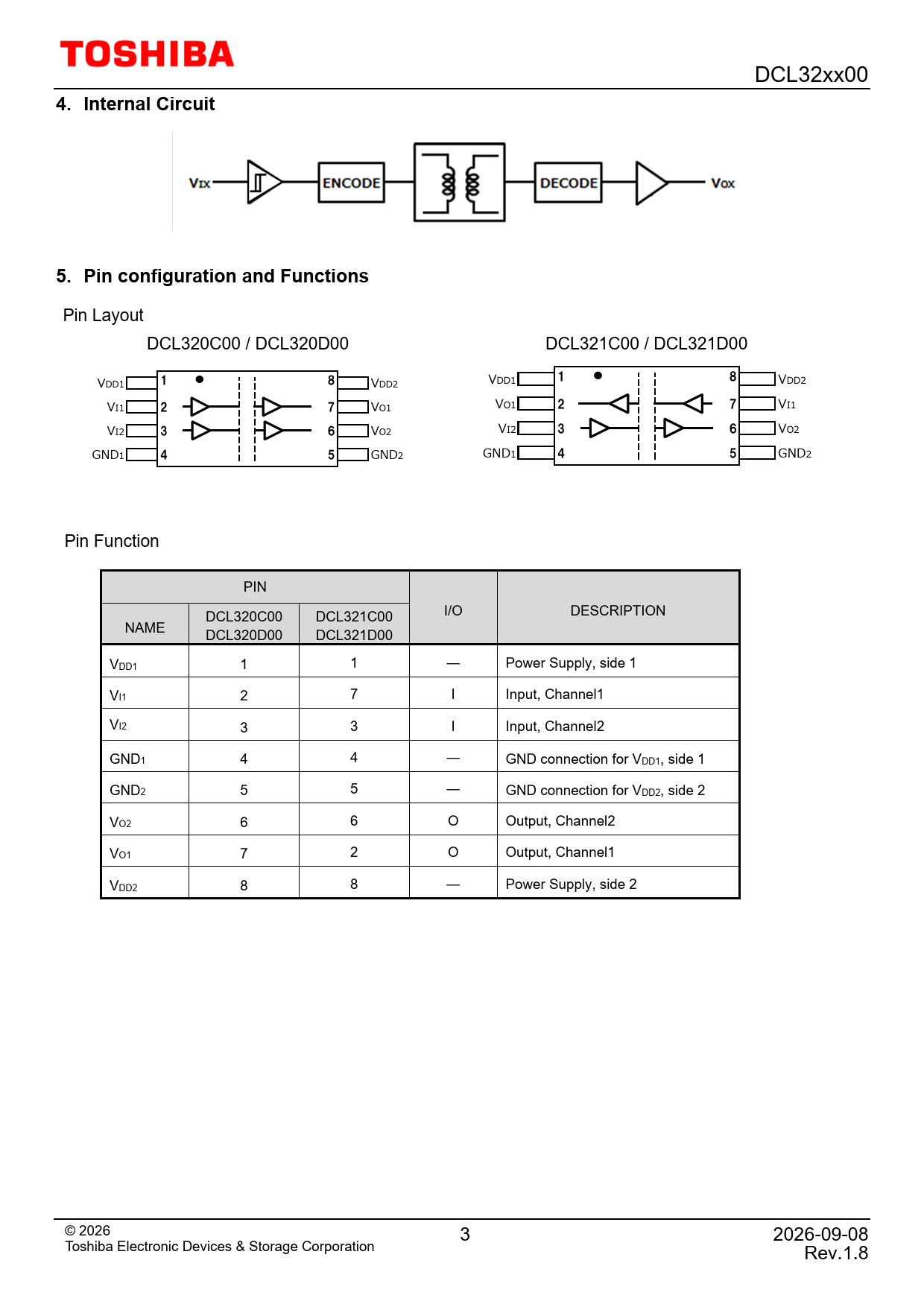

Pin Layout DCL320C00 / DCL320D00 DCL321C00 / DCL321D00 V 1 ● 8 V 1 ● 8 DD1 VDD2 DD1 VDD2 VI1 2 7 VO1 VO1 2 7 VI1 VI2 3 6 VO2 VI2 3 6 VO2 GND1 4 5 GND2 GND1 4 5 GND2 Pin Function PIN I/O DESCRIPTION DCL320C00 DCL321C00 NAME DCL320D00 DCL321D00 VDD1 1 1 ― Power Supply, side 1 VI1 2 7 I Input, Channel1 VI2 3 3 I Input, Channel2 GND1 4 4 ― GND connection for VDD1, side 1 GND2 5 5 ― GND connection for VDD2, side 2 VO2 6 6 O Output, Channel2 VO1 7 2 O Output, Channel1 VDD2 8 8 ― Power Supply, side 2 © 2 0 2 6 3 2026-09-08 Toshiba Electronic Devices & Storage Corporation Rev.1.8
