Datasheet DCL320C00 (Toshiba) - 5
| Manufacturer | Toshiba |
| Description | Low power, 25Mbps mid speed, 2 channel Digital Isolator in SOIC8-N package |
| Pages / Page | 21 / 5 — 7. Absolute Maximum Ratings (Ta = 25 °C). 8. Recommended Operating … |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
7. Absolute Maximum Ratings (Ta = 25 °C). 8. Recommended Operating Conditions (Note)
Model Line for this Datasheet
Text Version of Document
DCL32xx00

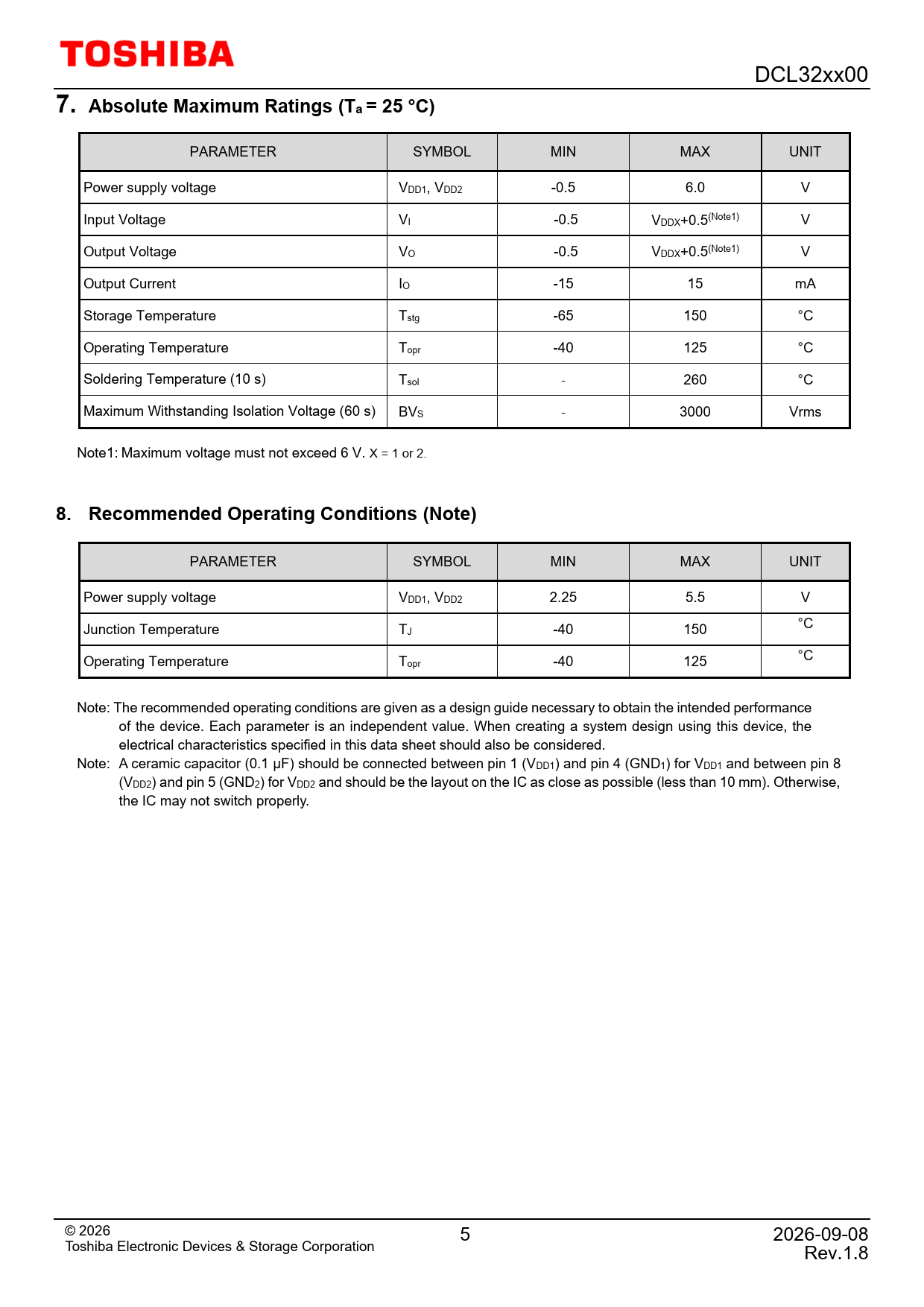

7. Absolute Maximum Ratings (Ta = 25 °C)
PARAMETER SYMBOL MIN MAX UNIT Power supply voltage VDD1, VDD2 -0.5 6.0 V Input Voltage VI -0.5 VDDX+0.5(Note1) V Output Voltage VO -0.5 VDDX+0.5(Note1) V Output Current IO -15 15 mA Storage Temperature Tstg -65 150 °C Operating Temperature Topr -40 125 °C Soldering Temperature (10 s) Tsol - 260 °C Maximum Withstanding Isolation Voltage (60 s) BVS - 3000 Vrms Note1: Maximum voltage must not exceed 6 V. X = 1 or 2.
8. Recommended Operating Conditions (Note)
PARAMETER SYMBOL MIN MAX UNIT Power supply voltage VDD1, VDD2 2.25 5.5 V Junction Temperature TJ -40 150 °C Operating Temperature Topr -40 125 °C Note: The recommended operating conditions are given as a design guide necessary to obtain the intended performance of the device. Each parameter is an independent value. When creating a system design using this device, the electrical characteristics specified in this data sheet should also be considered. Note: A ceramic capacitor (0.1 μF) should be connected between pin 1 (VDD1) and pin 4 (GND1) for VDD1 and between pin 8 (VDD2) and pin 5 (GND2) for VDD2 and should be the layout on the IC as close as possible (less than 10 mm). Otherwise, the IC may not switch properly. © 2 0 2 6 5 2026-09-08 Toshiba Electronic Devices & Storage Corporation Rev.1.8
7. Absolute Maximum Ratings (Ta = 25 °C)
PARAMETER SYMBOL MIN MAX UNIT Power supply voltage VDD1, VDD2 -0.5 6.0 V Input Voltage VI -0.5 VDDX+0.5(Note1) V Output Voltage VO -0.5 VDDX+0.5(Note1) V Output Current IO -15 15 mA Storage Temperature Tstg -65 150 °C Operating Temperature Topr -40 125 °C Soldering Temperature (10 s) Tsol - 260 °C Maximum Withstanding Isolation Voltage (60 s) BVS - 3000 Vrms Note1: Maximum voltage must not exceed 6 V. X = 1 or 2.
8. Recommended Operating Conditions (Note)
PARAMETER SYMBOL MIN MAX UNIT Power supply voltage VDD1, VDD2 2.25 5.5 V Junction Temperature TJ -40 150 °C Operating Temperature Topr -40 125 °C Note: The recommended operating conditions are given as a design guide necessary to obtain the intended performance of the device. Each parameter is an independent value. When creating a system design using this device, the electrical characteristics specified in this data sheet should also be considered. Note: A ceramic capacitor (0.1 μF) should be connected between pin 1 (VDD1) and pin 4 (GND1) for VDD1 and between pin 8 (VDD2) and pin 5 (GND2) for VDD2 and should be the layout on the IC as close as possible (less than 10 mm). Otherwise, the IC may not switch properly. © 2 0 2 6 5 2026-09-08 Toshiba Electronic Devices & Storage Corporation Rev.1.8
