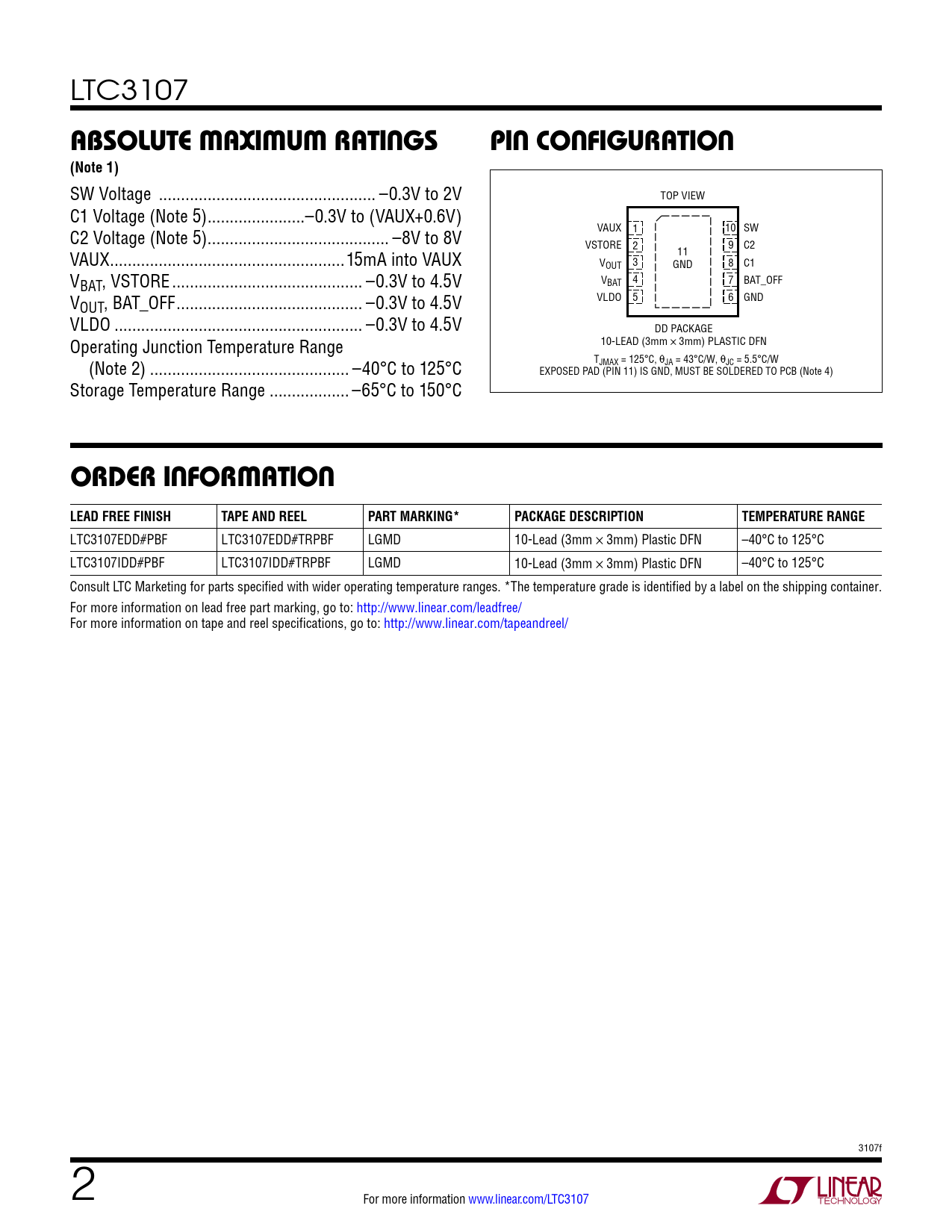

absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LTC3107
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
SW Voltage ... –0.3V to 2V TOP VIEW C1 Voltage (Note 5) ..–0.3V to (VAUX+0.6V) C2 Voltage (Note 5) ... –8V to 8V VAUX 1 10 SW VSTORE 2 9 C2 VAUX ...15mA into VAUX 11 VOUT 3 GND 8 C1 VBAT, VSTORE ... –0.3V to 4.5V VBAT 4 7 BAT_OFF V VLDO 5 6 GND OUT, BAT_OFF .. –0.3V to 4.5V VLDO .. –0.3V to 4.5V DD PACKAGE Operating Junction Temperature Range 10-LEAD (3mm × 3mm) PLASTIC DFN (Note 2) ... –40°C to 125°C TJMAX = 125°C, θJA = 43°C/W, θJC = 5.5°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB (Note 4) Storage Temperature Range .. –65°C to 150°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3107EDD#PBF LTC3107EDD#TRPBF LGMD 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3107IDD#PBF LTC3107IDD#TRPBF LGMD 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3107f 2 For more information www.linear.com/LTC3107 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
