Datasheet AD7980 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 16-Bit, 1 MSPS, PulSAR ADC in MSOP/LFCSP |
| Pages / Page | 29 / 6 — Data Sheet. AD7980. TIMING SPECIFICATIONS. Table 4. Parameter. Symbol. … |
| Revision | F |
| File Format / Size | PDF / 877 Kb |
| Document Language | English |
Data Sheet. AD7980. TIMING SPECIFICATIONS. Table 4. Parameter. Symbol. Min. Typ. Max. Unit. 500µA. Y% VIO1. X% VIO1. tDELAY. V 2. TO SDO. 1.4V. 20pF
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6

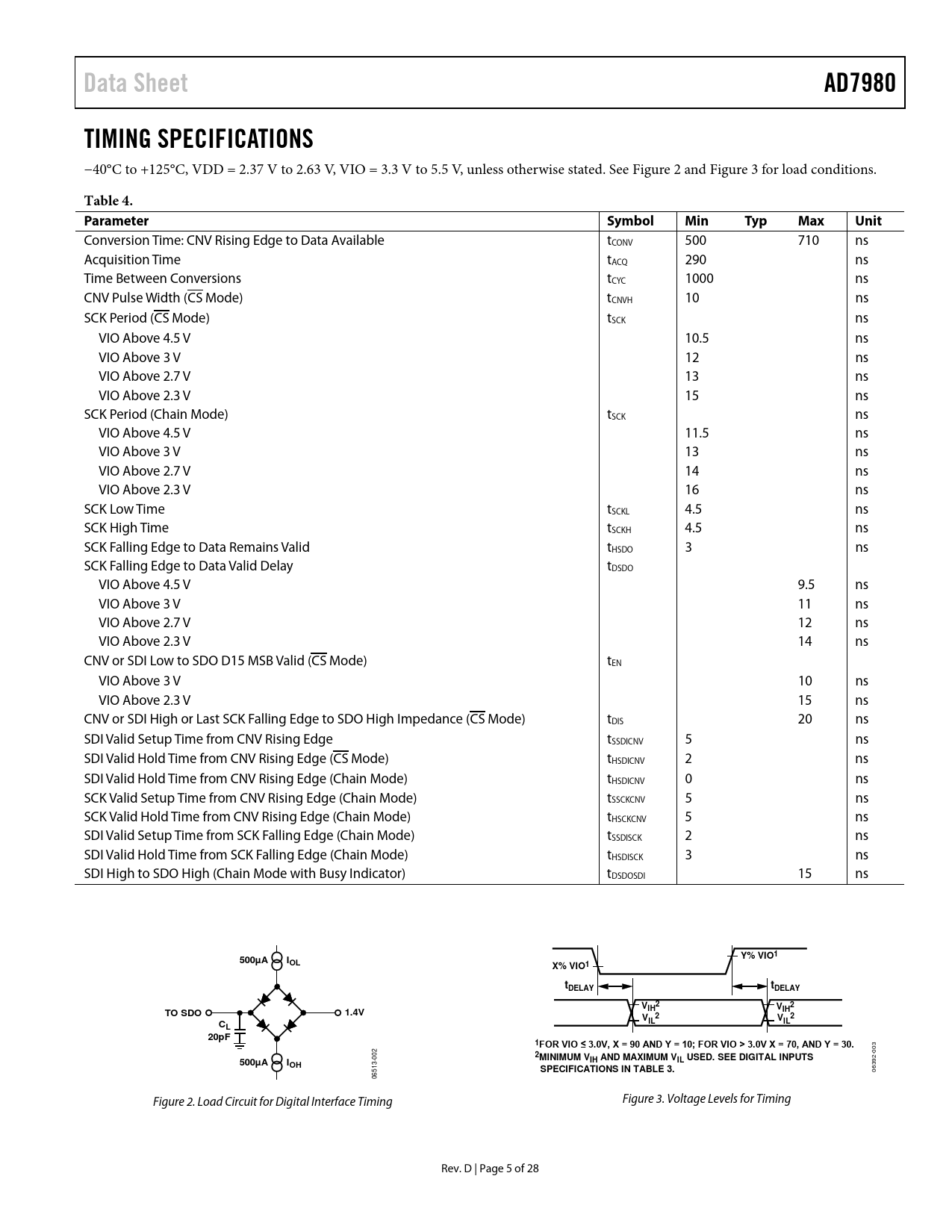

Data Sheet AD7980 TIMING SPECIFICATIONS
−40°C to +125°C, VDD = 2.37 V to 2.63 V, VIO = 3.3 V to 5.5 V, unless otherwise stated. See Figure 2 and Figure 3 for load conditions.
Table 4. Parameter Symbol Min Typ Max Unit
Conversion Time: CNV Rising Edge to Data Available tCONV 500 710 ns Acquisition Time tACQ 290 ns Time Between Conversions tCYC 1000 ns CNV Pulse Width (CS Mode) tCNVH 10 ns SCK Period (CS Mode) tSCK ns VIO Above 4.5 V 10.5 ns VIO Above 3 V 12 ns VIO Above 2.7 V 13 ns VIO Above 2.3 V 15 ns SCK Period (Chain Mode) tSCK ns VIO Above 4.5 V 11.5 ns VIO Above 3 V 13 ns VIO Above 2.7 V 14 ns VIO Above 2.3 V 16 ns SCK Low Time tSCKL 4.5 ns SCK High Time tSCKH 4.5 ns SCK Falling Edge to Data Remains Valid tHSDO 3 ns SCK Falling Edge to Data Valid Delay tDSDO VIO Above 4.5 V 9.5 ns VIO Above 3 V 11 ns VIO Above 2.7 V 12 ns VIO Above 2.3 V 14 ns CNV or SDI Low to SDO D15 MSB Valid (CS Mode) tEN VIO Above 3 V 10 ns VIO Above 2.3 V 15 ns CNV or SDI High or Last SCK Falling Edge to SDO High Impedance (CS Mode) tDIS 20 ns SDI Valid Setup Time from CNV Rising Edge tSSDICNV 5 ns SDI Valid Hold Time from CNV Rising Edge (CS Mode) tHSDICNV 2 ns SDI Valid Hold Time from CNV Rising Edge (Chain Mode) tHSDICNV 0 ns SCK Valid Setup Time from CNV Rising Edge (Chain Mode) tSSCKCNV 5 ns SCK Valid Hold Time from CNV Rising Edge (Chain Mode) tHSCKCNV 5 ns SDI Valid Setup Time from SCK Falling Edge (Chain Mode) tSSDISCK 2 ns SDI Valid Hold Time from SCK Falling Edge (Chain Mode) tHSDISCK 3 ns SDI High to SDO High (Chain Mode with Busy Indicator) tDSDOSDI 15 ns
500µA I Y% VIO1 OL X% VIO1 tDELAY tDELAY V 2 IH V 2 TO SDO 1.4V IH 2 V 2 V C IL IL L 20pF 1FOR VIO ≤ 3.0V, X = 90 AND Y = 10; FOR VIO > 3.0V X = 70, AND Y = 30.
003 002
2MINIMUM V 500µA I IH AND MAXIMUM VIL USED. SEE DIGITAL INPUTS OH SPECIFICATIONS IN TABLE 3.
06392- 06513- Figure 2. Load Circuit for Digital Interface Timing Figure 3. Voltage Levels for Timing Rev. D | Page 5 of 28 Document Outline FEATURES APPLICATIONS APPLICATION DIAGRAM EXAMPLE GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION Transfer Functions TYPICAL CONNECTION DIAGRAM ANALOG INPUT DRIVER AMPLIFIER CHOICE VOLTAGE REFERENCE INPUT POWER SUPPLY DIGITAL INTERFACE MODE, 3-CS WIRE, WITHOUT BUSY INDICATOR CS MODE 3-WIRE WITH BUSY INDICATOR CS MODE 4-WIRE, WITHOUT BUSY INDICATOR CS MODE 4-WIRE WITH BUSY INDICATOR CS CHAIN MODE, WITHOUT BUSY INDICATOR CS CHAIN MODE WITH BUSY INDICATOR APPLICATION HINTS LAYOUT EVALUATING THE PERFORMANCE OF THE AD7980 OUTLINE DIMENSIONS ORDERING GUIDE NOTES NOTES NOTES
