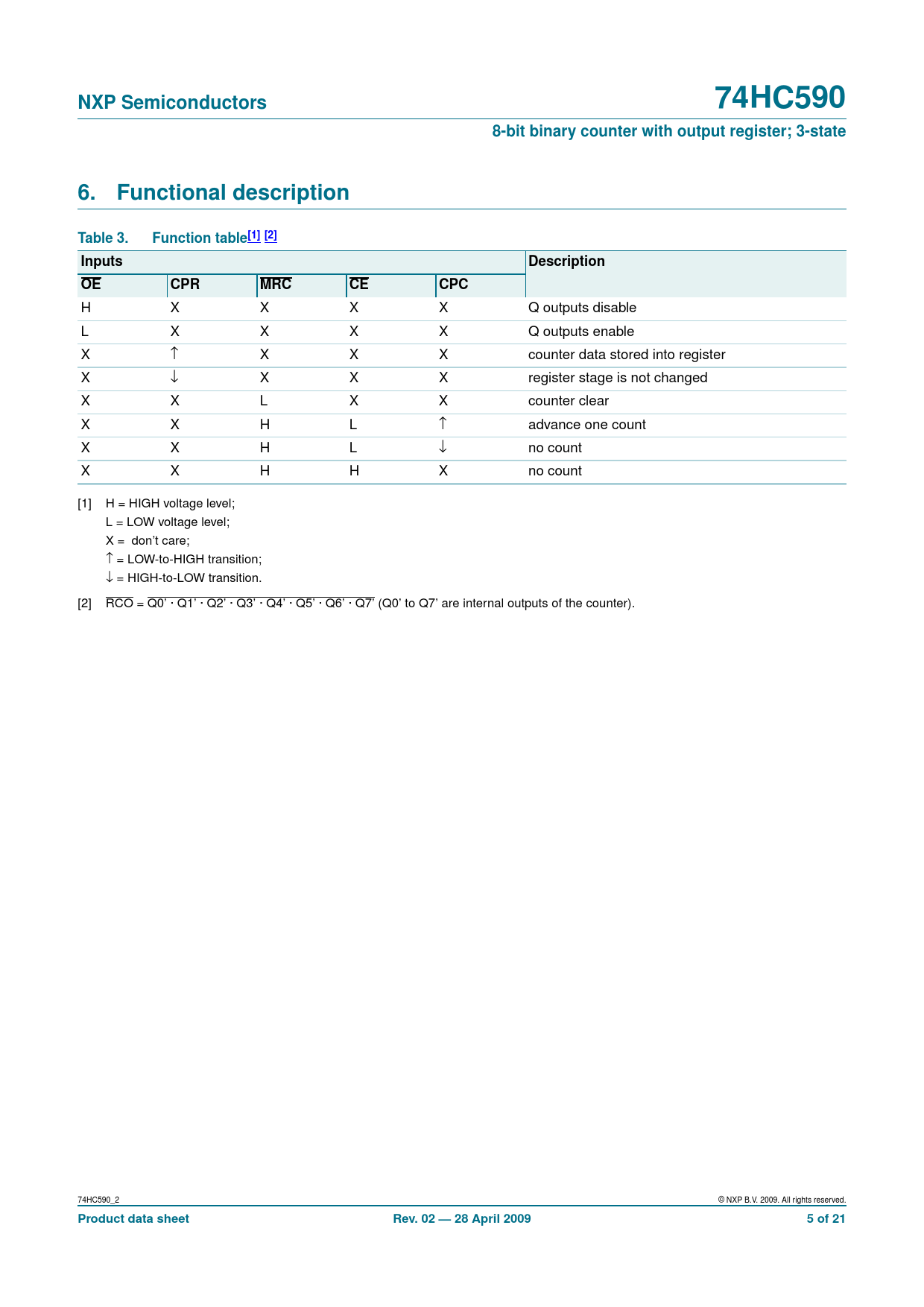

NXP Semiconductors 74HC590 8-bit binary counter with output register; 3-state 6. Functional description Table 3. Function table[1] [2] Inputs Description OE CPR MRC CE CPC
H X X X X Q outputs disable L X X X X Q outputs enable X ↑ X X X counter data stored into register X ↓ X X X register stage is not changed X X L X X counter clear X X H L ↑ advance one count X X H L ↓ no count X X H H X no count [1] H = HIGH voltage level; L = LOW voltage level; X = don’t care; ↑ = LOW-to-HIGH transition; ↓ = HIGH-to-LOW transition. [2] RCO = Q0’ · Q1’ · Q2’ · Q3’ · Q4’ · Q5’ · Q6’ · Q7’ (Q0’ to Q7’ are internal outputs of the counter). 74HC590_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 28 April 2009 5 of 21
