Datasheet Texas Instruments LMV821, LMV822, LMV824 (Texas Instruments) - 2

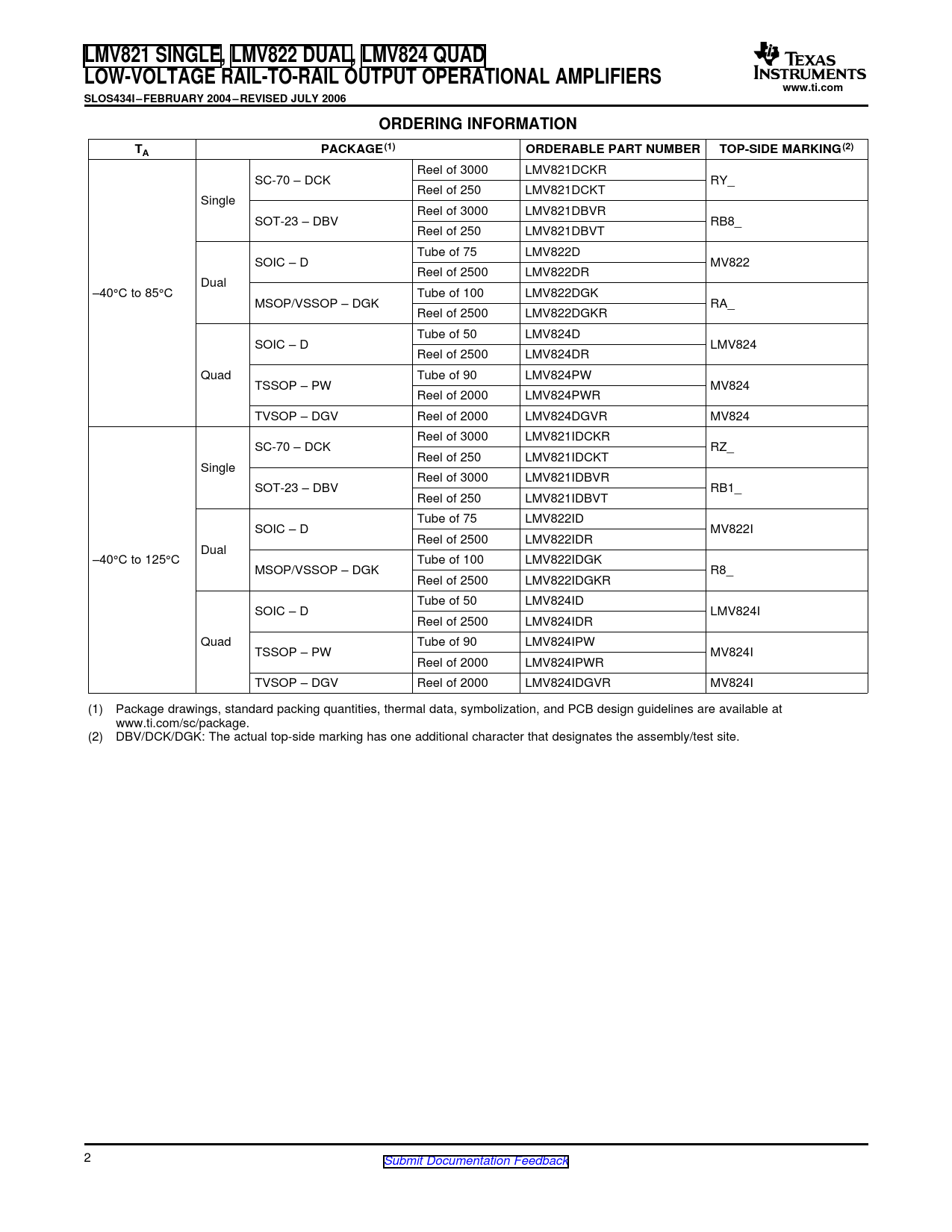

LMV821 SINGLE , LMV822 DUAL, LMV824 QUAD LOW-VOLTAGE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS www.ti.com SLOS434I – FEBRUARY 2004 – REVISED JULY 2006 ORDERING INFORMATION TA PACKAGE(1) ORDERABLE PART NUMBER TOP-SIDE MARKING(2)
Reel of 3000 LMV821DCKR SC-70 – DCK RY_ Reel of 250 LMV821DCKT Single Reel of 3000 LMV821DBVR SOT-23 – DBV RB8_ Reel of 250 LMV821DBVT Tube of 75 LMV822D SOIC – D MV822 Reel of 2500 LMV822DR Dual –40°C to 85°C Tube of 100 LMV822DGK MSOP/VSSOP – DGK RA_ Reel of 2500 LMV822DGKR Tube of 50 LMV824D SOIC – D LMV824 Reel of 2500 LMV824DR Quad Tube of 90 LMV824PW TSSOP – PW MV824 Reel of 2000 LMV824PWR TVSOP – DGV Reel of 2000 LMV824DGVR MV824 Reel of 3000 LMV821IDCKR SC-70 – DCK RZ_ Reel of 250 LMV821IDCKT Single Reel of 3000 LMV821IDBVR SOT-23 – DBV RB1_ Reel of 250 LMV821IDBVT Tube of 75 LMV822ID SOIC – D MV822I Reel of 2500 LMV822IDR Dual –40°C to 125°C Tube of 100 LMV822IDGK MSOP/VSSOP – DGK R8_ Reel of 2500 LMV822IDGKR Tube of 50 LMV824ID SOIC – D LMV824I Reel of 2500 LMV824IDR Quad Tube of 90 LMV824IPW TSSOP – PW MV824I Reel of 2000 LMV824IPWR TVSOP – DGV Reel of 2000 LMV824IDGVR MV824I (1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package. (2) DBV/DCK/DGK: The actual top-side marking has one additional character that designates the assembly/test site. 2 Submit Documentation Feedback Document Outline FEATURES DESCRIPTION/ORDERING INFORMATION Absolute Maximum Ratings Recommended Operating Conditions LMV8xx 2.5-V Electrical Characteristics LMV8xxI 2.5-V Electrical Characteristics LMV8xx 2.7-V Electrical Characteristics LMV8xxI 2.7-V Electrical Characteristics LMV8xx 5-V Electrical Characteristics LMV8xxI 5-V Electrical Characteristics TYPICAL CHARACTERISTICS
