Datasheet Texas Instruments LMV821, LMV822, LMV824 (Texas Instruments) - 5
| Manufacturer | Texas Instruments |
| Pages / Page | 35 / 5 — LMV821 SINGLE,. LMV822 DUAL,. LMV824 QUAD. LOW-VOLTAGE RAIL-TO-RAIL … |
| File Format / Size | PDF / 738 Kb |
| Document Language | English |
LMV821 SINGLE,. LMV822 DUAL,. LMV824 QUAD. LOW-VOLTAGE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS. www.ti.com
Text Version of Document

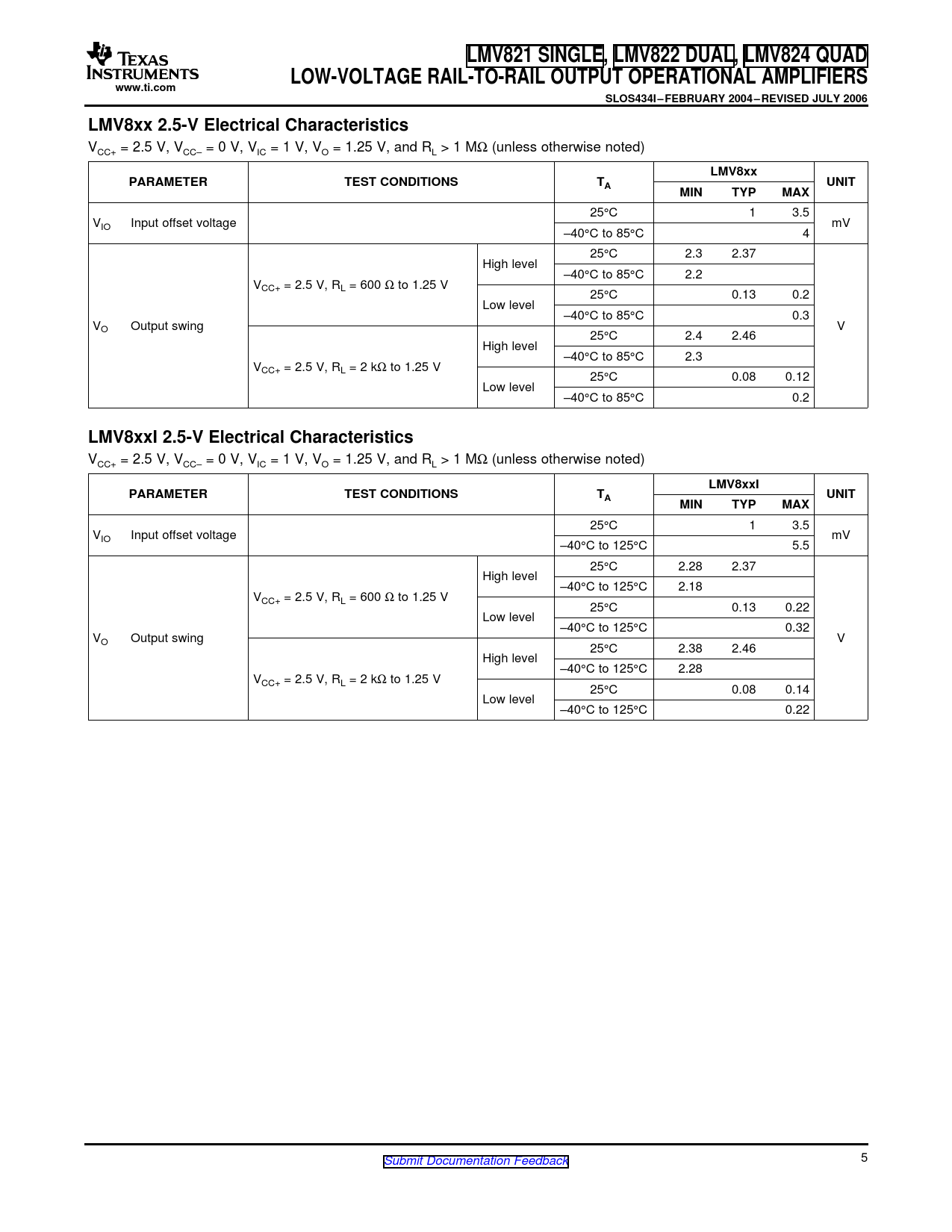

LMV821 SINGLE, LMV822 DUAL, LMV824 QUAD LOW-VOLTAGE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS www.ti.com SLOS434I – FEBRUARY 2004 – REVISED JULY 2006 LMV8xx 2.5-V Electrical Characteristics
V = 2.5 V, V = 0 V, V = 1 V, V = 1.25 V, and R > 1 MΩ (unless otherwise noted) CC+ CC– IC O L
LMV8xx PARAMETER TEST CONDITIONS TA UNIT MIN TYP MAX
25°C 1 3.5 VIO Input offset voltage mV –40°C to 85°C 4 25°C 2.3 2.37 High level –40°C to 85°C 2.2 VCC+ = 2.5 V, RL = 600 Ω to 1.25 V 25°C 0.13 0.2 Low level –40°C to 85°C 0.3 VO Output swing V 25°C 2.4 2.46 High level –40°C to 85°C 2.3 VCC+ = 2.5 V, RL = 2 kΩ to 1.25 V 25°C 0.08 0.12 Low level –40°C to 85°C 0.2
LMV8xxI 2.5-V Electrical Characteristics
V = 2.5 V, V = 0 V, V = 1 V, V = 1.25 V, and R > 1 MΩ (unless otherwise noted) CC+ CC– IC O L
LMV8xxI PARAMETER TEST CONDITIONS TA UNIT MIN TYP MAX
25°C 1 3.5 VIO Input offset voltage mV –40°C to 125°C 5.5 25°C 2.28 2.37 High level –40°C to 125°C 2.18 VCC+ = 2.5 V, RL = 600 Ω to 1.25 V 25°C 0.13 0.22 Low level –40°C to 125°C 0.32 VO Output swing V 25°C 2.38 2.46 High level –40°C to 125°C 2.28 VCC+ = 2.5 V, RL = 2 kΩ to 1.25 V 25°C 0.08 0.14 Low level –40°C to 125°C 0.22 5 Submit Documentation Feedback Document Outline FEATURES DESCRIPTION/ORDERING INFORMATION Absolute Maximum Ratings Recommended Operating Conditions LMV8xx 2.5-V Electrical Characteristics LMV8xxI 2.5-V Electrical Characteristics LMV8xx 2.7-V Electrical Characteristics LMV8xxI 2.7-V Electrical Characteristics LMV8xx 5-V Electrical Characteristics LMV8xxI 5-V Electrical Characteristics TYPICAL CHARACTERISTICS
V = 2.5 V, V = 0 V, V = 1 V, V = 1.25 V, and R > 1 MΩ (unless otherwise noted) CC+ CC– IC O L
LMV8xx PARAMETER TEST CONDITIONS TA UNIT MIN TYP MAX
25°C 1 3.5 VIO Input offset voltage mV –40°C to 85°C 4 25°C 2.3 2.37 High level –40°C to 85°C 2.2 VCC+ = 2.5 V, RL = 600 Ω to 1.25 V 25°C 0.13 0.2 Low level –40°C to 85°C 0.3 VO Output swing V 25°C 2.4 2.46 High level –40°C to 85°C 2.3 VCC+ = 2.5 V, RL = 2 kΩ to 1.25 V 25°C 0.08 0.12 Low level –40°C to 85°C 0.2
LMV8xxI 2.5-V Electrical Characteristics
V = 2.5 V, V = 0 V, V = 1 V, V = 1.25 V, and R > 1 MΩ (unless otherwise noted) CC+ CC– IC O L
LMV8xxI PARAMETER TEST CONDITIONS TA UNIT MIN TYP MAX
25°C 1 3.5 VIO Input offset voltage mV –40°C to 125°C 5.5 25°C 2.28 2.37 High level –40°C to 125°C 2.18 VCC+ = 2.5 V, RL = 600 Ω to 1.25 V 25°C 0.13 0.22 Low level –40°C to 125°C 0.32 VO Output swing V 25°C 2.38 2.46 High level –40°C to 125°C 2.28 VCC+ = 2.5 V, RL = 2 kΩ to 1.25 V 25°C 0.08 0.14 Low level –40°C to 125°C 0.22 5 Submit Documentation Feedback Document Outline FEATURES DESCRIPTION/ORDERING INFORMATION Absolute Maximum Ratings Recommended Operating Conditions LMV8xx 2.5-V Electrical Characteristics LMV8xxI 2.5-V Electrical Characteristics LMV8xx 2.7-V Electrical Characteristics LMV8xxI 2.7-V Electrical Characteristics LMV8xx 5-V Electrical Characteristics LMV8xxI 5-V Electrical Characteristics TYPICAL CHARACTERISTICS
