Datasheet Texas Instruments LMV821, LMV822, LMV824 (Texas Instruments) - 8
| Manufacturer | Texas Instruments |
| Pages / Page | 35 / 8 — LMV821 SINGLE. , LMV822 DUAL,. LMV824 QUAD. LOW-VOLTAGE RAIL-TO-RAIL … |
| File Format / Size | PDF / 738 Kb |
| Document Language | English |
LMV821 SINGLE. , LMV822 DUAL,. LMV824 QUAD. LOW-VOLTAGE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS. www.ti.com
Text Version of Document

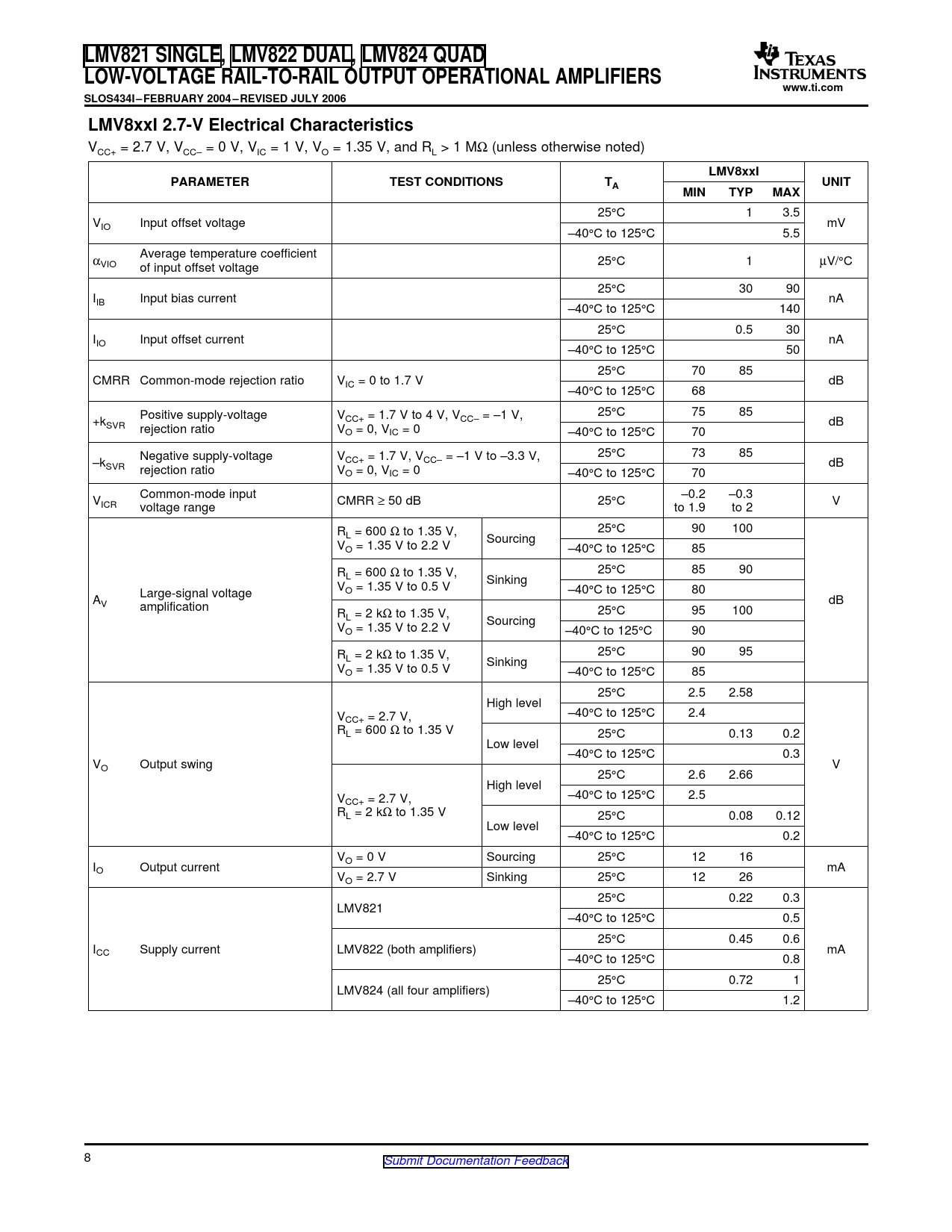

LMV821 SINGLE , LMV822 DUAL, LMV824 QUAD LOW-VOLTAGE RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS www.ti.com SLOS434I – FEBRUARY 2004 – REVISED JULY 2006 LMV8xxI 2.7-V Electrical Characteristics
V = 2.7 V, V = 0 V, V = 1 V, V = 1.35 V, and R > 1 MΩ (unless otherwise noted) CC+ CC– IC O L
LMV8xxI PARAMETER TEST CONDITIONS TA UNIT MIN TYP MAX
25°C 1 3.5 VIO Input offset voltage mV –40°C to 125°C 5.5 Average temperature coefficient αVIO 25°C 1 µV/°C of input offset voltage 25°C 30 90 IIB Input bias current nA –40°C to 125°C 140 25°C 0.5 30 IIO Input offset current nA –40°C to 125°C 50 25°C 70 85 CMRR Common-mode rejection ratio VIC = 0 to 1.7 V dB –40°C to 125°C 68 25°C 75 85 Positive supply-voltage VCC+ = 1.7 V to 4 V, VCC– = –1 V, +kSVR dB rejection ratio VO = 0, VIC = 0 –40°C to 125°C 70 25°C 73 85 Negative supply-voltage VCC+ = 1.7 V, VCC– = –1 V to –3.3 V, –kSVR dB rejection ratio VO = 0, VIC = 0 –40°C to 125°C 70 Common-mode input –0.2 –0.3 VICR CMRR ≥ 50 dB 25°C V voltage range to 1.9 to 2 25°C 90 100 RL = 600 Ω to 1.35 V, Sourcing VO = 1.35 V to 2.2 V –40°C to 125°C 85 25°C 85 90 RL = 600 Ω to 1.35 V, Sinking VO = 1.35 V to 0.5 V –40°C to 125°C 80 Large-signal voltage AV dB amplification 25°C 95 100 RL = 2 kΩ to 1.35 V, Sourcing VO = 1.35 V to 2.2 V –40°C to 125°C 90 25°C 90 95 RL = 2 kΩ to 1.35 V, Sinking VO = 1.35 V to 0.5 V –40°C to 125°C 85 25°C 2.5 2.58 High level –40°C to 125°C 2.4 VCC+ = 2.7 V, RL = 600 Ω to 1.35 V 25°C 0.13 0.2 Low level –40°C to 125°C 0.3 VO Output swing V 25°C 2.6 2.66 High level –40°C to 125°C 2.5 VCC+ = 2.7 V, RL = 2 kΩ to 1.35 V 25°C 0.08 0.12 Low level –40°C to 125°C 0.2 VO = 0 V Sourcing 25°C 12 16 IO Output current mA VO = 2.7 V Sinking 25°C 12 26 25°C 0.22 0.3 LMV821 –40°C to 125°C 0.5 25°C 0.45 0.6 ICC Supply current LMV822 (both amplifiers) mA –40°C to 125°C 0.8 25°C 0.72 1 LMV824 (all four amplifiers) –40°C to 125°C 1.2 8 Submit Documentation Feedback Document Outline FEATURES DESCRIPTION/ORDERING INFORMATION Absolute Maximum Ratings Recommended Operating Conditions LMV8xx 2.5-V Electrical Characteristics LMV8xxI 2.5-V Electrical Characteristics LMV8xx 2.7-V Electrical Characteristics LMV8xxI 2.7-V Electrical Characteristics LMV8xx 5-V Electrical Characteristics LMV8xxI 5-V Electrical Characteristics TYPICAL CHARACTERISTICS
