LM6181. www.ti.com. Typical Performance Characteristics (continued). Figure 7. Inverting Gain Frequency Response VS = ±15V;
Model Line for this Datasheet
Text Version of Document
LM6181
SNOS634C – MAY 1998 – REVISED SEPTEMBER 2014
www.ti.com Typical Performance Characteristics (continued)
TA = 25°C unless otherwise noted

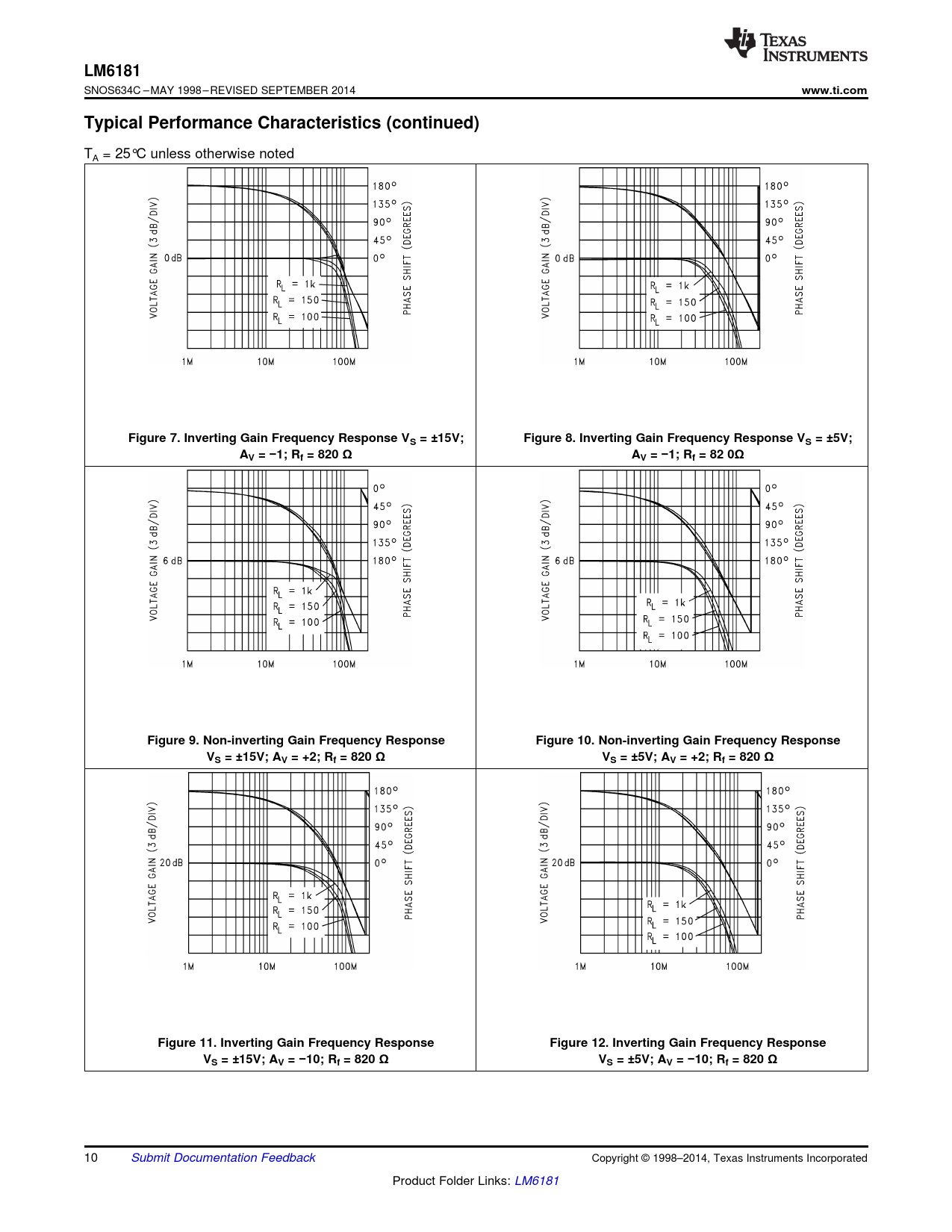

Figure 7. Inverting Gain Frequency Response VS = ±15V; Figure 8. Inverting Gain Frequency Response VS = ±5V; AV = −1; Rf = 820 Ω AV = −1; Rf = 82 0Ω Figure 9. Non-inverting Gain Frequency Response Figure 10. Non-inverting Gain Frequency Response VS = ±15V; AV = +2; Rf = 820 Ω VS = ±5V; AV = +2; Rf = 820 Ω Figure 11. Inverting Gain Frequency Response Figure 12. Inverting Gain Frequency Response VS = ±15V; AV = −10; Rf = 820 Ω VS = ±5V; AV = −10; Rf = 820 Ω
10 Submit Documentation Feedback Copyright © 1998–2014, Texas Instruments Incorporated Product Folder Links: LM6181 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 Handling Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 ±15V DC Electrical Characteristics 6.6 ±15V AC Electrical Characteristics 6.7 ±5V DC Electrical Characteristics 6.8 ±5V AC Electrical Characteristics 6.9 Typical Performance Characteristics 7 Typical Applications 7.1 Current Feedback Topology 7.2 Power Supply Bypassing and Layout Considerations 7.3 Feedback Resistor Selection: Rf 7.4 Slew Rate Considerations 7.5 Driving Capacitive Loads 7.6 Capacitive Feedback 8 Application and Implementation 8.1 Typical Application 8.1.1 Typical Performance Characteristics 8.1.1.1 Overdrive Recovery 9 Device and Documentation Support 9.1 Trademarks 9.2 Electrostatic Discharge Caution 9.3 Glossary 10 Mechanical, Packaging, and Orderable Information
