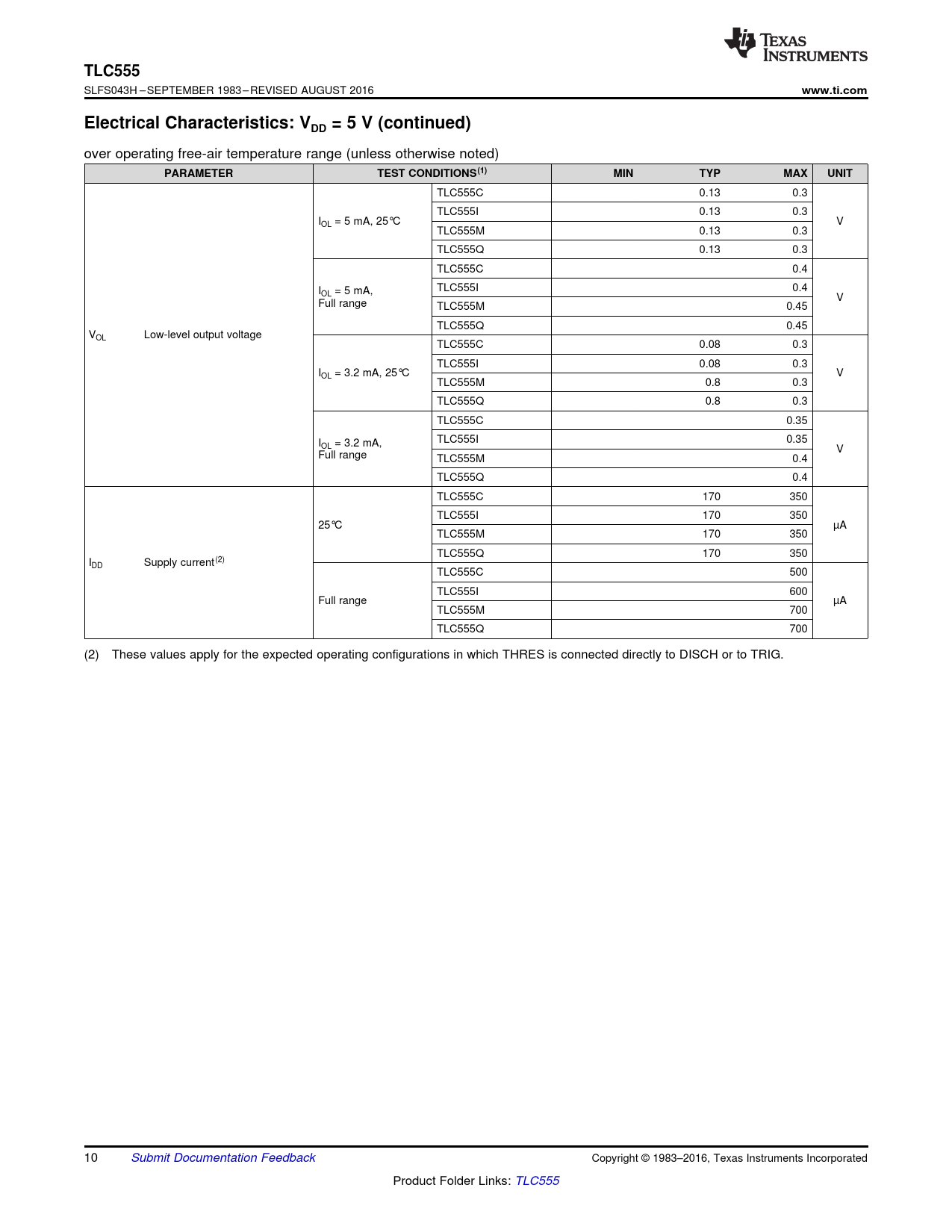

TLC555
SLFS043H – SEPTEMBER 1983 – REVISED AUGUST 2016
www.ti.com Electrical Characteristics: VDD = 5 V (continued)
over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS(1) MIN TYP MAX UNIT
TLC555C 0.13 0.3 TLC555I 0.13 0.3 IOL = 5 mA, 25°C V TLC555M 0.13 0.3 TLC555Q 0.13 0.3 TLC555C 0.4 I TLC555I 0.4 OL = 5 mA, V Full range TLC555M 0.45 TLC555Q 0.45 VOL Low-level output voltage TLC555C 0.08 0.3 TLC555I 0.08 0.3 IOL = 3.2 mA, 25°C V TLC555M 0.8 0.3 TLC555Q 0.8 0.3 TLC555C 0.35 I TLC555I 0.35 OL = 3.2 mA, V Full range TLC555M 0.4 TLC555Q 0.4 TLC555C 170 350 TLC555I 170 350 25°C µA TLC555M 170 350 TLC555Q 170 350 IDD Supply current(2) TLC555C 500 TLC555I 600 Full range µA TLC555M 700 TLC555Q 700 (2) These values apply for the expected operating configurations in which THRES is connected directly to DISCH or to TRIG. 10 Submit Documentation Feedback Copyright © 1983–2016, Texas Instruments Incorporated Product Folder Links: TLC555 Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Device Comparison Table 6 Pin Configuration and Functions 7 Specifications 7.1 Absolute Maximum Ratings 7.2 Recommended Operating Conditions 7.3 Thermal Information 7.4 Electrical Characteristics: VDD = 2 V for TLC555C, VDD = 3 V for TLC555I 7.5 Electrical Characteristics: VDD = 5 V 7.6 Electrical Characteristics: VDD = 15 V 7.7 Electrical Characteristics: VDD = 5 V 7.8 Typical Characteristics 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Monostable Operation 8.3.2 Astable Operation 8.3.3 Frequency Divider 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.2 Typical Applications 9.2.1 Missing-Pulse Detector 9.2.1.1 Design Requirements 9.2.1.2 Detailed Design Procedure 9.2.1.3 Application Curve 9.2.2 Pulse-Width Modulation 9.2.2.1 Design Requirements 9.2.2.2 Detailed Design Procedure 9.2.2.3 Application Curve 9.2.3 Pulse-Position Modulation 9.2.3.1 Design Requirements 9.2.3.2 Detailed Design Procedure 9.2.3.3 Application Curve 9.2.4 Sequential Timer 9.2.4.1 Design Requirements 9.2.4.2 Detailed Design Procedure 9.2.4.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Example 12 Device and Documentation Support 12.1 Receiving Notification of Documentation Updates 12.2 Community Resources 12.3 Trademarks 12.4 Electrostatic Discharge Caution 12.5 Glossary 13 Mechanical, Packaging, and Orderable Information
