Datasheet TL074, TL074A -TL074B (STMicroelectronics) - 2

ManufacturerSTMicroelectronics
DescriptionLOW NOISE J-FET QUAD OPERATIONAL AMPLIFIERS
Pages / Page11 / 2 — TL074- TL074A - TL074B. SCHEMATIC DIAGRAM. ABSOLUTE MAXIMUM RATINGS. …
File Format / SizePDF / 302 Kb
Document LanguageEnglish

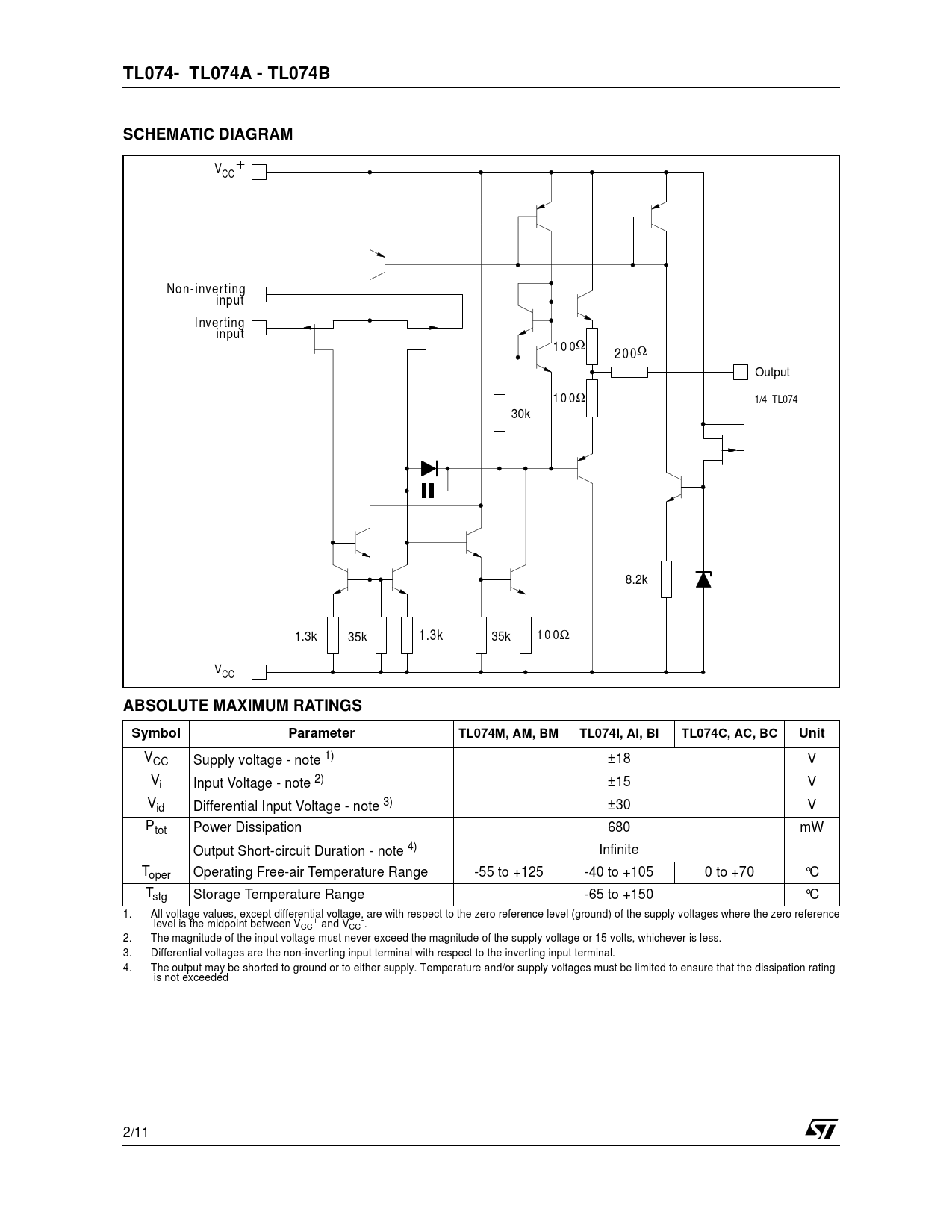

TL074- TL074A - TL074B. SCHEMATIC DIAGRAM. ABSOLUTE MAXIMUM RATINGS. Symbol. Parameter. TL074M, AM, BM. TL074I, AI, BI

TL074- TL074A - TL074B SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter TL074M, AM, BM TL074I, AI, BI

Text Version of Document

TL074- TL074A - TL074B SCHEMATIC DIAGRAM
VCC No n- inver ting input I nverting input 1 0 0Ω 2 0 0Ω Output 1 0 0Ω 1/4 TL074 30k 8.2k 1.3k 35k 1.3k 35k 1 0 0Ω VCC
ABSOLUTE MAXIMUM RATINGS Symbol Parameter TL074M, AM, BM TL074I, AI, BI TL074C, AC, BC Unit
VCC Supply voltage - note 1) ±18 V Vi Input Voltage - note 2) ±15 V Vid Differential Input Voltage - note 3) ±30 V Ptot Power Dissipation 680 mW Output Short-circuit Duration - note 4) Infinite Toper Operating Free-air Temperature Range -55 to +125 -40 to +105 0 to +70 °C Tstg Storage Temperature Range -65 to +150 °C 1. All voltage values, except differential voltage, are with respect to the zero reference level (ground) of the supply voltages where the zero reference level is the midpoint between V + - CC and VCC . 2. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts, whichever is less. 3. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal. 4. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded 2/11
