UC1846,. UC1847. , UC2846. UC2847,. UC3846. , UC3847. www.ti.com. Feature Description (continued)
Model Line for this Datasheet
Text Version of Document
link to page 9
UC1846, UC1847 , UC2846 UC2847, UC3846 , UC3847 www.ti.com
SLUS352C – JANUARY 1997 – REVISED DECEMBER 2015
Feature Description (continued)
A small RC filter may be required in some applications to reduce switch transients. Differential input allows remote, noise free sensing.

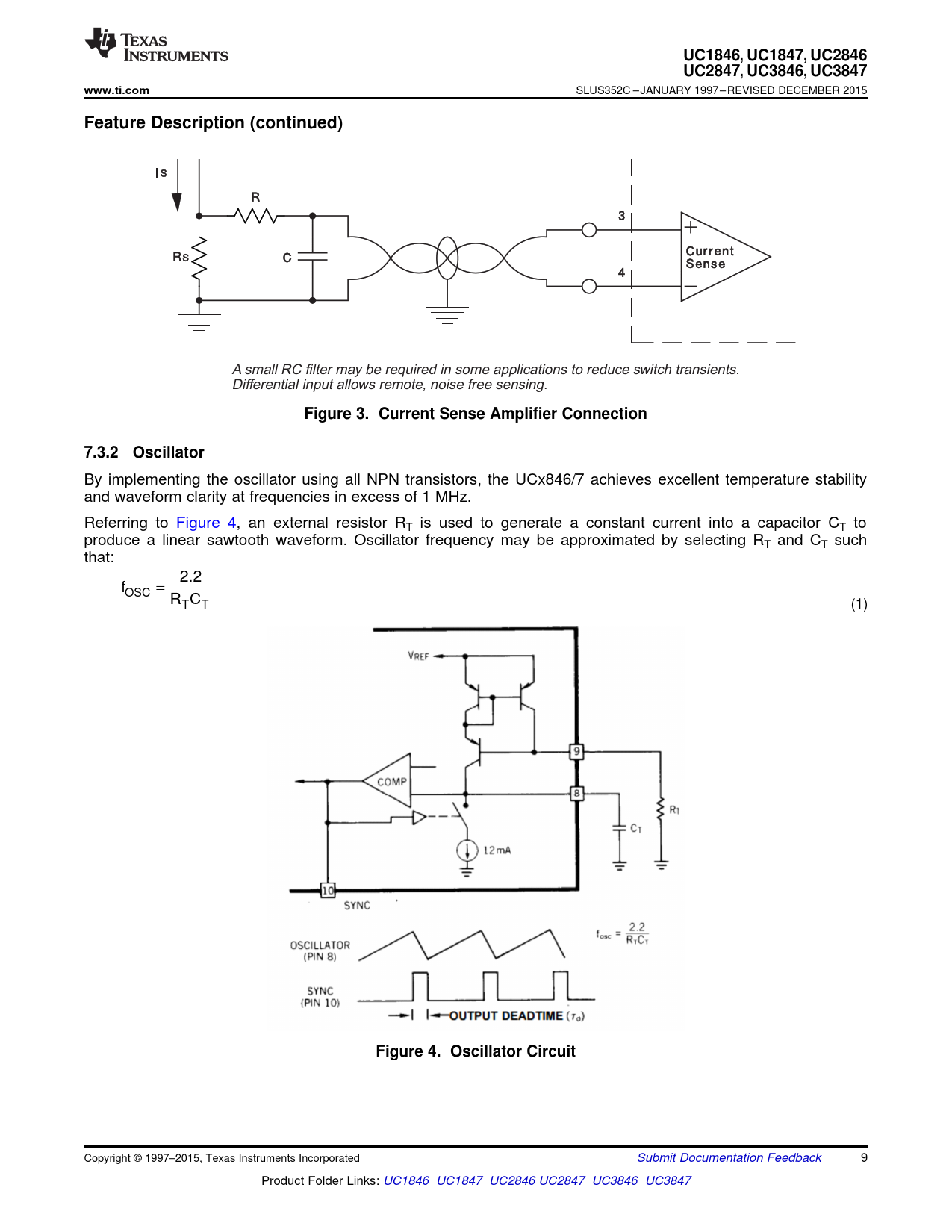

Figure 3. Current Sense Amplifier Connection 7.3.2 Oscillator
By implementing the oscillator using all NPN transistors, the UCx846/7 achieves excellent temperature stability and waveform clarity at frequencies in excess of 1 MHz. Referring to Figure 4, an external resistor RT is used to generate a constant current into a capacitor CT to produce a linear sawtooth waveform. Oscillator frequency may be approximated by selecting RT and CT such that: 2.2 OS f C RTCT (1)
Figure 4. Oscillator Circuit
