LM78L05. , LM78L09,. LM78L12. , LM78L15. , LM78L62,. LM78L82. www.ti.com. LM78LXX Series 3-Terminal Positive Regulators
Model Line for this Datasheet
Text Version of Document
LM78L05 , LM78L09, LM78L12 , LM78L15 , LM78L62, LM78L82 www.ti.com
SNVS754I – JANUARY 2000 – REVISED APRIL 2013

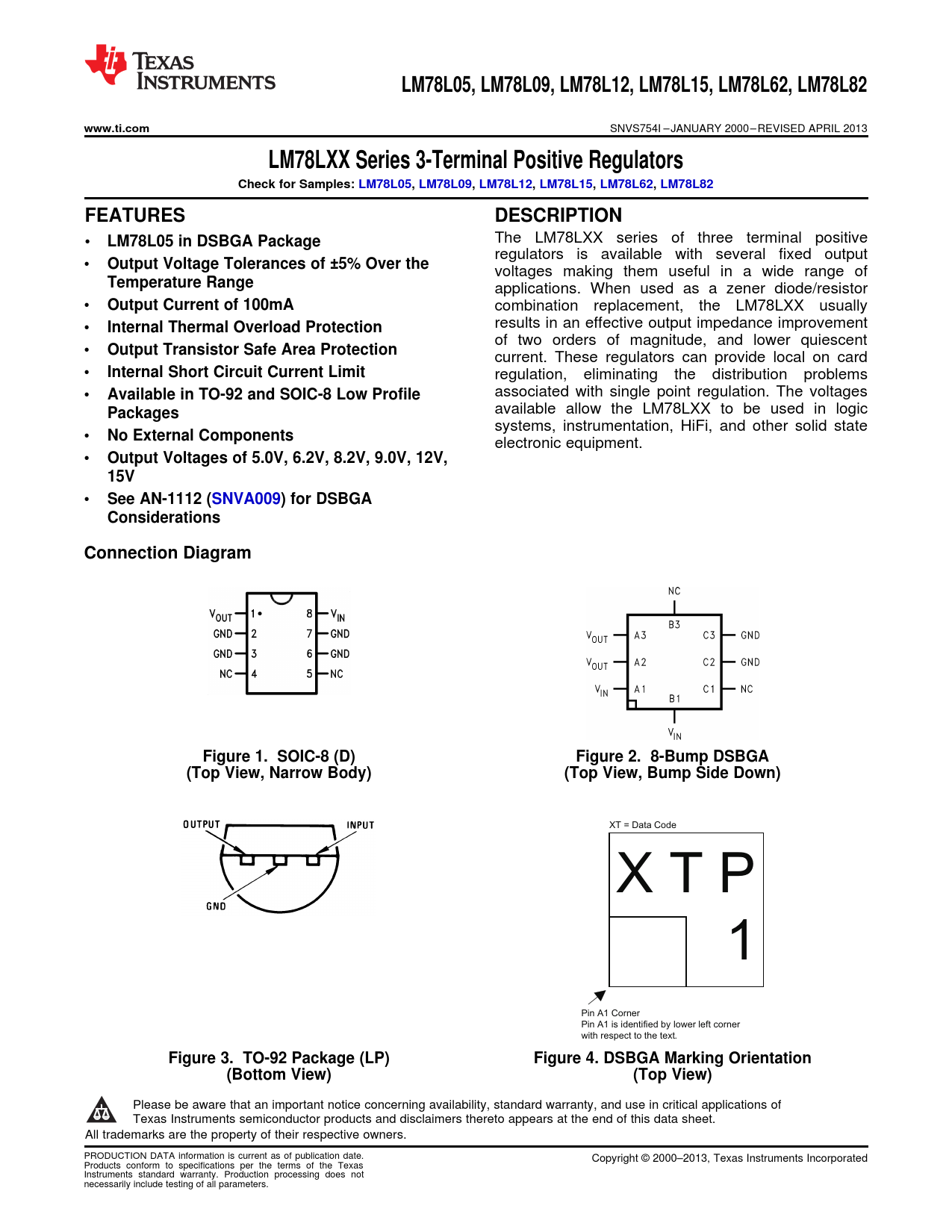

LM78LXX Series 3-Terminal Positive Regulators Check for Samples: LM78L05, LM78L09 , LM78L12 , LM78L15, LM78L62, LM78L82 FEATURES DESCRIPTION 1
The LM78LXX series of three terminal positive
• LM78L05 in DSBGA Package 2
regulators is available with several fixed output
• Output Voltage Tolerances of ±5% Over the
voltages making them useful in a wide range of
Temperature Range
applications. When used as a zener diode/resistor
• Output Current of 100mA
combination replacement, the LM78LXX usually results in an effective output impedance improvement
• Internal Thermal Overload Protection
of two orders of magnitude, and lower quiescent
• Output Transistor Safe Area Protection
current. These regulators can provide local on card
• Internal Short Circuit Current Limit
regulation, eliminating the distribution problems associated with single point regulation. The voltages
• Available in TO-92 and SOIC-8 Low Profile
available allow the LM78LXX to be used in logic
Packages
systems, instrumentation, HiFi, and other solid state
• No External Components
electronic equipment.
• Output Voltages of 5.0V, 6.2V, 8.2V, 9.0V, 12V, 15V • See AN-1112 (SNVA009) for DSBGA Considerations Connection Diagram Figure 1. SOIC-8 (D) Figure 2. 8-Bump DSBGA (Top View, Narrow Body) (Top View, Bump Side Down) . .
XT = Data Code X T P 1 Pin A1 Corner Pin A1 is identified by lower left corner with respect to the text.
Figure 3. TO-92 Package (LP) Figure 4. DSBGA Marking Orientation (Bottom View) (Top View)
1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the property of their respective owners. 2 PRODUCTION DATA information is current as of publication date. Copyright © 2000–2013, Texas Instruments Incorporated Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Document Outline FEATURES DESCRIPTION Connection Diagram DESCRIPTION (continued) Absolute Maximum Ratings LM78LXX Electrical Characteristics LM78L05AC / LM78L05I LM78LXX Electrical Characteristics LM78L62AC LM78LXX Electrical Characteristics LM78L82AC LM78LXX Electrical Characteristics LM78L09AC / LM78L09I LM78LXX Electrical Characteristics LM78L12AC LM78LXX Electrical Characteristics LM78L15AC Typical Performance Characteristics Equivalent Circuit Typical Applications Revision History
