New Digitally Enhanced Power Analog Controllers From Microchip Offer Digital Power Supply Flexibility With Easy Analog Control Loops

Microchip MCP19118 MCP19119

MCP19118/9 Provide Simple Analog PWM Control and Configurable MCU in Compact Circuit Solution; Industry’s First PMBus Compatible Controller With Up to 40V Operation

Microchip Technology Inc. announced its latest Digitally Enhanced Power Analog (DEPA) controllers—the MCP19118 and MCP19119 (MCP19118/9).  They provide simple yet effective analog PWM control for DC-DC synchronous buck converters up to 40V, with the configurability of a digital MCU.  And they are the industry’s first devices to combine 40V operation and PMBus communication interfaces.  These features enable quick power-conversion circuit development with an analog control loop that is programmable in the integrated 8-bit PIC MCU core’s firmware.  This integration and flexibility is ideal for power-conversion applications, such as battery-charging, LED-driving, USB Power Delivery, point-of-load and automotive power supplies.

Microchip - MCP19118, MCP19119

Along with the rapidly growing popularity of digitally controlled power supplies, due to their configurability for a variety of operating conditions and topologies, power system designers also have an increasing need for the ability to report telemetry and conduct two-way communication (typically for monitoring and fault reporting), via standard communication interfaces such as PMBus.  Additionally, the recently released USB charging specifications (USB Power Delivery and the USB type C connector) include variable charging voltages, which allow for rapid device charging, but add potentially difficult hardware requirements.

By integrating a supervisory microcontroller, the MCP19118/9 devices can create programmable power supplies.  Key system settings—such as switching frequency (100 kHz to 1.6 MHz), current limits and voltage setpoints—can be adjusted on the fly during operation by issuing write commands to the registers in the device.  One design can then be reused for additional applications, using firmware updates to change the configuration, which minimizes design, production and inventory requirements across multiple platforms.  Additionally, the integrated MCU core can be used to monitor other parts of the application to sequence startup operations; intelligently manage faults, under-voltage or brown-out conditions; perform housekeeping functions; adjust power outputs in response to load requirements (such as battery charging or USB port power); and assisting with the module’s external interfaces (monitoring or delivering signals to the user or system).  With integrated linear regulators, PWM generators, ADCs, MOSFET drivers, analog error amplifiers and control-loop compensation, the MCP19118/9 devices provide a very compact circuit solution. Properly implemented, this system is capable of high conversion efficiency and excellent transient response for reduced system power losses, smaller heatsinks and longer battery life in portable applications.  These DEPA devices can also provide data over the I2C interface, using customized SMBus or PMBus compatible commands.

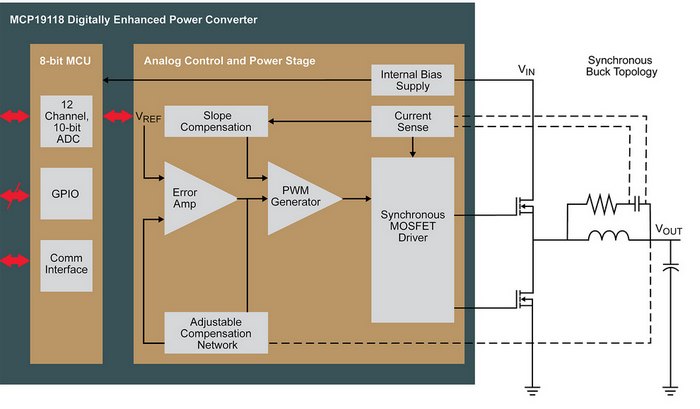

Microchip: Блок-схема микросхемы MCP19118
Click to enlarge

Features:

  • Wide Operating Voltage Range: 4.5-40V
  • Analog Peak-Current Mode Pulse-Width Modulation (PWM) Control
  • Integrated 8-Bit PIC Microcontroller
  • Significant Configurability: Adjustable Analog Compensation, Switching Frequency, UVLO, OVLO, Start-up Behavior, MOSFET Deadtime, Configurable GPIO Pins, Internal Conpensation Network, I2C Communication Interface
  • Integrated Synchronous High- and Low-Side MOSFET Drivers
  • Integrated Current Sense
  • Integrated 10 bit A/D Converter
  • Minimal External Components Needed
  • Custom Algorithm Support

Development Support

MCP19118/9 programming assistance is available via the MCP19111 Design Analyzer and the MCP19111 Graphical User Interface Plug-in for MPLAB X IDE.

Microchip’s full suite of standard development tools also support these MCP19118/9 DEPA controllers, including the MPLAB X Integrated Development Environment (IDE), PICkit 3 (part # PG164130), PICkit Serial Analyzer (part #DV164122), and the MPLAB XC8 Compiler.

Pricing & Availability

The MCP19118 and MCP19119 are both available now for sampling and volume production, with prices starting at $2.92 each in 5,000-unit quantities.  The MCP19118 is offered in a 4×4 mm, 24-pin QFN package, while the MCP19119 is available in a 5×5 mm, 28-pin QFN package.
