2kVAC Isolated μModule Converters, 2.8VIN to 40VIN Meet Information Technology Equipment Safety UL60950

Linear Technology LTM8067 LTM8068

Linear Technology introduces the LTM8067 and LTM8068, DC/DC μModule® regulators with 2 kVAC galvanic isolation. The LTM8067 and LTM8068 include an isolating transformer, control circuitry, power switches and other supporting components in a 9 mm × 11.25 mm × 4.92 mm BGA package. Only one resister, plus input and output capacitors are required to complete the design. Pin creepage and clearance and other features permit these devices to be recognized by UL60950 Information Technology Equipment Safety. The LTM8068 includes an additional low noise linear regulator. Applications include ground loop elimination in systems with sensors or noise sensitive loads in industrial automation, test and measurement equipment.

Linear Technology - LTM8067

The LTM8067 and LTM8068 operate from an input voltage range of 2.8 V to 40 V. Because of flyback topology, each can regulate an output voltage above, below or equal to the input voltage. The LTM8067 has an adjustable output voltage range of 2.5 V to 24 V with up to 450 mA load current ability. The LTM8068, with a low noise linear regulator at its output, has an output voltage range of 1.2 V to 18 V. The linear regulator reduces the output voltage ripple to 20 μVRMS at 300 mA, improving the noise performance in powering high accuracy signal conditioning and mixed signal ICs.

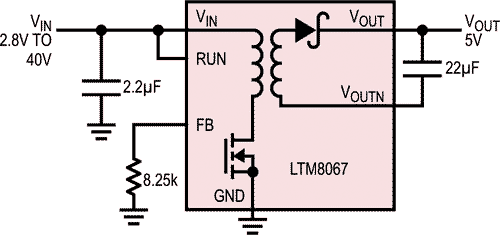

2kVAC Isolated μModule Regulator
2kVAC Isolated μModule Regulator.

The LTM8067 and LTM8068 operate from –40°C to 125 °C. 1,000-piece pricing starts at $10.90 each.

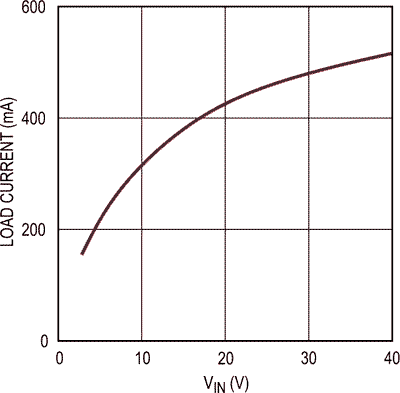

Maximum LTM8067 Output Current vs VIN
Maximum LTM8067 Output Current vs VIN.

Summary of Features: LTM8067 & LTM8068

  • 2 kVAC Isolated μModule® Converter (Tested 3 kV DC)
  • UL60950 Recognized File 464570
  • Wide Input Voltage Range: 2.8 V to 40 V
  • Wide Output Voltage Range: 2.5 V to 24 V (LTM8067)
  • Up to 450 mA Output Current (VIN = 24 V, VOUT = 5 V)
  • Low Noise Linear Regulator (LTM8068 only)
    • Voltage Range: 1.2 V to 18 V
    • Low Noise: 20 μVRMS
    • Output Current: up to 300 mA
  • Low Profile 9 mm × 11.25 mm × 4.92 mm BGA Package
