ADI 72V Hybrid Step-Down DC/DC Controller Reduces Solution Size by 50% Compared to Traditional Architectures

Analog Devices LTC7821

Analog Devices announces the Power by Linear™ LTC7821, an industry first hybrid step-down synchronous controller that merges a switched capacitor circuit with a synchronous step-down controller, enabling up to a 50% reduction in DC/DC converter solution size compared to traditional step-down solutions. This improvement is enabled by a 3X higher switching frequency without compromising efficiency. Alternatively, when operating at the same frequency, an LTC7821 based solution can provide up to a 3% higher efficiency. Other benefits include low EMI and reduced MOSFET stress due to a soft-switched front end, ideal for next generation non-isolated intermediate bus applications in power distribution, datacom and telecom as well as emerging 48 V automotive systems.

Analog Devices - LTC7821

The LTC7821 operates over a 10 V to 72 V (80 V abs max) input voltage range and can produce an output voltage from 0.9 V to 33.5 V with currents in multiple 10s of amps, depending on the choice of external components. In a typical 48 V to 12 V/20 A application, an efficiency of 97% is attainable with the LTC7821 switching at 500 kHz. The same efficiency can only be achieved in a traditional synchronous step-down converter by switching at one-third the operating frequency, resulting in the use of much larger magnetics and output filter components. External MOSFETs switch at a fixed frequency programmable from 200 kHz to 1.5 MHz. The LTC7821’s powerful 1 Ω N-channel MOSFET gate drivers maximize efficiency and can drive multiple MOSFETs in parallel for higher power applications. Due to its current mode control architecture, multiple LTC7821’s can be operated in a parallel, multiphase configuration with excellent current sharing to enable much higher power applications.

Typical Application

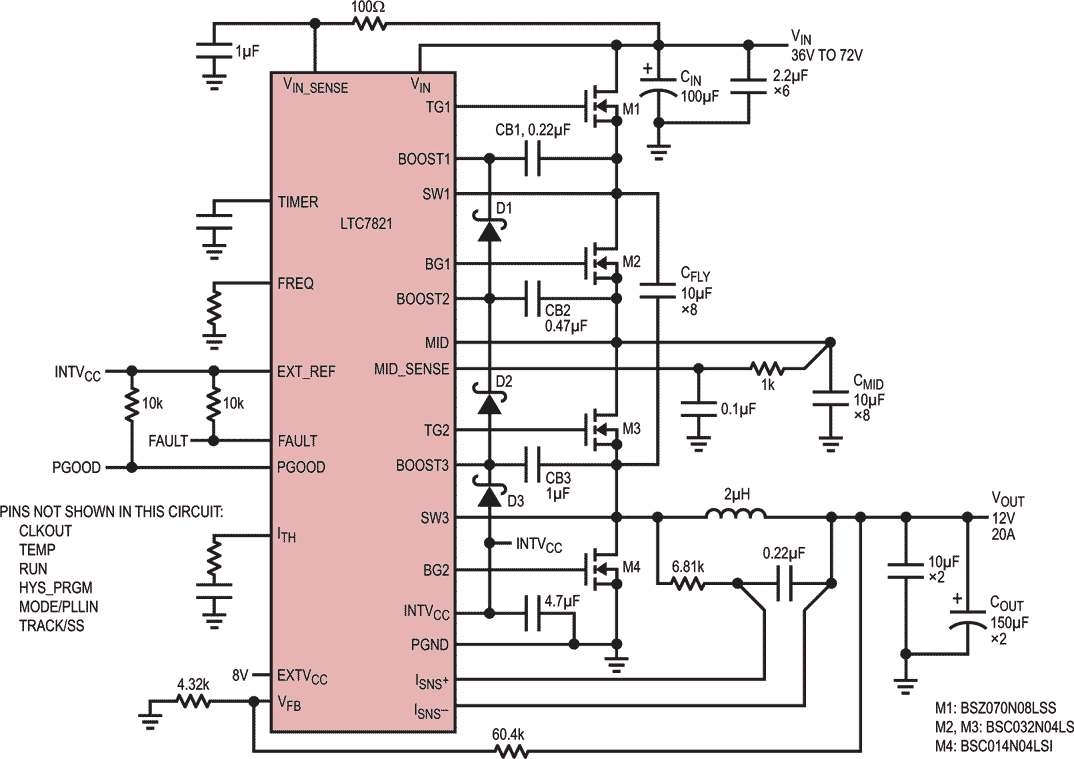

Typical Application.

The LTC7821 implements many proprietary protection features for robust performance in a wide range of applications. An LTC7821-based design eliminates the inrush current typically associated with switched capacitor circuits by pre-balancing the capacitors during start-up. The LTC7821 also monitors system voltage, current and temperature for faults, and uses a sense resistor for overcurrent protection. It stops switching and pulls the /FAULT pin low when a fault condition occurs. An onboard timer can be set for appropriate restart/retry times. The EXTVCC pin enables the LTC7821 to be powered from the lower voltage output of the converter or other available source up to 40 V, reducing power dissipation and improving efficiency. Additional features include ±1% output voltage accuracy over temperature, a clock output for multiphase operation, a power good output signal, short-circuit protection, monotonic output voltage start-up, optional external reference, undervoltage lockout and internal charge balance circuitry.

Efficiency at Various VIN for VOUT = 12 V

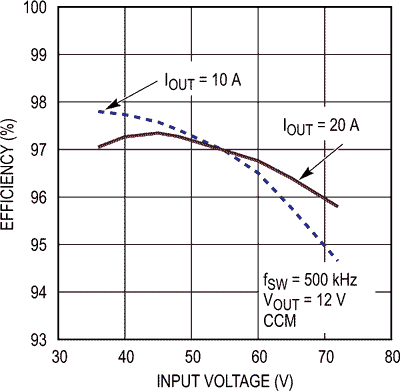

Efficiency at Various VIN for VOUT = 12 V.

The LTC7821 is available in a 5 mm × 5 mm QFN-32 package. Extended and industrial temperature versions are available from –40 to 125 °C.

Summary of Features: LTC7821

  • Wide VIN Range: 10 V to 72 V, 80 V Abs Max
  • VOUT Range: 0.9 V to 33.5 V
  • Up to 50% Reduction in Solution Size
  • Soft Switching for Low EMI and Reduced MOSFET Stress
  • Up to 97% Efficiency at 500 kHz
  • PLL Fixed Frequency from 200 kHz to 1.5 MHz
  • Clock Output for Multiphase Operation
  • Powerful Quad N-Channel MOSFET Gate Drivers
  • Input Current Sensing & Overcurrent Protection
  • Short-Circuit Protection with Programmable Timer & Retry
  • Power Good Output Signal

Pricing & Availability

Product Production
Price Each
Per 1,000
LTC7821 Now Starts at $5.20 5 mm × 5 mm QFN-32

1-4 Layer PCBs $2
