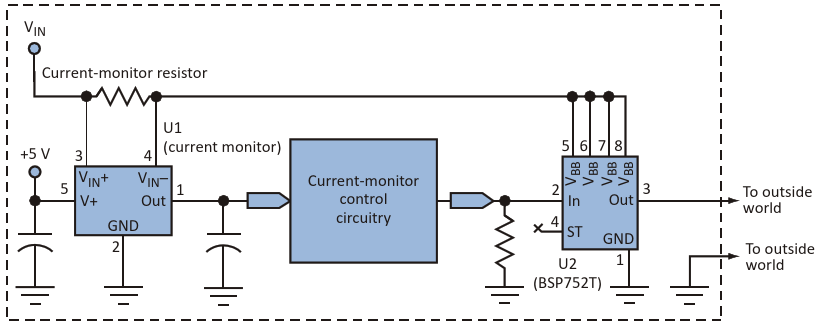

To protect the current-monitor resistor from a field-wiring error that could cause a short circuit, this circuit feeds the current from the resistor to a self-protected high-side driver's V_BB input

Authors	Bob Urman
Main Document	Article «Unconventional Use Of An Output Driver Protects Current Monitor»
Description	Figure 1
File Format / Size	PDF / 29 Kb
Document Language	English

Slices

To protect the current-monitor resistor from a field-wiring error that could cause a short circuit, this circuit feeds the current from the resistor to a self-protected high-side driver's VBB input
