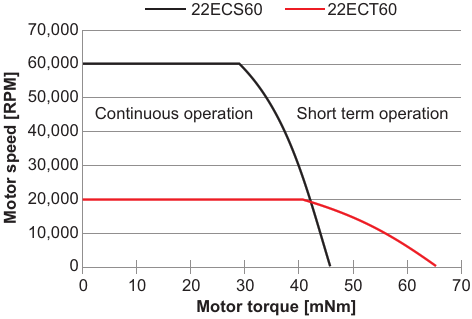

This graph shows the power curves, including losses, of two Portescap motors with different number of poles operating continuously in air at 25 °C. The four-pole motor, a torque-optimized 22ECT60 (red), quickly loses torque capabilities as speed incre
| Authors | Samuel Klein |
| Main Document | Article «Understanding losses in BLDC motors» |
| Description | Figure 6 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Understanding losses in BLDC motors»
- Figure 4. Hysteresis loop - the path of magnetization and demagnetization
- Figure 5. This graph shows the effect of iron losses on the power curve of a BLDC motor, the Portescap 16ECS36
- Figure 6. This graph shows the power curves, including losses, of two Portescap motors with different number of poles operating continuously in air at 25 °C. The four-pole motor, a torque-optimized 22ECT60 (red), quickly loses torque capabilities as speed incre
