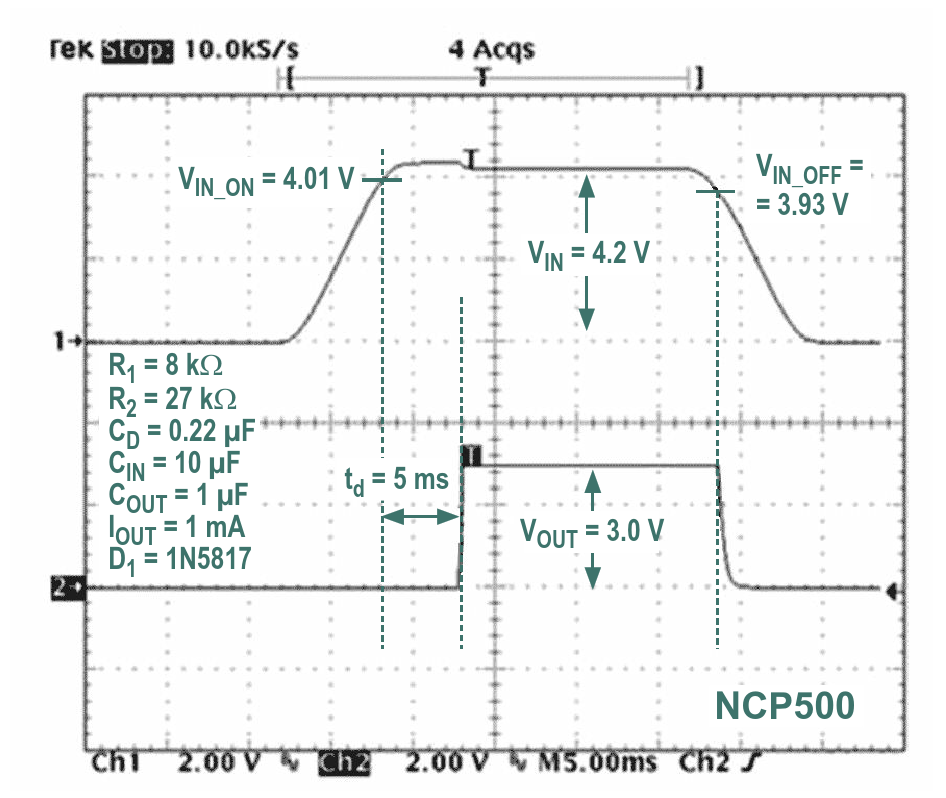

The addition of R2 in Figure 3 solves the falling edge problem, and shutdown occurs immediately after the input voltage drops too low. The regulator's output switches on only after sufficient voltage is present at its input

AuthorsWilliam Lepkowski
Main DocumentArticle «Low-dropout linear regulators double as voltage-supervisor circuits»
DescriptionFigure 5
File Format / SizePDF / 74 Kb
Document Languageenglish

The addition of R2 in Figure 3 solves the falling edge problem, and shutdown occurs immediately after the input voltage drops too low The regulator's output switches on only after sufficient voltage is present at its input
