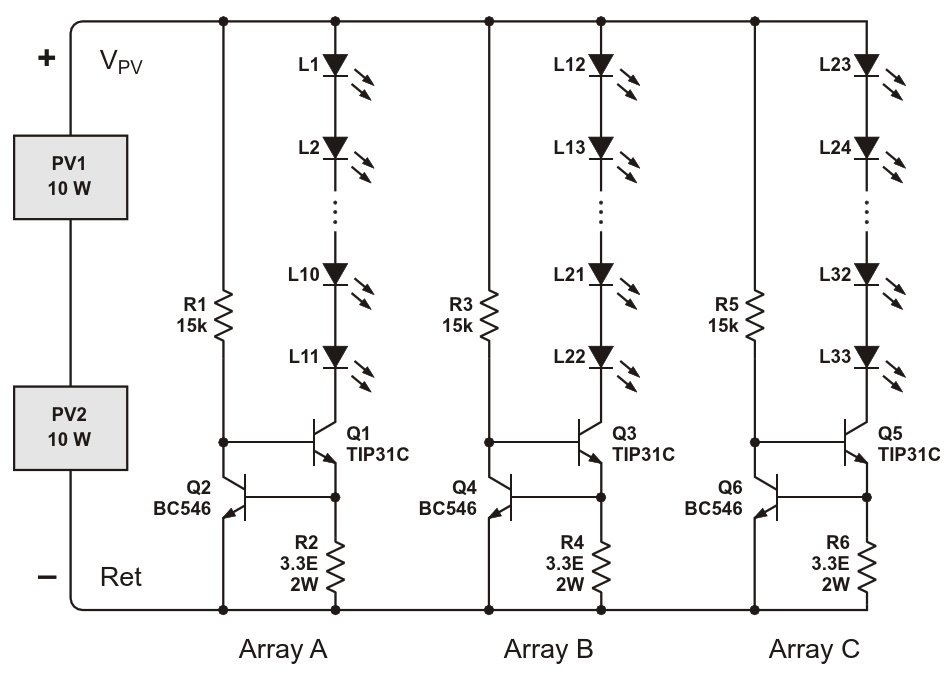

Here is the schematic of a 20 W solar day lamp with active current limiting
| Authors | Vijay Deshpande |
| Main Document | Article «Solar day lamp designs use passive and active current-limiting circuits» |
| Description | Figure 4 |
| File Format / Size | PDF / 27 Kb |
| Document Language | English |
