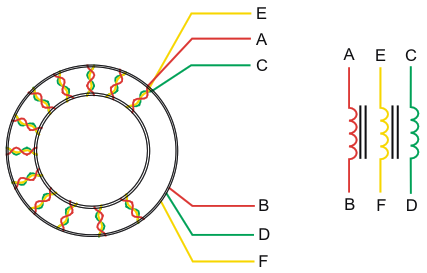

Transformer T1 from Figure 1 consists of three windings on a toroidal ferrite core. For ease of assembly, twist three wires of different colors in a bundle to form the windings
| Authors | Jim McLucas |
| Main Document | Article «Triangle waves drive simple frequency doubler» |
| Description | Figure 2 |
| File Format / Size | PDF / 28 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Triangle waves drive simple frequency doubler»
- Figure 1. A full-wave rectifier, buffer, and lowpass filter produce a sine-wave output at twice the frequency of a triangular-wave input
- Figure 2. Transformer T1 from Figure 1 consists of three windings on a toroidal ferrite core. For ease of assembly, twist three wires of different colors in a bundle to form the windings
