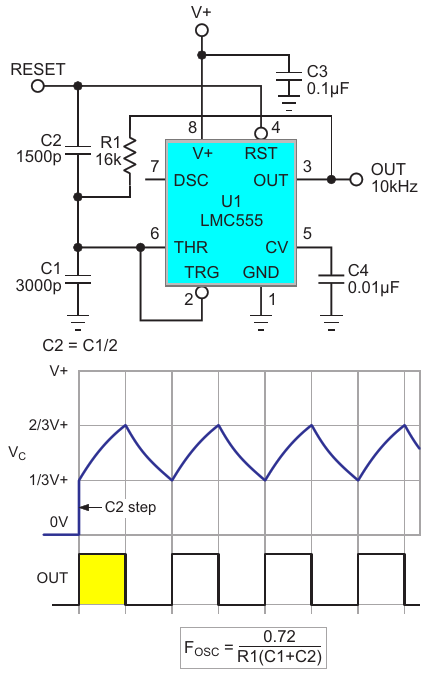

C2 charge injection fix applied to CMOS 50:50 square wave oscillator
| Authors | Stephen Woodward |
| Main Document | Article «More gated 555 astable multivibrators hit the ground running» |
| Description | Figure 4 |
| File Format / Size | PDF / 15 Kb |
| Document Language | English |
