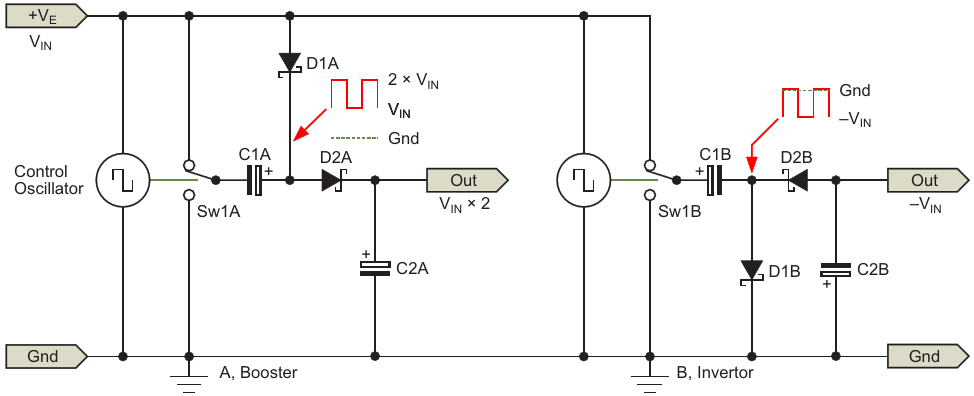

Boost (A) and invert (B) circuit operating principles
| Authors | Rod Elliott |
| Main Document | Article «Simple, low-voltage charge-pumps. Part 1 - Operating principle» |
| Description | Figure 1 |
| File Format / Size | PDF / 12 Kb |
| Document Language | English |
Other Materials from the Main Document
- Article «Simple, low-voltage charge-pumps. Part 1 - Operating principle»
- Figure 1. Boost (A) and invert (B) circuit operating principles
- Figure 2. Boost circuit: 12 V in, 24 V out (nominal)
- Figure 3. Inverting circuit: 12 V in, -12 V out (nominal)
