High speed SW and Low VCE(sat) Application of the IGBT NGTB30N60L2WG

ON Semiconductor NGTB30N60L2WG

Application Note ANDNGTB30N60L2WG/D
June 2014

NGTB30N60L2WG newly developed is one of FS2-IGBT series, which enables fast switching and low VCE(sat) at the same time. It is considered common to take the absolute maximum Ic rating as reference when selecting a device. However, actually the values of VCE(sat) and Icpeak(=Icp) described in electrical characteristics need to be focused. VCE(sat) is a critical value that directly affect the operating efficiency of the equipment, while Icp is a value that indicates the actually usable area. So, VCE(sat) and Icp are important parameters for selecting a device.

pdfDownload Application Note ANDNGTB30N60L2WG/D (356 Kb)

Related datasheets:

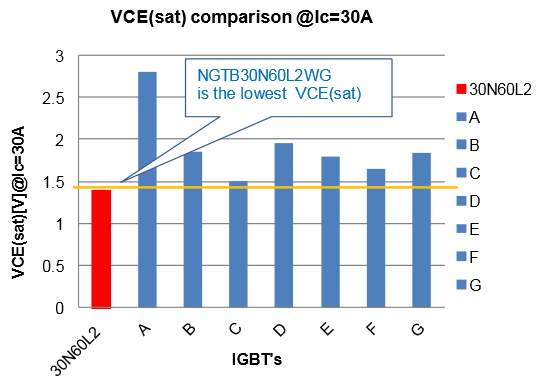

VCE(sat) comparison result among NGTB30N60L2WG and competitors Ic=30A

VCE(sat) comparison result among NGTB30N60L2WG and competitors @ Ic=30A
